Axis Q8741-LE
from $23,471.25 (incl. GST)
POSMarket SKU: Z14919
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.
Axis' Bispectral PTZ Network Camera is a thermal and visual surveillance in one
Product Overview

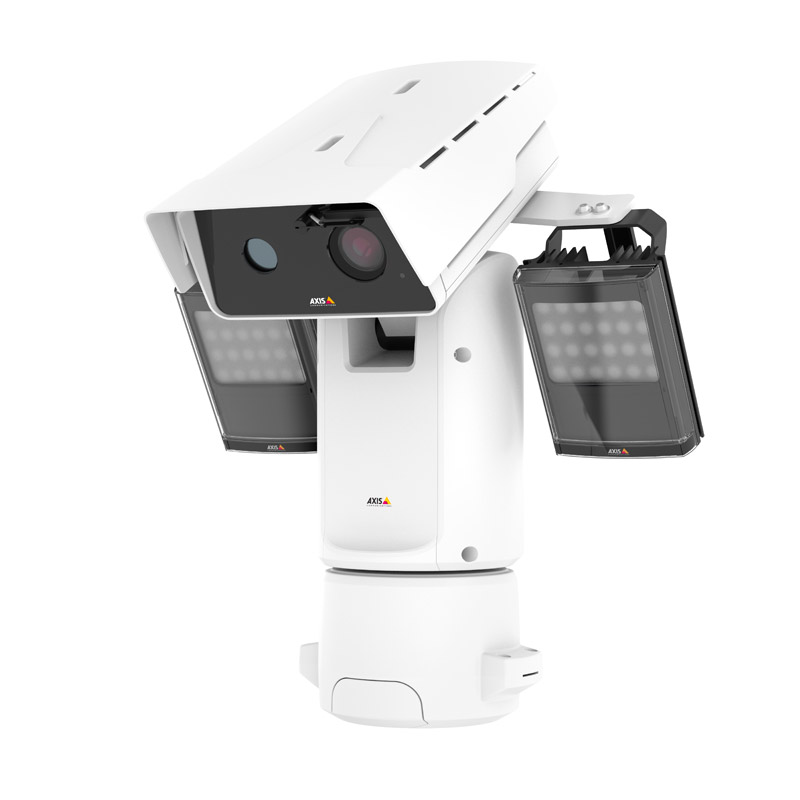

The Axis Q8741-LE Bispectral PTZ Network Camera is a high-end combination of thermal camera with outstanding contrast for reliable detection and verification around-the-clock and in all weather and light conditions and an exceptionally light-sensitive visual camera for identification purposes. Designed for continuous, jerk-free pan and tilt movements, the camera includes long-range IR illumination to enhance identification even in complete darkness or challenging mixed lighting conditions. Easy to control and install with one IP address and multiple mounting options. The camera offers a tilt view of 45deg above the horizon, and when column-mounted, it enables a 360deg unobstructed field of view.
The Q8741-LE is designed for continuous, jerk-free pan-and-tilt movement by allowing the operator to choose between super-fast and slow movement. This camera is easy to control and install with one IP address, and comes with multiple mounting options. An internal microSD card slot allows onboard storage of footage and an SFP slot supports long-distance fiber-optic connection. The camera is IP66 rated featuring a long-life silicone wiper for outdoor use and can withstand high winds up to 90 mph.
FEATURES
The Q8741-LE is designed for continuous, jerk-free pan-and-tilt movement by allowing the operator to choose between super-fast and slow movement. This camera is easy to control and install with one IP address, and comes with multiple mounting options. An internal microSD card slot allows onboard storage of footage and an SFP slot supports long-distance fiber-optic connection. The camera is IP66 rated featuring a long-life silicone wiper for outdoor use and can withstand high winds up to 90 mph.
FEATURES
- Reliable detection, fast verification and identification
- Bispectral video streams
- Easy to install with one IP address
- Responsive positioning 360deg endless pan and 135deg from ground to sky
- Long-distance network connection
Product Specifications
| Camera | |
| Image Sensor | Visual: 1/2.8" progressive scan CMOS Thermal: Uncooled microbolometer |
| Lens | Visual: 4.3-129mm, f/1.6-4.7 |
| Autofocus and auto-iris | Thermal: 35mm, f/1.2 Near Focus Distance: 108' / 33 m |
| Field of View | Visual: Horizontal: 65.6 to 2° Vertical: 39 to 1.2° Thermal: Horizontal: 10.5° Vertical: 7.9° |
| Day & Night | Visual: Automatic switching from IR cut filter to IR pass filter in night mode |
| Minimum Illumination | Color: 0.2 lux at 30 IRE f/1.6 B&W: 0.01 lux at 30 IRE f/1.6 Color: 0.25 lux at 50 IRE f/1.6 B&W: 0.02 lux at 50 IRE f/1.6 B&W: 0 lux with IR illumination |
| Sensitivity | Thermal: NETD <70 mK |
| Shutter Speed | Visual: 1/66,500 to 2 sec |
| PTZ | Pan: 360°at 0.05 to 120°/s Tilt: -90 to 45°at 0.05 to 65°/s Jerk-Free Movements at Low Speed: ±0.01°/s (at 0.05°/s) Preset Accuracy: 0.05° |
| Optical Zoom | 30x |
| Digital Zoom | 12x |
| PTZ Control | 256 preset positions, guard tour, control queue, focus window, on-screen directional indicator, de-icing control, and dynamic load balancing |
| IR Illumination Distance: | Without Diverging Lenses 10x 10°: 1640' /500 m With Diverging Lenses 35 x 10°: 787' / 240 m With Diverging Lenses 60 x 25°: 443' / 135 m With Diverging Lenses 80 x 30°: 328' / 100 m With Diverging Lenses 120 x 50°: 213 / 65 m Power: 96 W Wavelength: 850 nm Illumination intensity adjustable during installation Illumination synchronized with day/night mode |
| Video | |
| Video Compression | H.264 (MPEG-4 Part 10/AVC), Baseline, Main, and High Profiles MJPEG |
| Resolution | Visual: 1920 x 1080 at 30 fps to 320 x 180 Thermal: 384 x 288 at 8.3 fps, can be scaled up to 768 x 576 Pixel Size: 17 µm |
| Video Streaming | Axis Zipstream technology in H.264 Controllable frame rate and bandwidth VBR/MBR H.264 Multiple, individually configurable streams in H.264 and MJPEG |
| Image Settings | Visual: Compression, color, brightness, sharpness, contrast, local contrast, white balance, exposure control, exposure zones, automatic backlight compensation, fine tuning of behavior at low light, 120 dB WDR - forensic capture, manual shutter time, text and image overlay, 20 individual 3D privacy masks. Thermal: Compression, brightness, sharpness, contrast, local contrast, exposure control, exposure zones, text and image overlay |
| Network | |
| Security | Password protection, IP address filtering, HTTPS encryption, network fail-over link, IEEE 802.1X network access control, digest authentication, user access log, centralized certificate management |
| Supported Protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP |
| System Integration | |
| API | Open API for software integration, including VAPIX and AXIS Camera Application Platform AXIS Video Hosting System (AVHS) ONVIF Profile S and G |
| Analytics | Included: AXIS Video Motion Detection Supported: AXIS Perimeter Defender, AXIS Camera Application |
| Event Triggers | Analytics, temperature, external input, time scheduled, edge storage events, PTZ preset |
| Event Actions | Record Video: SD card and network share Upload of Images or Video Clips: FTP, SFTP, HTTP, HTTPS, network share, and email Pre- and post-alarm video or image buffering for recording or upload Notification: Email, HTTP, HTTPS, TCP, and SNMP trap PTZ: PTZ preset, start/stop guard tour Overlay text, external output activation, wiper sequence, washer sequence |
| Data Streaming | Event data |
| Built-In Installation Aids | Pixel counter |
| General | |
| Casing | IP66- and NEMA 4X-rated powder coated aluminum Color: White NCS S 1002-B Visual Sensor Front Window: Glass Thermal Sensor Front Window: Germanium Long-life silicone wiper Weathershield: High-impact UV-stabilized thermoplastic |
| Sustainability | PVC free |
| Memory | 512 MB RAM, 512 MB Flash |
| Power | 24 VAC/VDC With Illumination: Typical 64 W, max 300 W Without Illumination: Typical 16 W, max 204 W TVS 2000V, surge protection, voltage transient protection I/O Connector: Output power 12 VDC, max load 50 mA |
| Connectors | SFP slot (SFP module not included) RJ45 10Base-T/100Base-TX/1000Base-T network connector |
| Power connector | I/O Connector: 6-pin terminal block with four configurable inputs/outputs |
| Storage | Support for microSD/microSDHC/microSDXC card (included) Support for SD card encryption Support for recording to network-attached storage (NAS) |
| Video Management Software | AXIS Companion and AXIS Camera Station |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, and Traditional Chinese |
| Operating Temperature | -58 to 131°F / -50 to 55°C Maximum (Intermittent): 149°F / 65°C Arctic Temperature Control: Startup at -40°F / -40°C |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Operating Humidity | 10 to 100% RH |
| Wind Loading | 40 m/s (90 mph) 52 m/s (116 mph) without weathershield EPA0.138 m² |
| Dimensions | 19.5 x 14.0 x 23.0" / 49.5 x 36.0 x 58.2 cm |
| Weight | 41.2 lb / 18.7 kg |
