Axis XF40-Q2901
from $38,446.38 (incl. GST)
POSMarket SKU: Z14882
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.
Axis' Explosion-Protected Temperature Alarm
Camera for detection in hazardous areas.
Product Overview

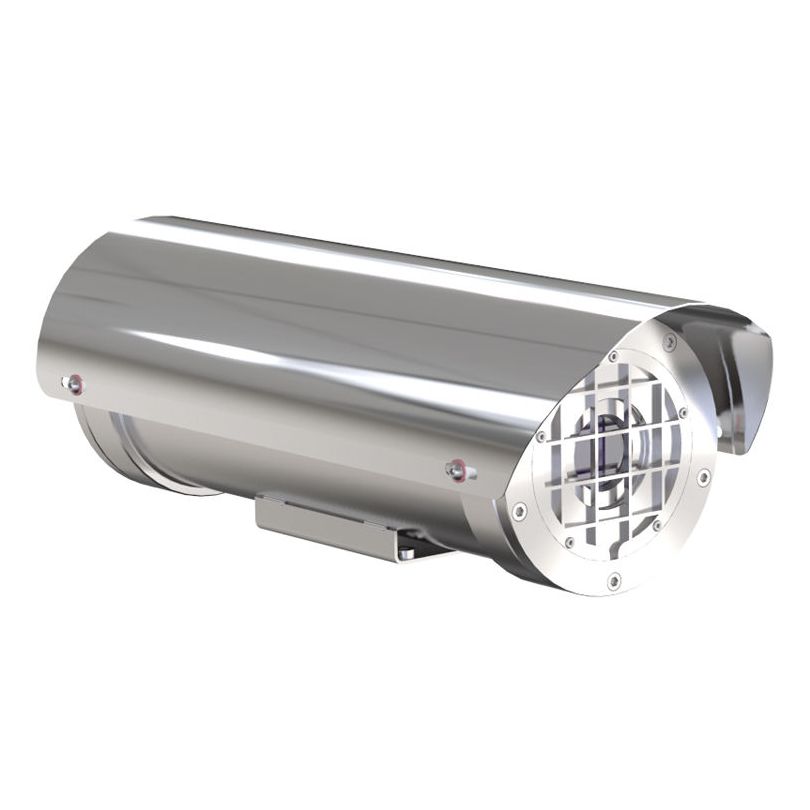

The Axis XF40-Q2901 Explosion-Protected Temperature Alarm Camera is suitable for onshore, offshore, marine and heavy industrial environments. The stainless steel housing is certified for hazardous areas, and prevents any inside sparks or explosions from escaping and igniting vapors, gases, dust or fibres in the surrounding air. Additionally, the camera supports temperature alarm zones triggering alarms based on deviation of the temperature as well as determining the temperature of particular areas. It also allows for easy visualisation of hot spots with isothermal palettes to identify overheated equipment or areas. The network camera offers a high level of integration with other equipment, such as access control and fire alarms.
FEATURES
FEATURES
- Stainless steel (SAE 316L) housing
- 336x256 thermal resolution
- Temperature alarm and isothermal palettes
- Spot temperature reading
- Wide temperature range
Product Specifications
| Camera | |
| Image Sensor | Uncooled microbolometer 336 x 256 |
| Pixel Size: | 17 µm |
| Spectral Range: | 8-14 µm |
| Lens | Athermalized 19mm, f/1.25 Horizontal Field of View: 17° Minimum Focus Distance: 354.3" / 9.5 m |
| Detection Range | The size of a monitored object is recommended to cover at least 10 x 10 pixels in 336 x 256 |
| Sensitivity | NETD <50 mK |
| Thermography | Object Temperature Range: -40 to 1022°F / -40 to 550°C |
| Temperature Accuracy: | Below 212°F / 100°C: ±9°F / ±5°Caccuracy Below 302°F / 150°C: ±5% accuracy Above 302°F / 150°C: ±20% accuracy |
| Video | |
| Compression | H.264 (MPEG-4 Part 10/AVC) baseline, and main profiles MJPEG |
| Resolution | Sensor is 336 x 256 Image can be scaled up to 720 x 576 |
| Frame Rate | Up to 8.3 fps |
| Streaming | 3 individual streams in H.264 and MJPEG, simultaneous, individually configured streams in max resolution at 8.3 fps Controllable frame rate and bandwidth VBR/CBR H.264 |
| Image Settings | Sharpness, automatic gain control, exposure zones, max gain, rotation, palette, isothermal palette, compression, mirroring, text and image overlay, privacy masks |
| Network | |
| Security | Password protection, IP address filtering, HTTPS encryption, digest authentication, user access log, centralized certificate management |
| Supported Protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX and AXIS Camera Application Platform AXIS Video Hosting System (AVHS) with One-Click Connection ONVIF Profiles S and G |
| Analytics | AXIS Video Motion Detection, shock detection Support for AXIS Camera Application Platform |
| Event Triggers | Analytics, temperature detection (6 alarm zones), hardware temperature, edge storage events, time scheduled, motion detection |
| Event Actions | Overlay text, video recording to edge storage, pre- and post-alarm video buffering, send SNMP trap File upload via FTP, SFTP, HTTP, HTTPS network share, and email Notification via email, HTTP, HTTPS, and TCP |
| Data Streaming | Event data |
| Built-In Installation Aids | Pixel counter |
| General | |
| Casing | IP66-, IP67-rated electropolished SAE 316L stainless steel casing for maximum corrosion protection Germanium protective window |
| Memory | 256 MB RAM / 128 flash |
| Power | Max Consumption: 24 VAC / 28 W |
| Connectors | Three 3/4" NPT conduit entries |
| Storage | Support for microSD/SDHC/SDXC card Support for recording to network-attached storage (NAS) |
| Operating Conditions | -58 to 158°F / -50 to 70°C Humidity 10-100% RH (condensing) |
| Storage Conditions | -40 to 149°F / -40 to 65°C |
| Video Management Software | AXIS Companion, AXIS Camera Station, video management software from Axis' Application Development Partners |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
| Dimensions | 6.5 x 7 x 19" / 165 x 176 x 480 mm |
| Weight | 31 lb / 14 kg |
