Axis XP40-Q1942
from $50,587.63 (incl. GST)
POSMarket SKU: Z14885
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.
Axis' Explosion-Protected PT Thermal Network
Camera for hazardous areas.
Product Overview

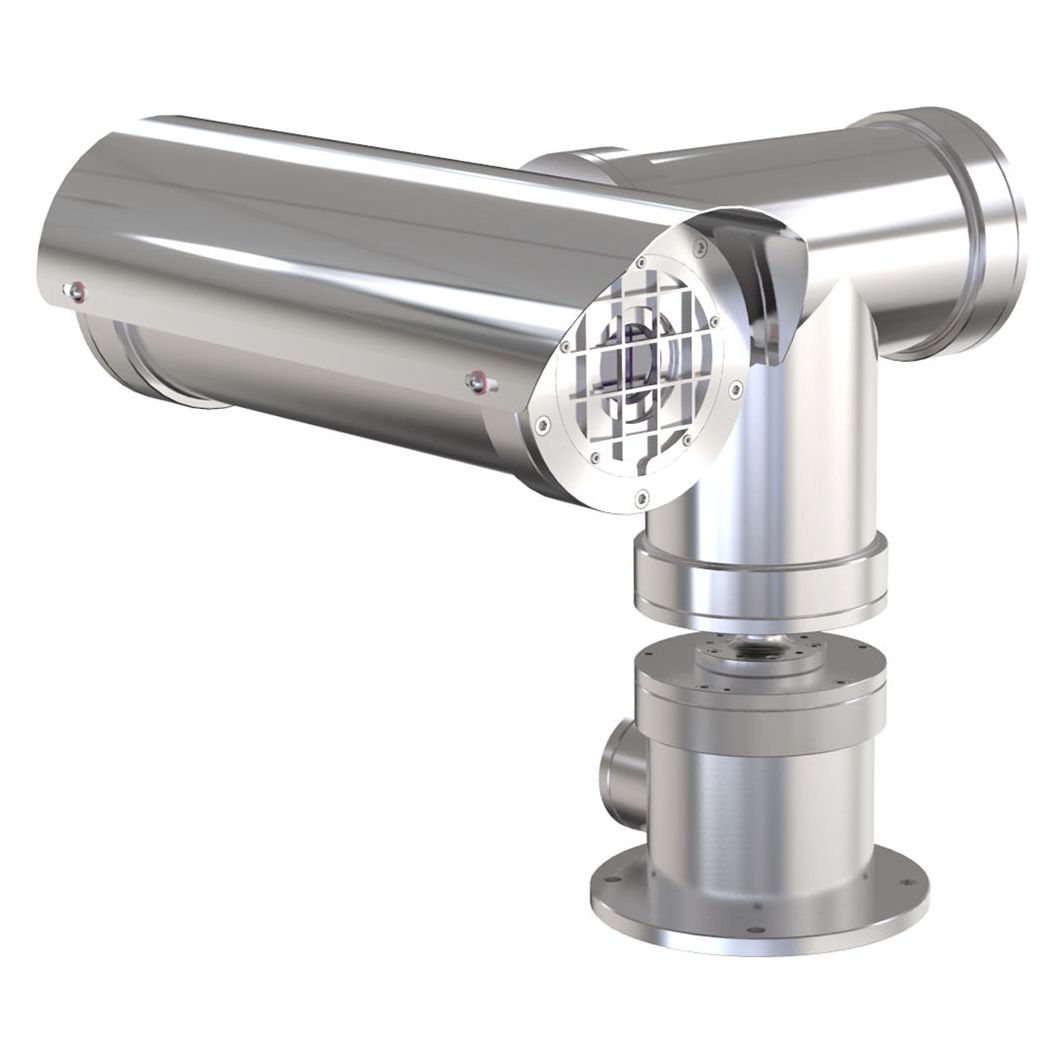

The Axis XP40-Q1942 Explosion-Protected PT Thermal Network Camera helps you monitor employee safety and detect the unauthorized individuals in hazardous areas. With its heavy-duty stainless-steel housing, the AXIS XF40-Q1942 is certified for explosion-prone applications.
The XP40-Q1942 Explosion-Protected Pan/Tilt Outdoor Thermal Network Bullet Camera from Axis Communications is equipped with an uncooled microbolometer image sensor to capture 640 x 480 resolution video at up to 8.3 fps that is scalable to up to 800 x 600 resolution. The 19mm fixed lens has a 32°horizontal field of view. Additionally, this device delivers 360°endless panning, and a +/-90° tilting range. A 64GB AXIS Surveillance microSDXC card is included for edge storage.
Axis Zipstream technology compresses video footage in H.264, reducing bandwidth usage and storage requirements. In addition, video can be transmitted in at least three H.264 and MJPEG streams, and bandwidth and frame rates are controllable for further customization of your network. Once configured, your surveillance network is secured with safety features that include password protection, IP address filtering, HTTPS encryption, digest authentication, user access logging, and centralized certificate management.
FEATURES
The XP40-Q1942 Explosion-Protected Pan/Tilt Outdoor Thermal Network Bullet Camera from Axis Communications is equipped with an uncooled microbolometer image sensor to capture 640 x 480 resolution video at up to 8.3 fps that is scalable to up to 800 x 600 resolution. The 19mm fixed lens has a 32°horizontal field of view. Additionally, this device delivers 360°endless panning, and a +/-90° tilting range. A 64GB AXIS Surveillance microSDXC card is included for edge storage.
Axis Zipstream technology compresses video footage in H.264, reducing bandwidth usage and storage requirements. In addition, video can be transmitted in at least three H.264 and MJPEG streams, and bandwidth and frame rates are controllable for further customization of your network. Once configured, your surveillance network is secured with safety features that include password protection, IP address filtering, HTTPS encryption, digest authentication, user access logging, and centralized certificate management.
FEATURES
- 360deg pan and 90deg tilt
- VGA 640x480
- Electronic image stabilisation
- Certified for hazardous applications
- Supports advanced analytics
Product Specifications
| Camera | |
| Image Sensor | Uncooled microbolometer 640 x 480 |
| Pixel Size: | 17 µm Spectral Range: 8-14 µm |
| Lens | Athermalized 19mm, f/1.23 Horizontal Field of View: 32° |
| Sensitivity NETD <50mK Pan/Tilt | Pan: 360° endless, 0.1-45°/sec Tilt:±90°, 0.1-24°/sec 64 preset positions, preset accuracy±0.1°, guard tour, control queue |
| Video | |
| Compression | H.264 (MPEG-4 Part 10/AVC) baseline, and main profiles MJPEG |
| Resolution | 640 x 480 Image can be scaled up to 800 x 600 (SVGA) |
| Frame Rate | Up to 8.3 fps |
| Streaming | At least three H.264 and MJPEG streams, simultaneous and individually configured in max. Resolution in full frame rate Axis Zipstream technology in H.264 Controllable frame rate and bandwidth VBR/CBR H.264 |
| Image Settings | Compression, mirroring of images, rotation, multiple palettes, brightness, sharpness, contrast, electronic image stabilization, automatic gain control, exposure zone, max gain, text and image overlay, privacy mask |
| Network | |
| Security | Password protection, IP address filtering, HTTPS encryption, digest authentication, user access log, centralized certificate management |
| Supported Protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX and AXIS Camera Application Platform AXIS Video Hosting System (AVHS) with One-Click Connection ONVIF Profiles S and G |
| Analytics | AXIS Video Motion Detection, shock detection Support for AXIS Camera Application Platform |
| Event Triggers | Analytics, temperature, time scheduled, edge storage events |
| Event Actions | Overlay text, video recording to edge storage, pre- and post-alarm video buffering, send SNMP trap File upload via FTP, SFTP, HTTP, HTTPS network share, and email Notification via email, HTTP, HTTPS, and TCP |
| Data Streaming | Event data |
| Built-In Installation Aids | Pixel counter |
| General | |
| Casing | IP66-, IP67-rated electropolished SAE 316L stainless steel casing for maximum corrosion protection Germanium protective window |
| Memory | 512 MB RAM, 256 flash |
| Power | Max Consumption: 24 VAC / 100 W |
| Connectors | Two 3/4" NPT conduit entries |
| Storage | Support for microSD/SDHC/SDXC card Support for recording to network-attached storage (NAS) |
| Operating Temperature | -58 to 158°F / -50 to 70°C |
| Operating Humidity | 10-100% RH (condensing) |
| Storage Temperature | -40 to 149°F / -40 to 65°C |
| Video Management Software | AXIS Companion, AXIS Camera Station, video management software from Axis' Application Development Partners |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
| Dimensions | 18.7 x 20.2 x 19" / 475 x 512 x 480 mm |
| Weight | 110 lb / 50 kg |
