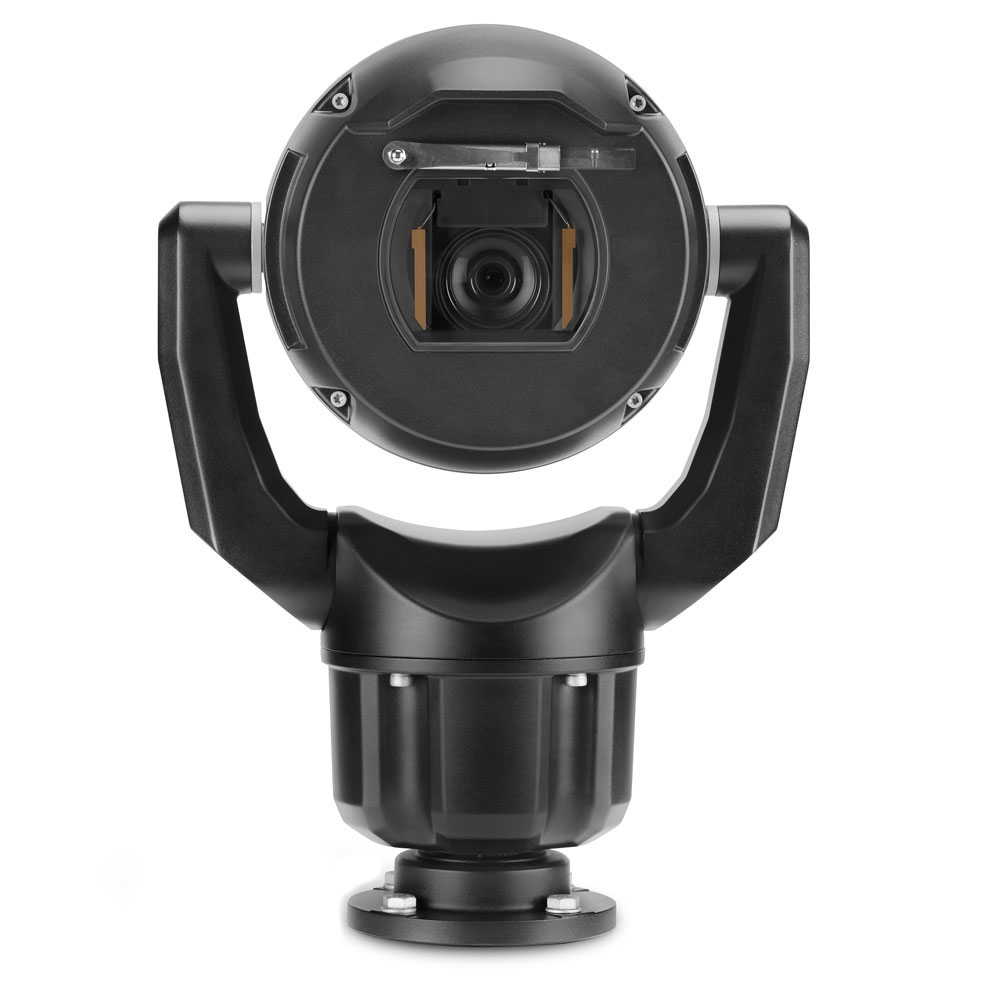

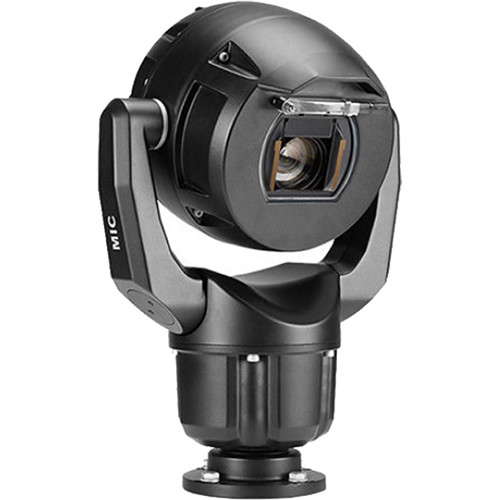

Bosch MIC starlight 7100i - Enhanced
POSMarket SKU: Z15272
This model is available in 3 different configurations. Select a configuration below or contact our experts on 1300 737 998.
The PTZ 2MP HDR 30x IP68 is the enhanced ruggedised PTZ camera version with 1080p, 30x, starlight imaging,
defroster, SD card slot and Sand finish.
Product Overview
The camera's ruggedized design meets customer expectations in demanding environments that exceed the capabilities of conventional IP cameras. Even in installations subject to harsh shock/vibration conditions and/or extreme weather, the camera provides high-quality video images.
The camera is the ideal choice for:
- Transportation: highways, bridges/tunnels, and ports
- Critical infrastructure: power generation/ transmission, refineries/pipelines, and mining
- High-security: government facilities and data centers
- Mission-critical applications involving harsh environments that require high-resolution imaging
- Complex scenes with many details under any lighting condition
- Installations where downtime is undesired because of high service costs
- Starlight camera technology with excellent low-light sensitivity (color = 0.0047 lx) and High dynamic range (120 dB) (to see details in bright and dark areas simultaneously)
- Exceptional strength and ruggedness for any outdoor application including traffic monitoring (bridges, tunnels, or highways), perimeter protection, city surveillance, and mining
- Built-in Camera Trainer to train the camera to recognize user-specified target objects, such as moving and non-moving objects, to alert operators of unusual scene activity
- Edge intelligence with Intelligent Tracking and object detection even when the camera is moving
- Optional illuminator with multispectral LEDs that distribute IR light uniformly in the field (up to 550 m (1804.50 ft)) to avoid dark spots or an over-illuminated scene
Product Specifications
| MIC starlight 7100i - Enhanced White/black | |
| Camera functionality | Intelligent dynamic noise reduction |
| Color | White |
| Ethernet type | 10/100BASE-T |
| Host interface | RS485 |
| Input voltage (VAC) | 21 - 30 VAC |
| Internal storage | Memory card SD |
| Iris control | Automatic (with manual override) |
| Lens aperture (/F) | 1.50 - 4.80 °F |
| Lens focal length (mm) | 6.60 - 198 mm |
| Lens zoom (x) | 12 x |
| Material | Cast solid aluminum |
| Minimum illumination in color (lx) | 0.0047 lx |
| Minimum illumination in monochrome (lx) | 0.0013 lx |
| Operating temperature | -40 - 65 °C |
| Pan range | 0° - 360°continuous |
| Pre-position accuracy (average) | 0.05 ° |
| Protocols / standards | IPv4 |
| Software compatibility | Web browser |
| Storage temperature | -45 - 70 °C |
| Video compression | H.264 (ISO/IEC 14496-10) |
| Weight (kg) | 8.70 kg |
