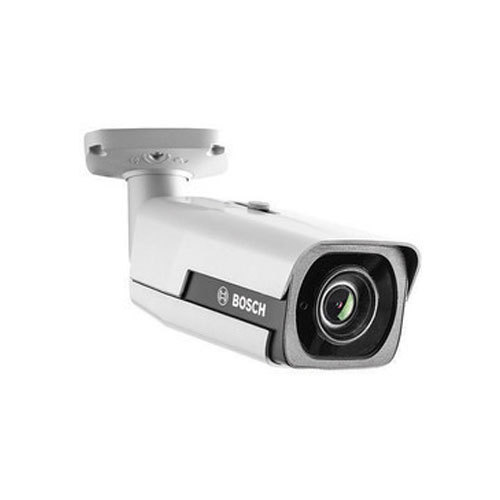

Bosch NBE-6502-AL

$1,488.56 (incl. GST)

POSMarket SKU: Z15287

NBE-6502-AL: 2MP Outdoor Motorised VF Bullet Starlight Camera, EVA, IR, H.265, WDR, IP67, 2.8-12mm

Is a Bullet 2MP HDR 2.8-12mm auto IP67 IK10
Robust IP bullet camera with infrared illumination for
outdoor HD surveillance with H.265 and Essential
Video Analytics.

Product Overview

The Bosch NBE-6502-AL / BOS-NBE-6502-AL 1080p infrared bullet from Bosch is a professional surveillance camera that provides high quality HD images for demanding security and surveillance network requirements. This robust bullet camera is a true day/night camera offering excellent performance day or night. The built-in infrared LEDs provides quality night time monitoring with 60m IR viewing distance in darkness.

This Outdoor bullet camera with Automatic Varifocal lens is made of robust aluminum housing provides high installation flexibility. The camera resists both water and dust ingress in tough environments and is rated to IP67 standards. The 2.8 to 12 mm AVF (Automatic Varifocal) lens allows you to choose the coverage area remotely. The automatic zoom/focus lens wizard makes it easy for an installer to accurately zoom and focus the camera for both day and night operation. The wizard is activated from the PC or from the on-board camera push button making it easy to choose the workflow that suits best.

The AVF (Automatic Varifocal) feature means that the zoom can be changed without opening the camera. The automatic motorized zoom/focus adjustment with 1:1 pixel mapping ensures the camera is always accurately focused.

FEATURES
  • Starlight camera technology with excellent low-light performance
  • Easy to install with auto zoom/focus lens, wizard and pre-configured modes
  • Fully configurable H.265 multi-streaming
  • Built-in Essential Video Analytics to trigger relevant alerts and quickly retrieve data
  • High Dynamic Range mode (146 dB) to see details in bright and dark areas simultaneously

Product Specifications

6000i
Camera
Sensor 2 MP 1/2.8" CMOS
Focal Length 2.8 to 12mm
Maximum Aperture f/1.4 - f/360
Zoom Optical: 4.3x
Lens Field of View Horizontal: 100 to 33°
Vertical: 52 to 19°
IR Cut Filter Mechanical
Day/Night True
Minimum Illumination Color: 0.0225 Lux
B&W: 0 Lux
Shutter Speed 1/15,000 to 1/30 Seconds
Video
Streaming Resolution 1920 x 1080 at 60 fps (0.712 Mb/s H.265)
Supported Video Compression H.264, H.265, MJPEG
Multi-View Streaming Yes, 4 Streams
Audio
1- or 2-Way Audio Two-Way
Audio Formats AAC, G.711, L16
Networking
Security Centralized Certificate Management, Digest Authentication, HTTPS, IEEE 802.1X, Password Protection
Supported Protocols APIPA, ARP, CHAP, DDNS, DHCP, DNS, DiffServ, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, NTP, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SNTP, SOAP, TCP, UDP, UPnP, iSCSI
System Integration
Application Programming Interface (API) ONVIF Profiles S and G
GB/T 28181
Analytics Tamper Detection
Motion Detection

Essential Video Analytics: Rule-Based Alarms and Tracking, Line Crossing, Enter/Leave Field, Follow Route, Loitering, Idle/Removed Object, People Counting, Crowd Density Estimation, 3D Tracking
Event Trigger Yes
Event Action Recording, Notification, Alarm
Data Streaming Yes
Built-In Installation Aids Lens Wizard for Autofocus and Zoom
Pixel Counter
System Requirements
Mobile Operating Systems iOS, Android
Environmental
Operating Temperature -40 to 140°F / -40 to 60°C
Storage Temperature -40 to 158°F / -40 to 70°C
Operating Humidity 5 to 100%
IP Rating IP67
IK Rating IK10
General
Pan/Tilt None
Alarm I/O 1 / 1
I/O Connections 1 x RJ45
1 x Power
1 x BNC
IR Illuminators 4 x 850 nm
IR Range 196.85' / 60 m
Video Management Software Bosch Video Recording Manager, Bosch Video Client, Bosch Video Security Client, Third-Party Software
Internal Storage None
External Storage Options Cloud
Power Source AC, DC, PoE 802.3af (15 W), PoE 802.3at (30 W)
Power Consumption DC: 11.4 W
AC: 18 W
PoE: 12.48 W
Material of Construction Aluminum
Dimensions H: 10.7 x W: 3.5 x L: 3.5" / H: 271.0 x W: 90.0 x L: 90.0 mm
Weight 2.87 lb / 1.3 kg
