Hanwha HWK-4CH-TUR-2.8
POSMarket SKU: Z14640
This model is available in 3 different configurations. Select a configuration below or contact our experts on 1300 737 998.

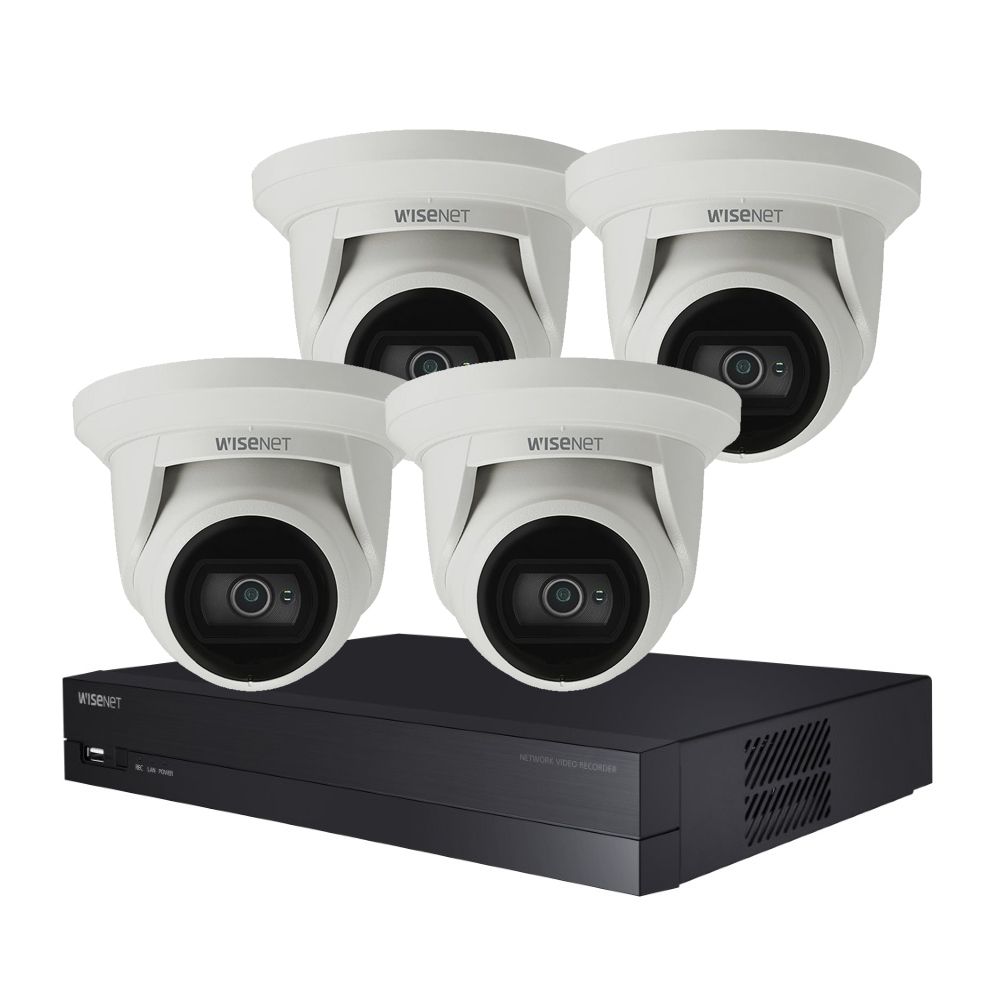

Hanwha 5MP NEW-Q Turret & 4ch NVR Kit
Product Overview
1 x Hanwha Wisenet NEW-Q 4ch 4K PoE NVR, H.265, 40Mbps, 3TB HDD, 1 SATA (Max 6TB), 35W
4 x Hanwha Wisenet NEW-Q 5MP Outdoor Flateye Camera, H.265, WDR, 20m IR, IP67, 2.8mm
Product Specifications
| 1 x Hanwha Wisenet NEW-Q 4ch 4K PoE NVR, H.265, 40Mbps, 3TB HDD, 1 SATA (Max 6TB), 35W | |
| Display | |
| Network camera | Inputs Max. 4CH |
| Resolution | 8MP ~ CIF |
| Protocols | Wisenet, ONVIF |
| Decoding Local Display HDMI: | 3840 x 2160, 1920x1080, 1280x720 |
| Resolution | 8MP(60fps), 5MP(90fps), 3MP(120fps), 2MP(120fps), 720p(120fps), D1(120fps) |
| Performance | |
| Record Compression | H.265, H.264, MJPEG |
| Recording Bandwidth | Max. 40Mbps |
| Resolution | 8MP ~ CIF |
| Mode | Normal, Schedule(Continuous/Event), Event (Pre/Post), Dual track Recording |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Alarm, MD, Video Analytics, Defocus) |
| Event Action | e-Mail, PTZ Preset, Buzzer, Monitor Out |
| Search & Play Playback | |
| Bandwidth Max. | 32Mbps(4CH simultaneously) |
| User Max. | 4 Users (Local 1, Remote 3) |
| Simultaneous | playback; Max. 4CH(Local Monitor, Network) |
| Fisheye Dewarping | WEB / CMS / Mobile |
| Storage | Supported HDD Up to 6TB;HDD Slot SATA 1ea(Max. 6TB) |
| Backup File | backup BU/Exe(GUI), JPG/AVI(Network); Function Multi channel(Upto 4CH) Play, Date-Time/Title display |
| 4 x Hanwha Wisenet NEW-Q 5MP Outdoor Flateye Camera, H.265, WDR, 20m IR, IP67, 2.8mm | |
| VIDEO | |
| Imaging Device | 1/2.8" 5MP CMOS |
| Effective Pixels | 2592(H) x 1944(V) |
| Color : | 0.15Lux (F2.0, 1/30sec) |
| BW : | 0Lux (IR LED on) |
| LENS | |
| Focal Length | (Zoom Ratio) 2.8mm fixed focal 4.0mm fixed focal |
| Max. Aperture | Ratio F2.0 F1.6 |
| Angular Field of View | H : 104.4°/ V : 76.7°/ D : 136.1° H : 80.1°/ V : 58.0°/ D : 105.8° |
| Focus Control | Fixed |
| PAN / TILT / ROTATE | |
| Pan / Tilt / Rotate Range | 0°~350°/ 0°~75° / 0°~360° |
| OPERATIONAL | |
| IR Viewable Length | 20m (65.62ft) |
| Camera Title Displayed | up to 85 characters |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Support |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter | Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view (90°/270°) |
| Analytics | Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers |
| IR Viewable Length | 20m(65.62ft) |
