Hanwha PNM-7002VD
POSMarket SKU: Z14723
PNM-7002VD: *SpOrd* Hanwha Wisenet 2MP Outdoor Multi Directional Dual Sensor Camera, WDR, Body only
Hanwha Wisenet 2MP Outdoor Multi Directional Dual Sensor Camera
Product Overview

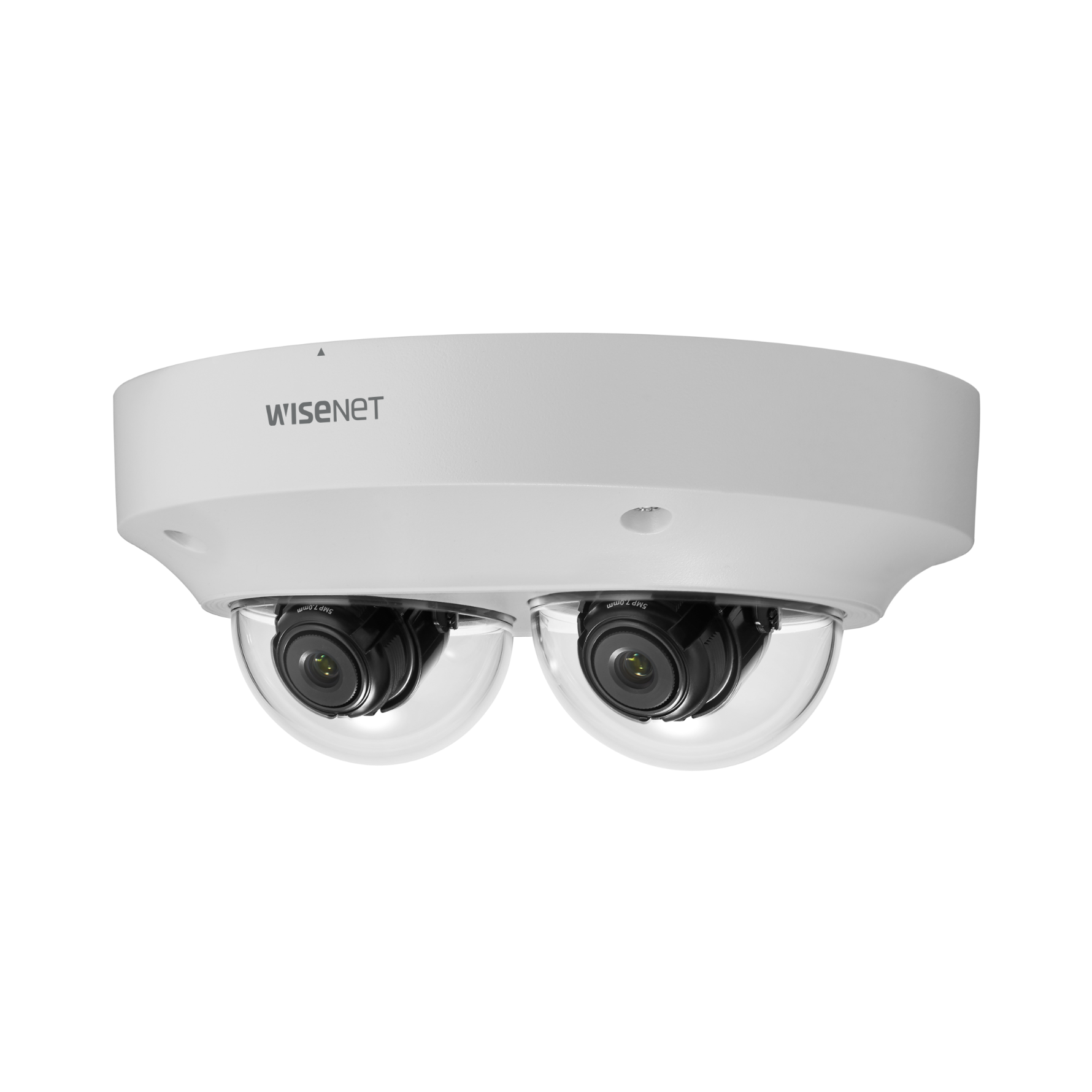

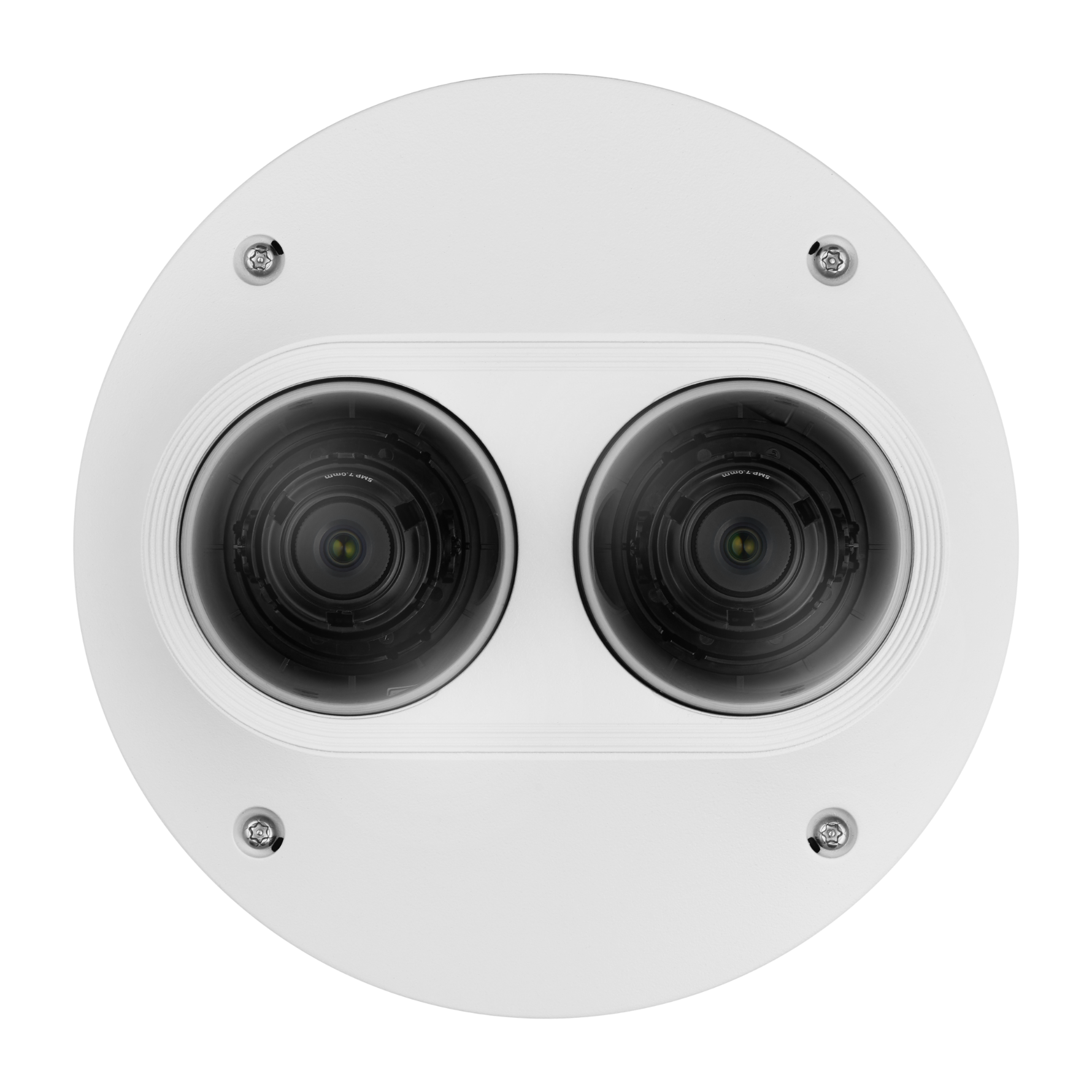

The PNM-7002VD 2MP 2-Sensor Multidirectional Network Dome Camera (No Lens) from Hanwha Techwin. This unit uses two sensors to capture 1920 x 1080 resolution video per sensor at 60 fps. Each sensor features two memory card slots that individually accept microSD/SDHC/SDXC cards up to 256GB for a total storage up to 1TB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.
Compliance with ONVIF profiles S and T enables interoperability with a wide range of surveillance devices. The camera's aluminum enclosure is IP66 and IK10 rated for outdoor use in areas at risk of vandalism.
FEATURES
- 2ea at 1920 x 1080 resolution
- Max. 60fps at 2M (H.265 / H.264)
- H.265, H.264, MJPEG codec supported
- Day and night, WDR (150dB)
- Loitering, directional detection, fog detection
- Motion detection, tampering, WiseStreamII Support
- SD/SDHC/SDXC memory 2 slots (each camera)
Product Specifications
| Video | |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: 2MP Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Video Out | CVBS : 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for installation |
| Lens | |
| Optional Lens | SLA-2M2402D(2MP 2.4mm) SLA-2M2802D(2MP 2.8mm) SLA-2M3602D(2MP 3.6mm) SLA-2M6002D(2MP 6.0mm |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(Electrical) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNRâ…¤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90Ëš/270Ëš) |
| Analytics | Defocus detection, Directional detection, Face detection, Fog detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC recording at event triggers |
| Network | |
| Ethernet | RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamâ…¡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/T SUNAPI(HTTP API) |
