Hanwha PNM-8082VT
$1,561.18 (incl. GST)
POSMarket SKU: Z14724
PNM-8082VT: *SpOrd* Hanwha Wisenet 3x 2MP Outdoor Multi Sensor & Directional Camera, 3 - 6mm

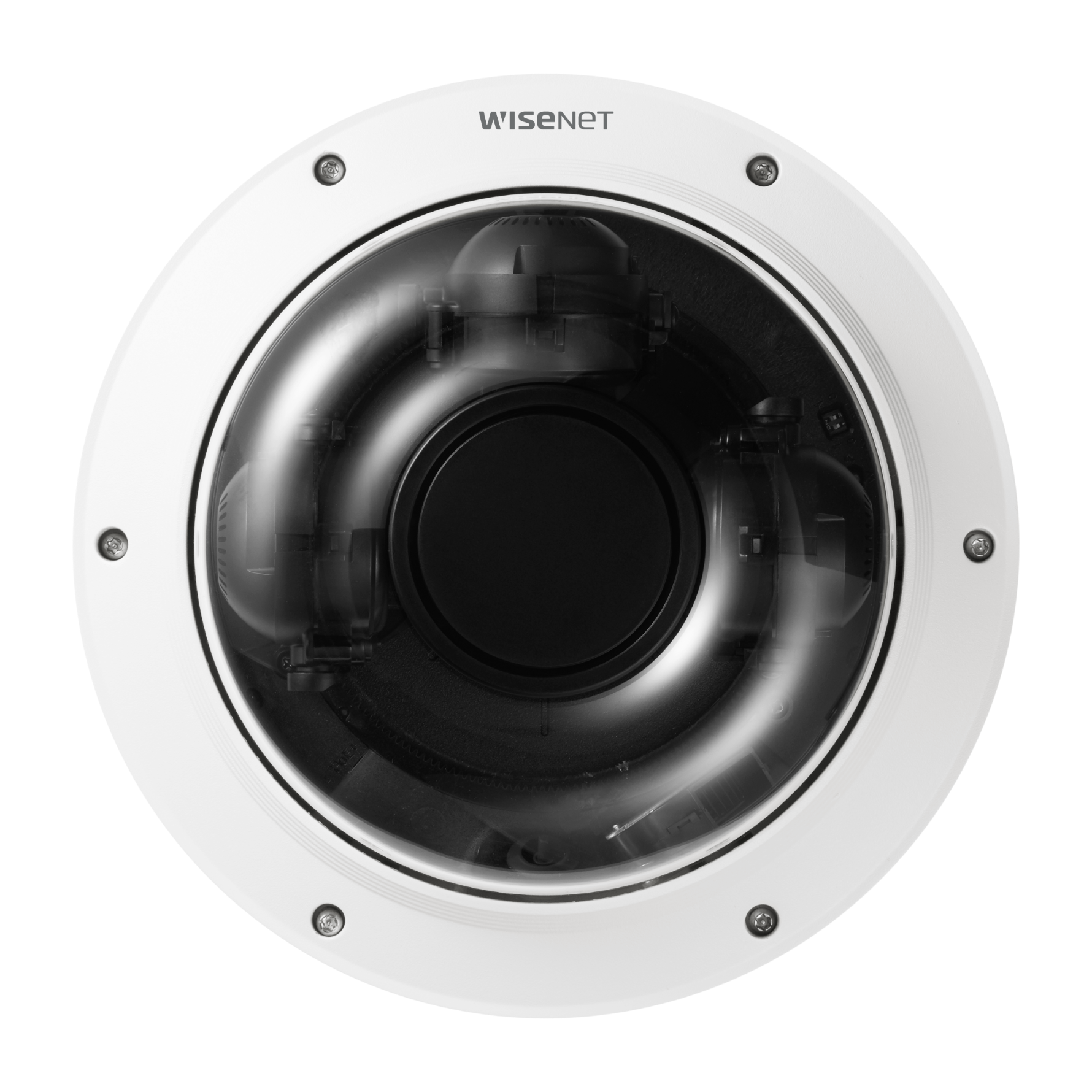

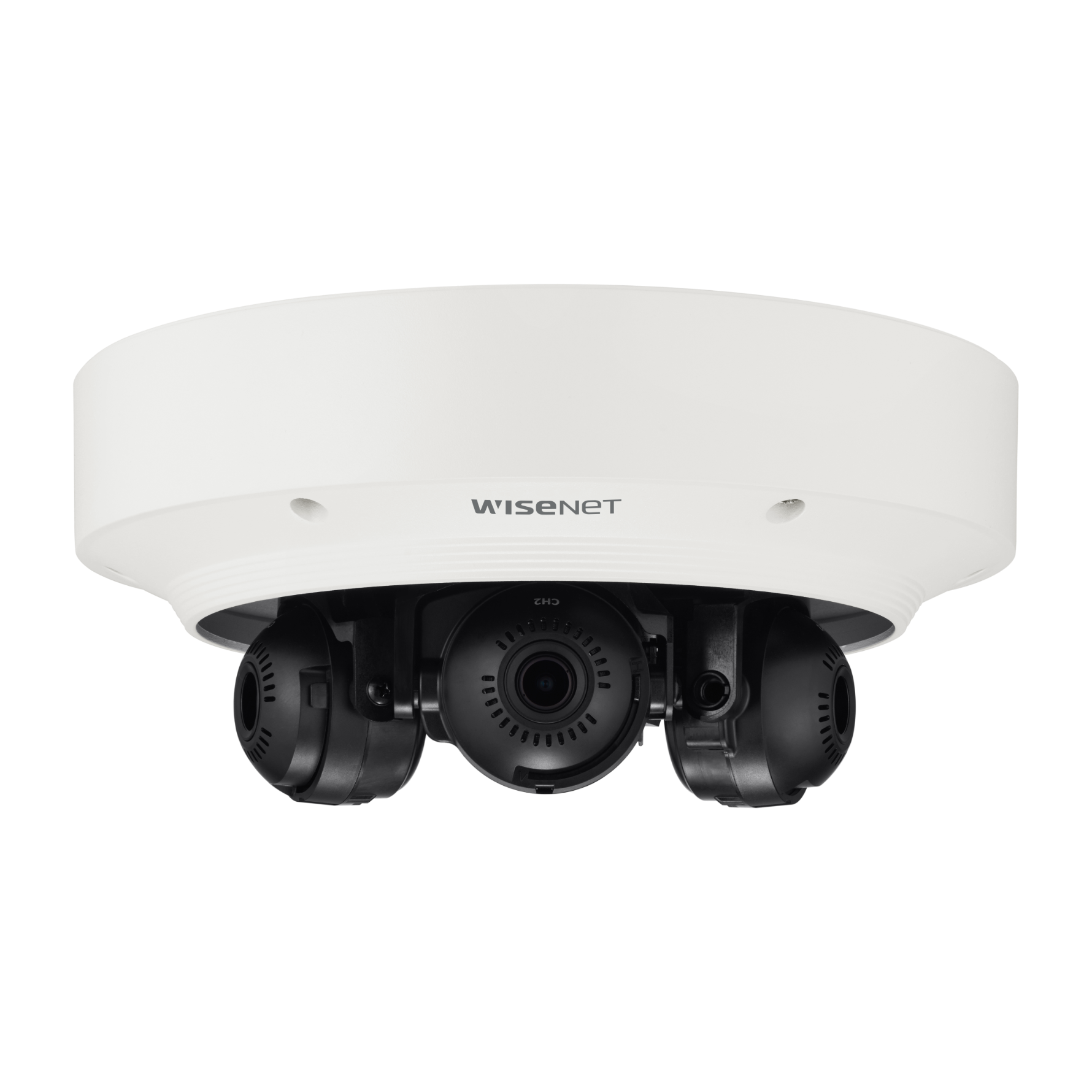

Hanwha Wisenet 3x 2MP Outdoor Multi Sensor & Directional Camera
Product Overview
The Hanwha's PNM-8082VT or HAN-PNM-8082VT outdoor multi-directional camera has 3x 2MP sensors, essentially making this is a 3 in 1 camera! This is a practical and cost-effective alternative to installing three separate cameras in applications where visibility around corners is a must. Not only are you saving on the hardware as fewer channels are required on an NVR, but you'll also be saving on analytics and VMS costs as well if they are required. Each of the 3 lenses can move easily along the rail and supports flexible positioning. Additionally, the motorised varifocal lens (3 - 6mm) offers various views with simple focus, with modifications available to suit each different application. The HAN-PNM-8082VT is the perfect solution for repeated multi-directional situations.
This camera uses three 1/2.8" CMOS sensors to capture 1920 x 1080 resolution video per sensor at 30 fps, for a total resolution of 6MP. The camera features three 3-6mm motorized varifocal lenses and is housed in an IP66-, NEMA 4X-, and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.
FEATURES
This camera uses three 1/2.8" CMOS sensors to capture 1920 x 1080 resolution video per sensor at 30 fps, for a total resolution of 6MP. The camera features three 3-6mm motorized varifocal lenses and is housed in an IP66-, NEMA 4X-, and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.
FEATURES
- 2MP x 3ch multi-directional camera
- Max. 30fps (H.265, H.264, MJPEG)
- 3 - 6mm (2x) motorised varifocal lens
- H.265, H.264, MJPEG codec, multi-streaming
- Video analytics, WiseStream II
- IP66, IK10, NEMA4X
- Defocus, direction and motion detection
- Tampering and virtual line
- Easy installation with Hanwha multi-step
Product Specifications
| Video | |
| Imaging Device | 1/2.8" CMOS x 3CH |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.04lux(F2.2, 1/30sec) BW: 0.004lux(F2.2, 1/30sec) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 3~6mm(2x) motorized varifocal |
| Max. Aperture Ratio | F2.2(Wide)-F3.1(Tele) |
| Angular Field of View | H: 107°(Wide)~56.3°(Tele) / V: 57°(Wide)~31.5°(Tele) / D: 126°(Wide)~64.3°(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus |
| Lens Type | Fixed iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0~360°/ 0~73°/ 0~90° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | extreme WDR(150dB) |
| Digital Noise Reduction | SSNRâ…¤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones - Color: Grey, Green, Red, Blue, Black, White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Defocus detection, Directional detection,Motion detection, Enter/Exit,Tampering, Virtual line |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC at event triggers Handover |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamâ…¡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) |
