Hanwha PNM-9000QB
$673.75 (incl. GST)
POSMarket SKU: Z14725
PNM-9000QB: *SpOrd* Hanwha Wisenet Covert Camera, Body Only, Supports 4x 2MP/5MP Multi Sensor Modules
Hanwha Wisenet Covert Camera
Product Overview

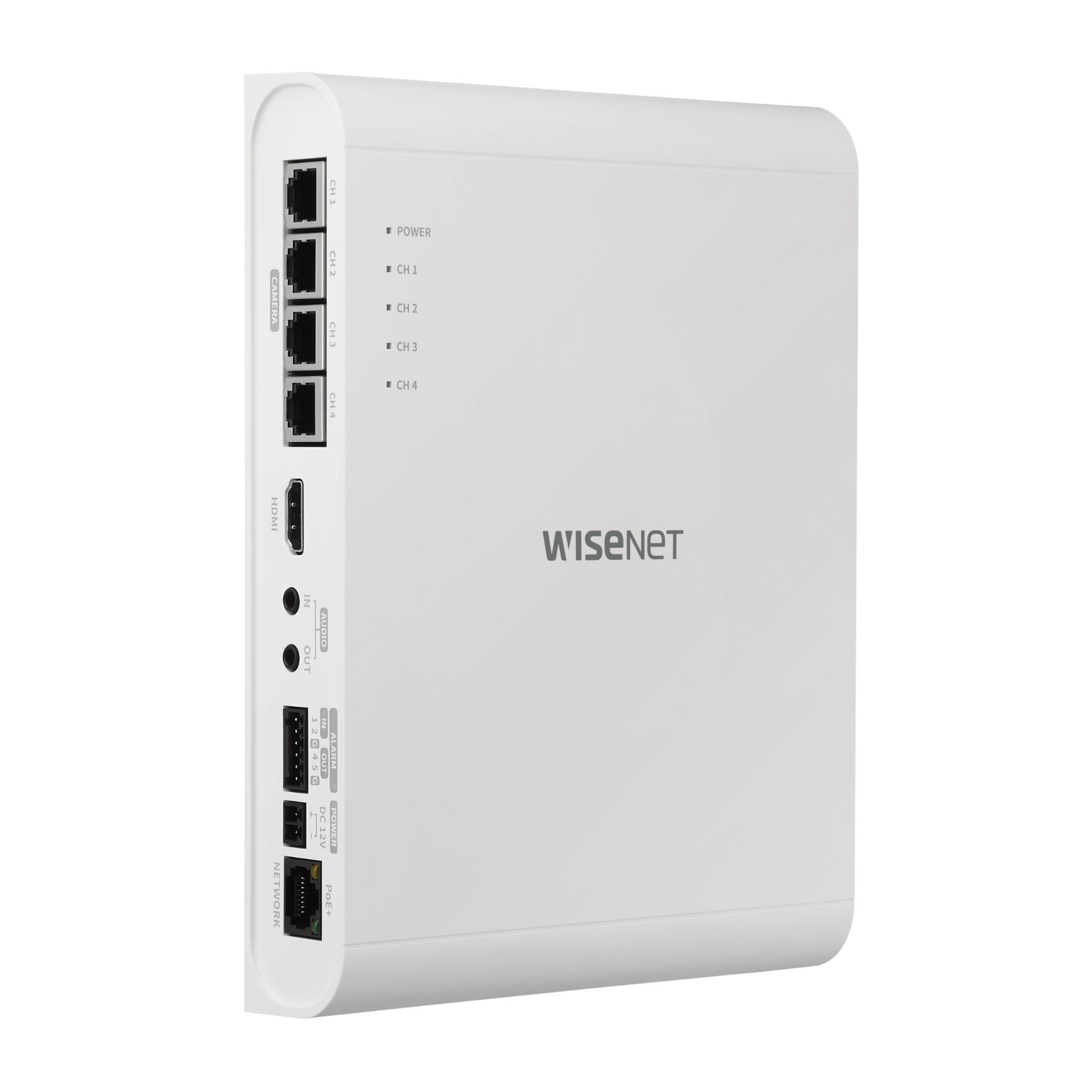

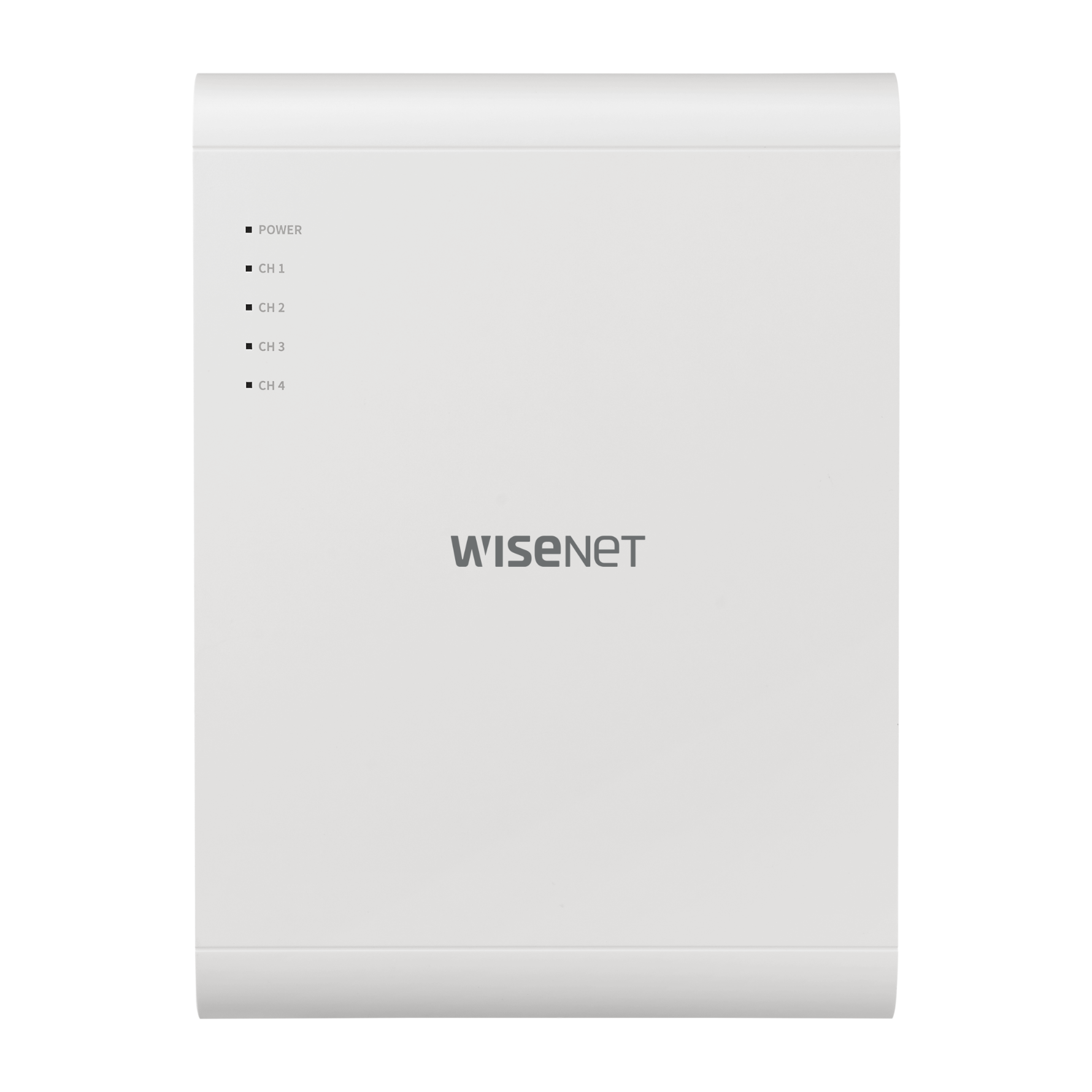

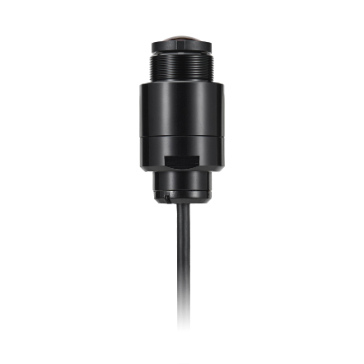

The Hanwha PNM-9000QB or the HAN-PNM-9000QB is a 4 channel covert body only camera. This camera has 4 channels to support additional lens modules from the one camera. These lens modules are sold separately and are available in the following lenses: fisheye, right angle, straight and pinhole. With the use of the four lens modules, you can easily cover four different areas with a single camera, making them the perfect choice for shopping centres, warehouses, parking lots and concierge areas. This allows you to minimise NVR channels used and reduces costs on additional VMS licences. Get the benefits of four cameras, while paying for just one.
The Hanwha PNM-9000QB or the HAN-PNM-9000QB is the best cost-effective solution for shops, stores, offices and banks with its multi-head solution is cost effective compared to typical network cameras. Users can integrate 4CH remote head lens modules on a single body and monitor up to 4 different areas.
FEATURES
The Hanwha PNM-9000QB or the HAN-PNM-9000QB is the best cost-effective solution for shops, stores, offices and banks with its multi-head solution is cost effective compared to typical network cameras. Users can integrate 4CH remote head lens modules on a single body and monitor up to 4 different areas.
FEATURES
- 2MP x 4CH
- HDMI - single/quad view support
- WDR 120dB, WiseStream II
- Defocus, directional and motion detection
- Max 30fps at 2MP
- H.265, H.264, MJPEG
- Compatible with SLA-T4680A/T4680VA, SLA-T2480A/T2480VA, SLA-T1080FA
Product Specifications
| Video | |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: 2MP Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Video Out | HDMI(1920x1080, Single/Quad view) |
| Lens | |
| Optional Lens | SLA-T1080FA, SLA-T2480A, SLA-T2480VA, SLA-T4680A, SLA-T4680VA |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(Electrical) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRâ…¤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, 4point quadrangle zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Defocus detection, Directional detection,Motion detection, Enter/Exit,Tampering, Virtual line |
| Alarm I/O | Input 2ea / Output 2ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC at event triggers Alarm output |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| Network | |
| Ethernet | RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamâ…¡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 12 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA) |
| Application Programming Interface | ONVIF Profile S/T SUNAPI(HTTP API) |
