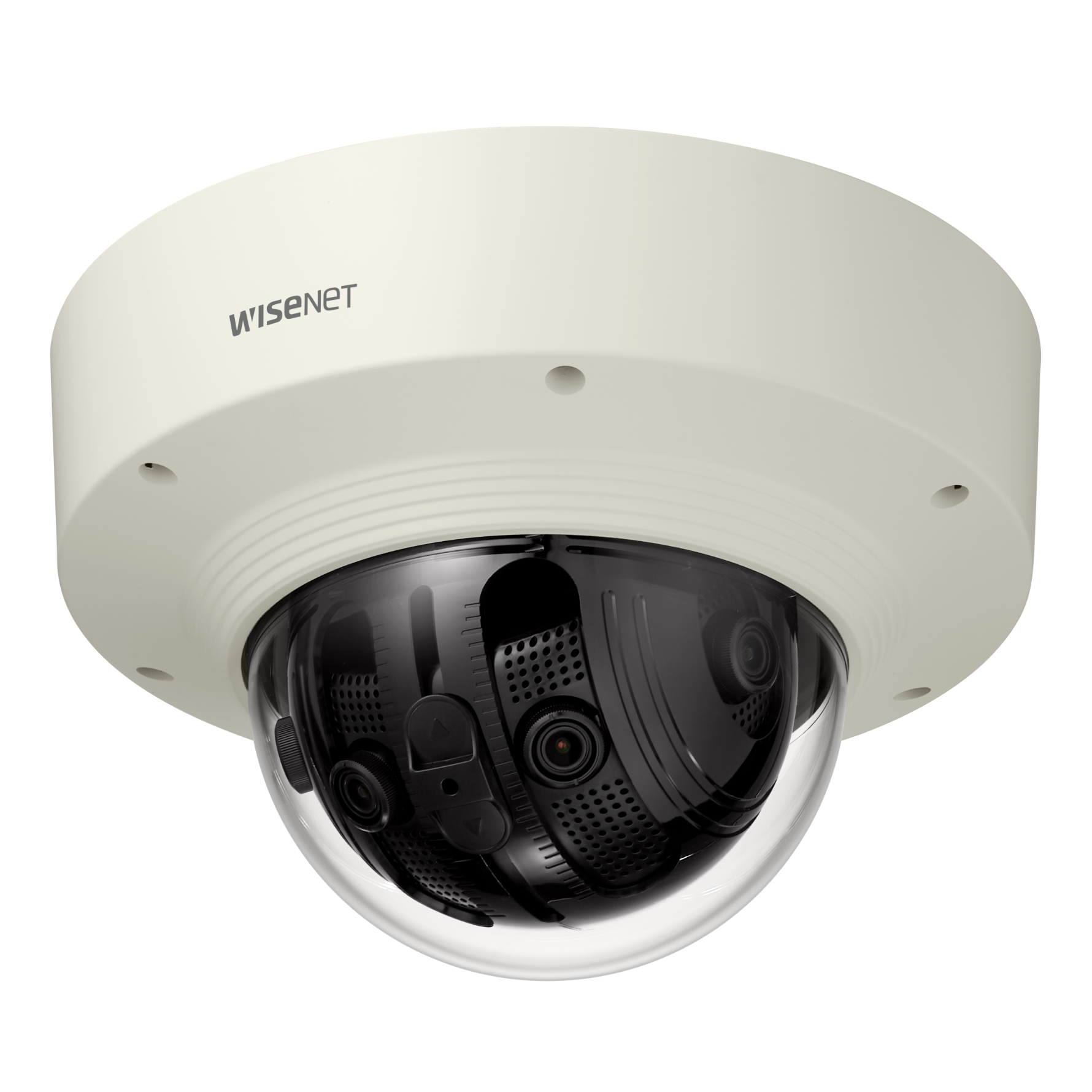

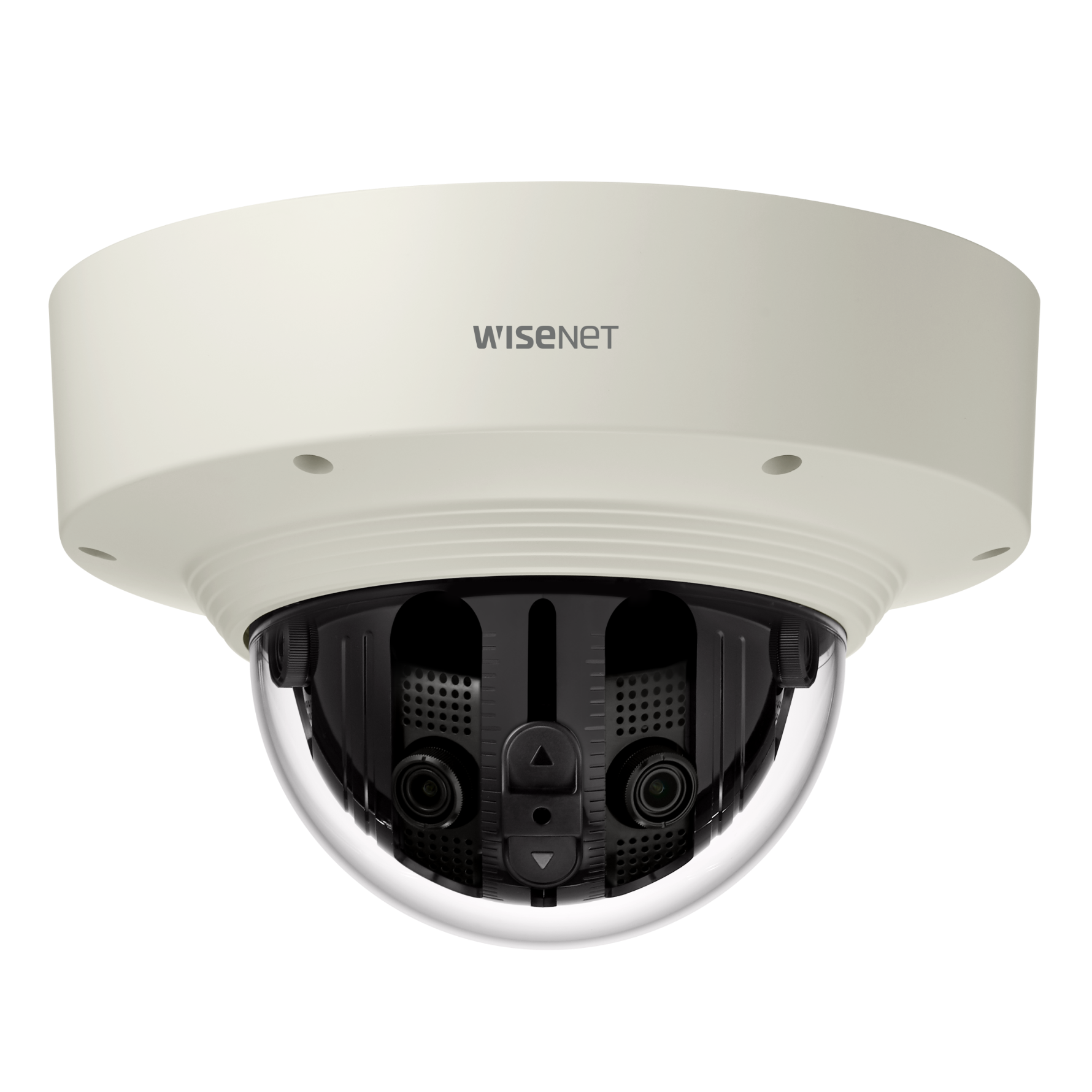

Hanwha PNM-9030V
POSMarket SKU: Z14616
PNM-9030V: *SpOrd* Hanwha Wisenet 15MP Outdoor Multi Sensor Panoramic Camera, 30fps, IK10, 4mm Lens
Hanwha Wisenet 15MP Outdoor Multi Sensor Panoramic Camera, 30fps
Product Overview
The PNM-9030V has audio input and output connections for two-way audio communication. Moreover, it is rated IP66 and IK10 for weather and vandal resistance. PoE+ enables you to run just one wire for both data and power while ONVIF compliance ensures compatibility with a wide range of surveillance devices.
FEATURES
- Max. 15MP (6096 x 2540 at 180 degrees,7744 x 1936 at 220 degrees) resolution
- 180/220 degrees panoramic stitching image
- Panoramic stitching, original, crop view channel support
- Max. 30fps at 2MP (H.265, H.264)
- H.265, H.264, MJPEG codec, WiseStream II support
- Day and night (ICR), WDR (150dB)
- Tampering, loitering, directional detection, virtual line, enter/exit, (dis)appear, audio detection
- Motion detection, handover, sound classification, heatmap
- IP66, IK10
Product Specifications
| Video | |
| Imaging Device | 1/2.8" 5MP CMOSx4 |
| Resolution | [180° mode] 6096x2540, 5760x2400, 5472x2280, 5184x2160, 4800x2000, 4560x1900, 4096x1704, 3840x1600, 2688x1120, 2560x1064, 2048x852, 1920x800, 1280x532, 640x264 [220°mode] 7744x1936, 6096x1524, 5760x1440, 5472x1368, 5184x1296, 4800x1200, 4560x1140, 4096x1024, 3840x960, 2688x672x 2560x640, 2048x512, 1920x480, 1280x320, 640x160 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.15Lux(F2.0, 1/30sec) B/W: 0.01Lux (F2.0, 1/30sec) |
| Video Out | USB : Micro USB Type B, 1280x720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 4mm Fixed |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | [180° mode] H: 180°, V: 70° [220° mode] H: 220°, V: 52° |
| Min. Object Distance | 3m(9.84ft) |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~355° / 0°~60° / - |
| Operational | |
| Camera Title | Displayed up to 75 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRâ…¤ |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 16ea, rectangle zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Directional detection, Motion detection,, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |
| Business Intelligence | Heatmap |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC recording at event triggers Alarm output |
