Hanwha PNM-9080VQ
$3,242.66 (incl. GST)
POSMarket SKU: Z14608
PNM-9080VQ: Hanwha Wisenet 8MP Outdoor 360 Multi Sensor Camera, 4x 2MP at 60fps, 2.8-12mm lens

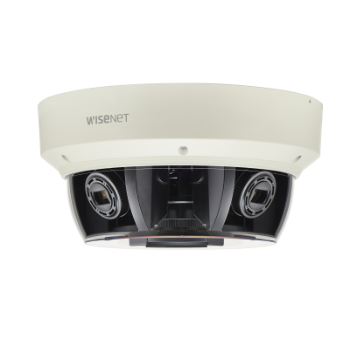

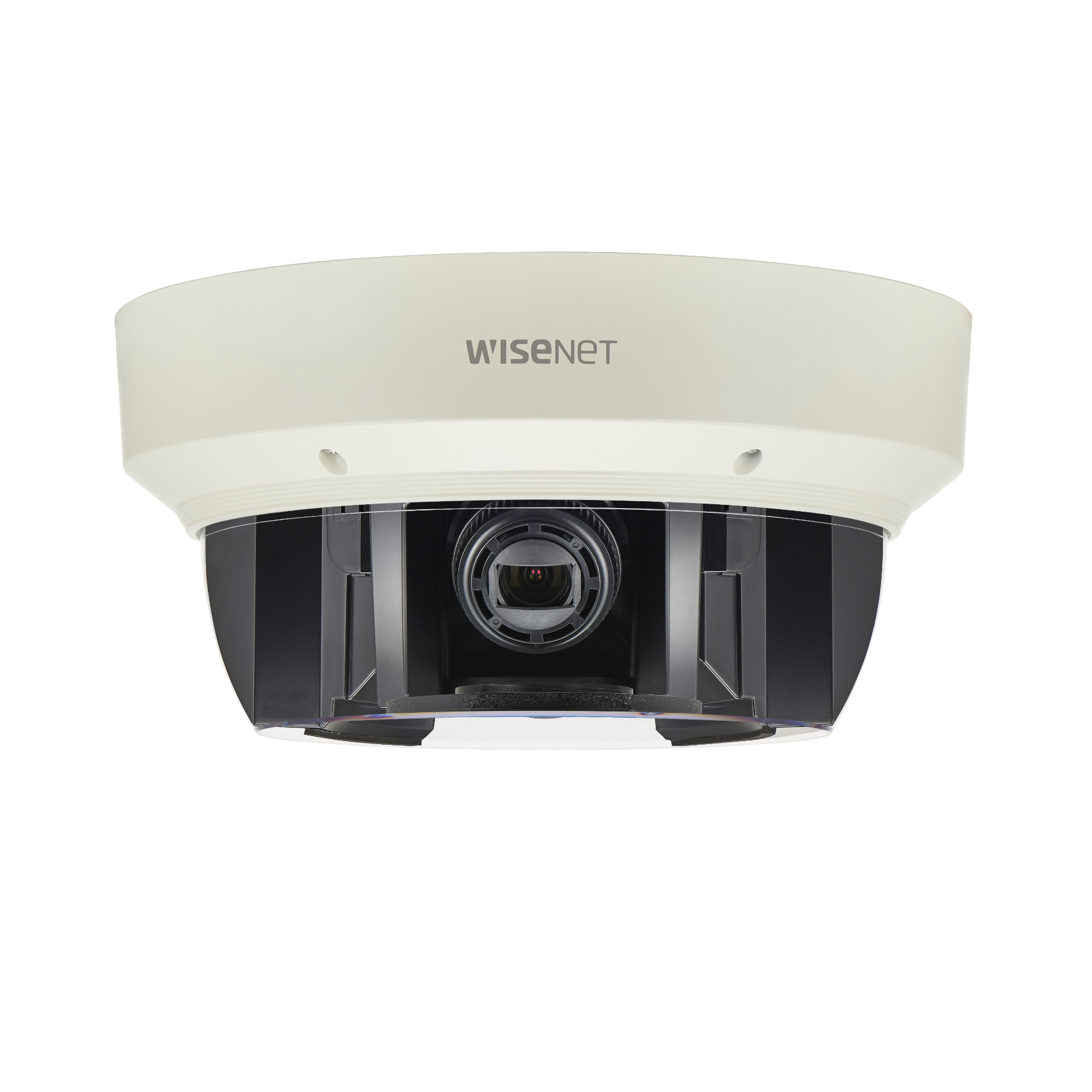

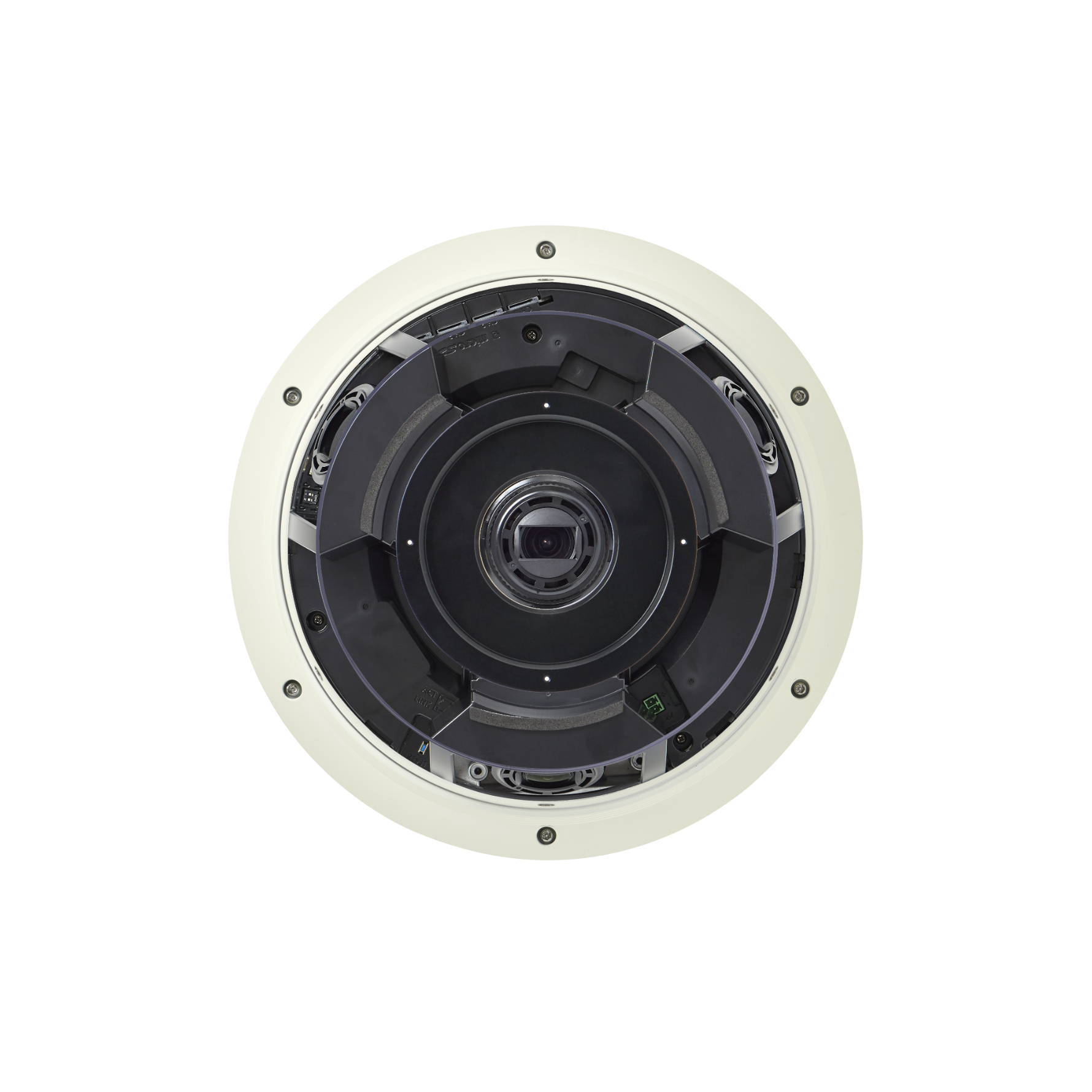

Hanwha Wisenet 8MP Outdoor 360° Multi Sensor Camera
Product Overview
The four sensors in the multi-directional Hanwha PNM-9080VQ or HAN-PNM-9080VQ camera move independently of one another. When using the cameras, you can monitor multiple directions simultaneously without blind spots making this camera ideal for wide areas such as warehouses, shopping mall entrances, train stations, parking lots, lobbies and airports. When WiseStream II is combined with H.265, bandwidth can be improved by up to 99 percent compared to H.264 technology. Even in low-light conditions, Wisenet's cutting-edge WDR technology conquers limitations found in conventional WDR cameras while producing clear and vivid images. The HAN-PNM-9080VQ supports a variety of exclusive video and audio analytics, providing enhanced monitoring solutions and market intelligence.
The SD slot supports up to 128GB cards (available separately) for local storage. The camera is housed in an IP66- and IK10-rated enclosure for protection against dust, water, and impact, making it suitable for use outdoors and in high-risk areas.
FEATURES
The SD slot supports up to 128GB cards (available separately) for local storage. The camera is housed in an IP66- and IK10-rated enclosure for protection against dust, water, and impact, making it suitable for use outdoors and in high-risk areas.
FEATURES
- Four 1/2.8" progressive scan CMOS image sensors
- Each sensor captures 1920 x 1080 resolution video at up to 60 fps
- Four 2.8-12mm motorized varifocal lenses
- Digital image stabilization with built-in gyro sensor
- H.265, H.264, and MJPEG codec support
- Day and night functionality with ICR
- Wide dynamic range of 150 dB
- Motion detection, tampering detection, and advanced video analytics
- WiseStream II support
- SD/SDHC/SDXC card slot for local storage (card available separately)
- IP66- and IK10-rated enclosure
Product Specifications
| Video | |
| Imaging Device | 1/2.8" 2MP CMOS: each CH |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.015Lux(F1.4, 1/30sec)(30IRE) B/W: 0.0015Lux (F1.4, 1/30sec)(30IRE) |
| Video Out | CVBS : 1.0 Vp-p /75Ω composite, 720x480(N), 720x576(P), for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8~12mm(4.3x) motorized varifocal |
| Max. Aperture Ratio | F1.4(Wide)~F3.6(Tele) |
| Angular Field of View | H: 119.5°(Wide)~27.9°(Tele), V: 62.8°(Wide)~15.7°(Tele), D: 142.1°(Wide)~32.0°(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus |
| Lens Type | DC auto iris, P iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | Quad mode: Pan +/-30°, Tilt 10° ~ 41°, Rotate +-90°<br>Center mode: Pan +/-60°, Tilt 10° ~ 41° / 10° ~ 90°(CH2/Center), Rotate +-90° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNRâ…¤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC recording at event triggers Alarm output |
