Hanwha PNM-9084QZ
POSMarket SKU: Z14621
PNM-9084QZ: *SpOrd* Hanwha Wisenet 2MP Outdoor Multi Directional Camera, WDR, 3-6mm Lens

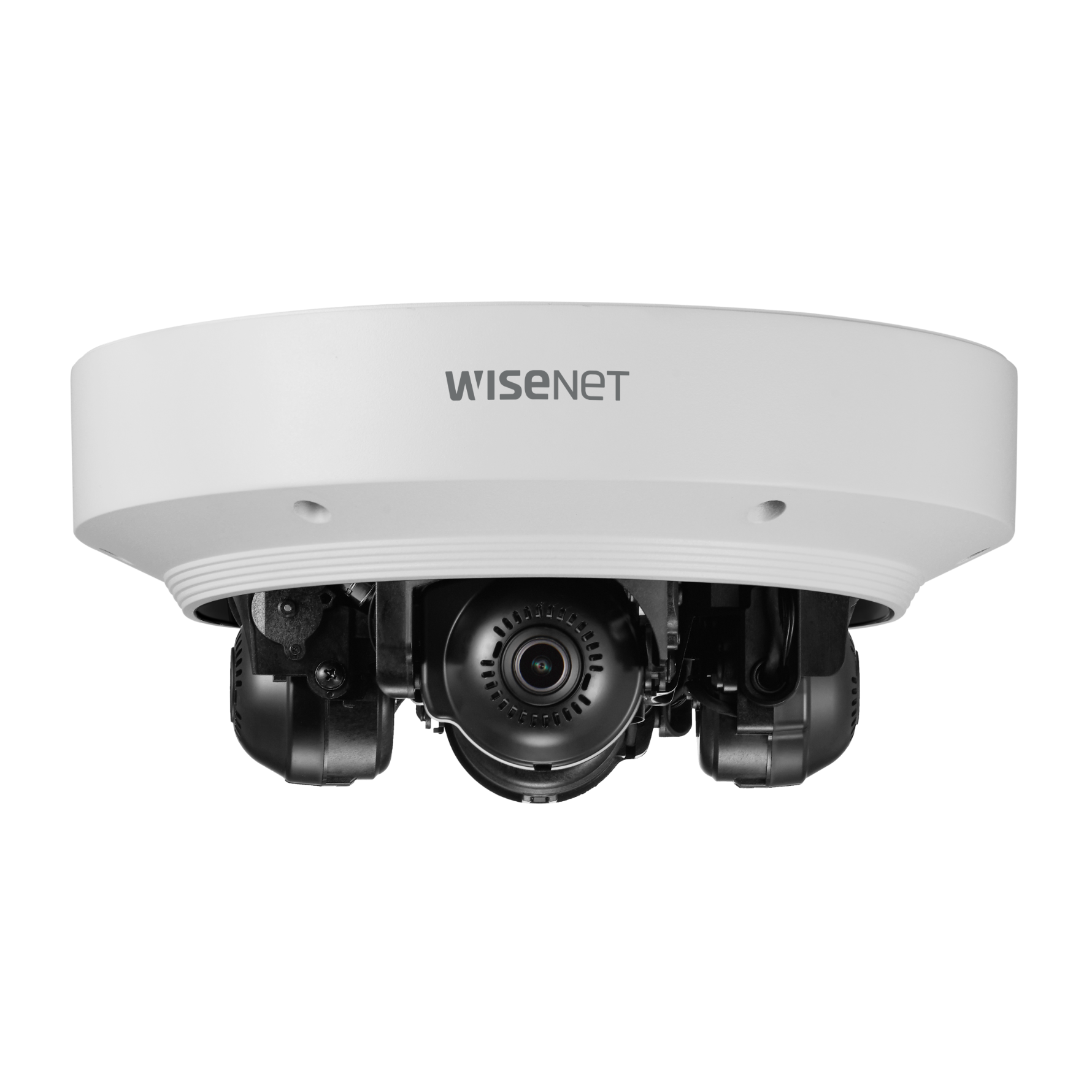

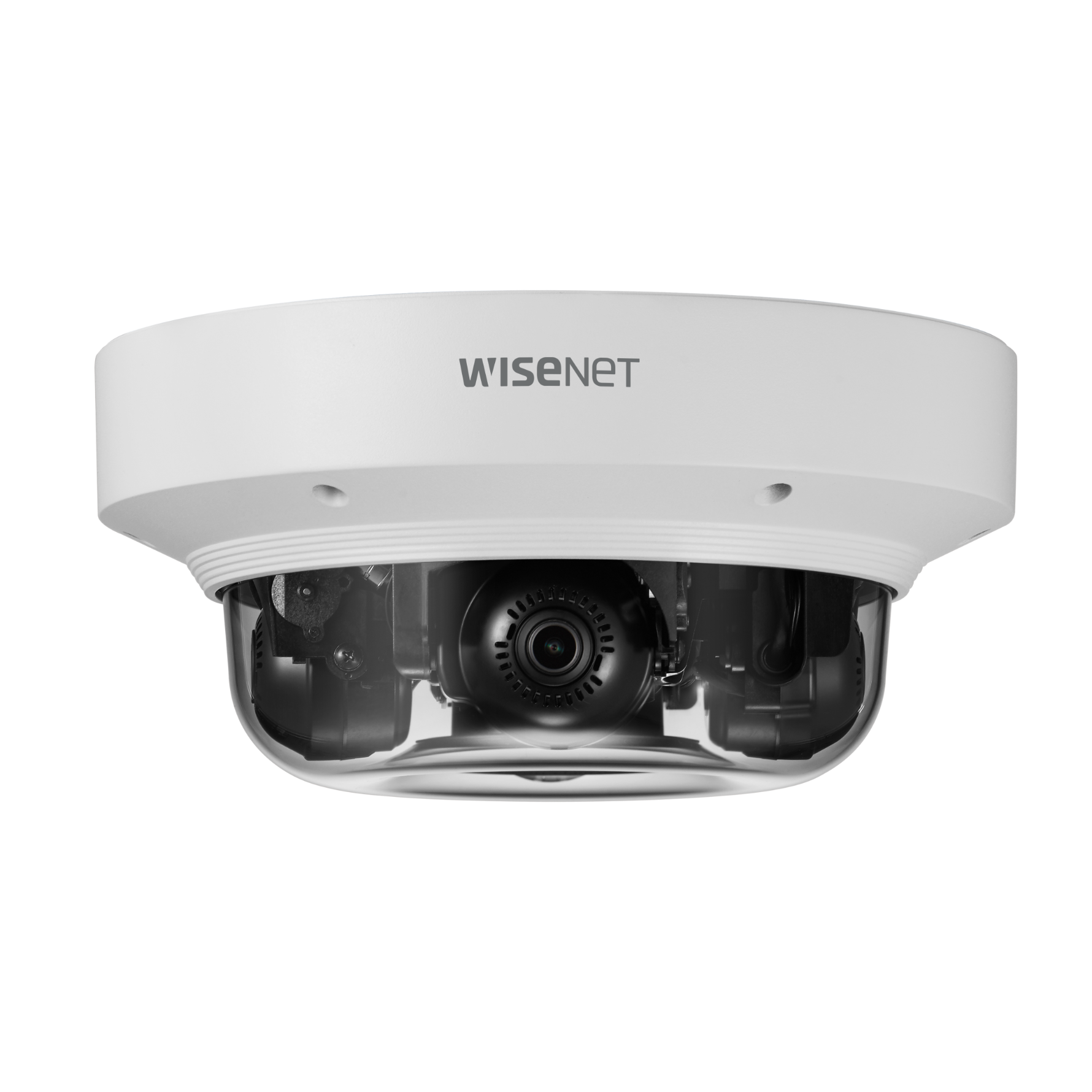

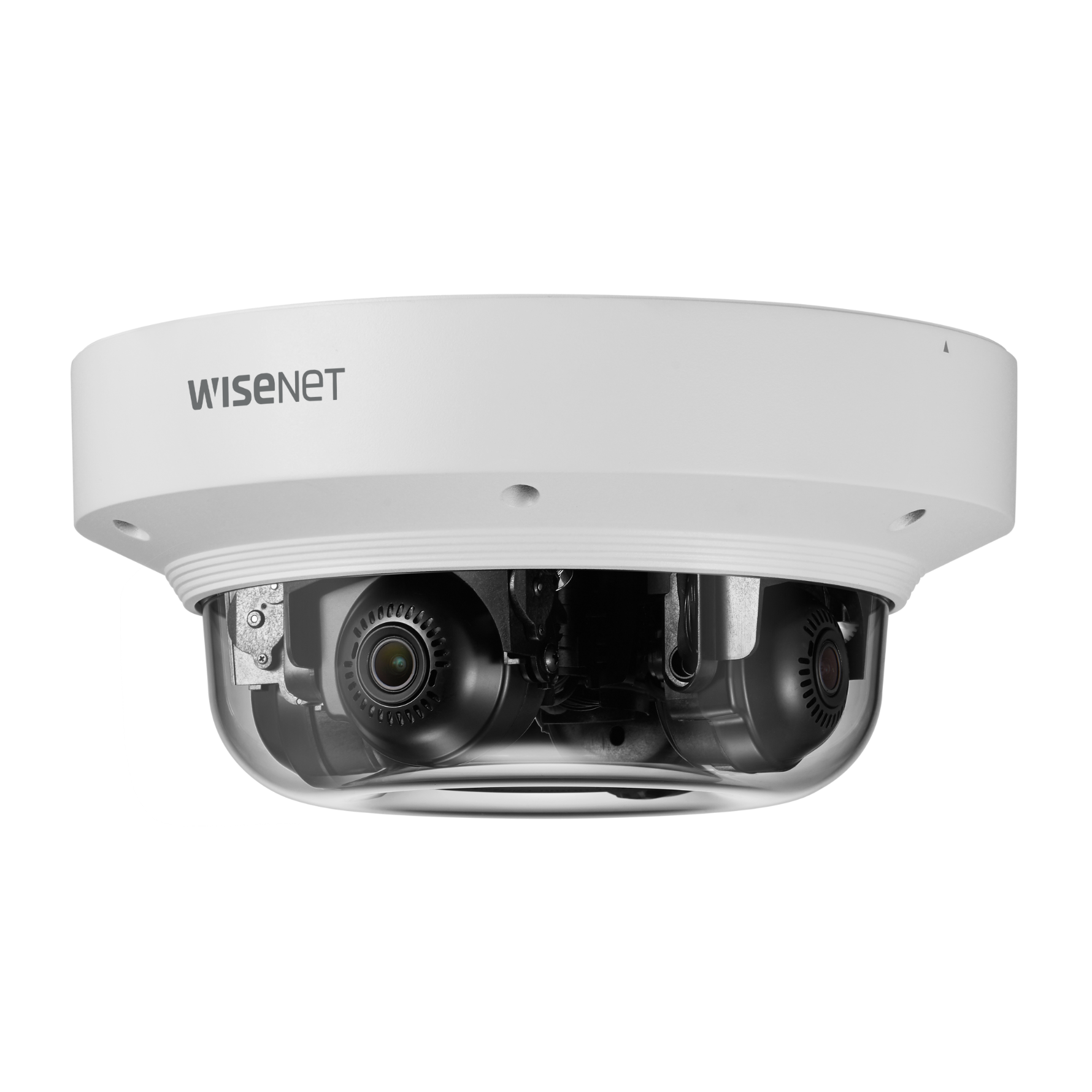

Hanwha Wisenet 2MP Outdoor Multi Directional Camera
Product Overview
FEATURES
- 2MP x 4ch Multi-directional, Multi-Sensor camera
- PTRZ (Pan/Tilt/Rotate/Zoom) remote adjustment
- Max. 60fps@2M(H.265, H.264), Max. 30fps@2M(MJPEG)
- 3.0~6.0mm(2x) motorized varifocal lens (107°~56.3°)
- 120dB WDR,
- Defocus detection, built-in analytics, True D/N,
- 4x SD card slots,
- H.265, H.264, MJPEG codec, Multi streaming
- Video analytics, WiseStream II
- Weatherproof IP66,
- Vandal Proof IK10, NEMA4X
- -40°C ~ +55°C (-40°F ~ +131°F),
- Hallway view, HLC, defog detection,
- HPoE (injector included),
- Bi-Directional Audio,
- Alarm I/O 1/1,
- White camera body.
Product Specifications
| Video | |
| Imaging Device | 1/2.8" CMOS x 4CH |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.04lux(F2.2, 1/30sec) BW: 0.004lux(F2.2, 1/30sec) |
| Lens | |
| Focal Length (Zoom Ratio) | 3~6mm(2x) motorized varifocal |
| Max. Aperture Ratio | F2.2(Wide)-F3.1(Tele) |
| Angular Field of View | H: 107Ëš(Wide)~56.3Ëš(Tele) / V: 57Ëš(Wide)~31.5Ëš(Tele) / D: 126Ëš(Wide)~64.3Ëš(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus |
| Lens Type | Fixed iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | Remote adjustment (Max. 200cycles) 0~360Ëš / 0~73Ëš / 0~90Ëš |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRâ…¤ |
| Digital Image Stabilization | Support (built-in gyro sensor) |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones - Color: Grey, Green, Red, Blue, Black, White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC at event triggers Alarm output Handover |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
