Hanwha PNO-A9081R
from $1,679.56 (incl. GST)
POSMarket SKU: Z14715
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.

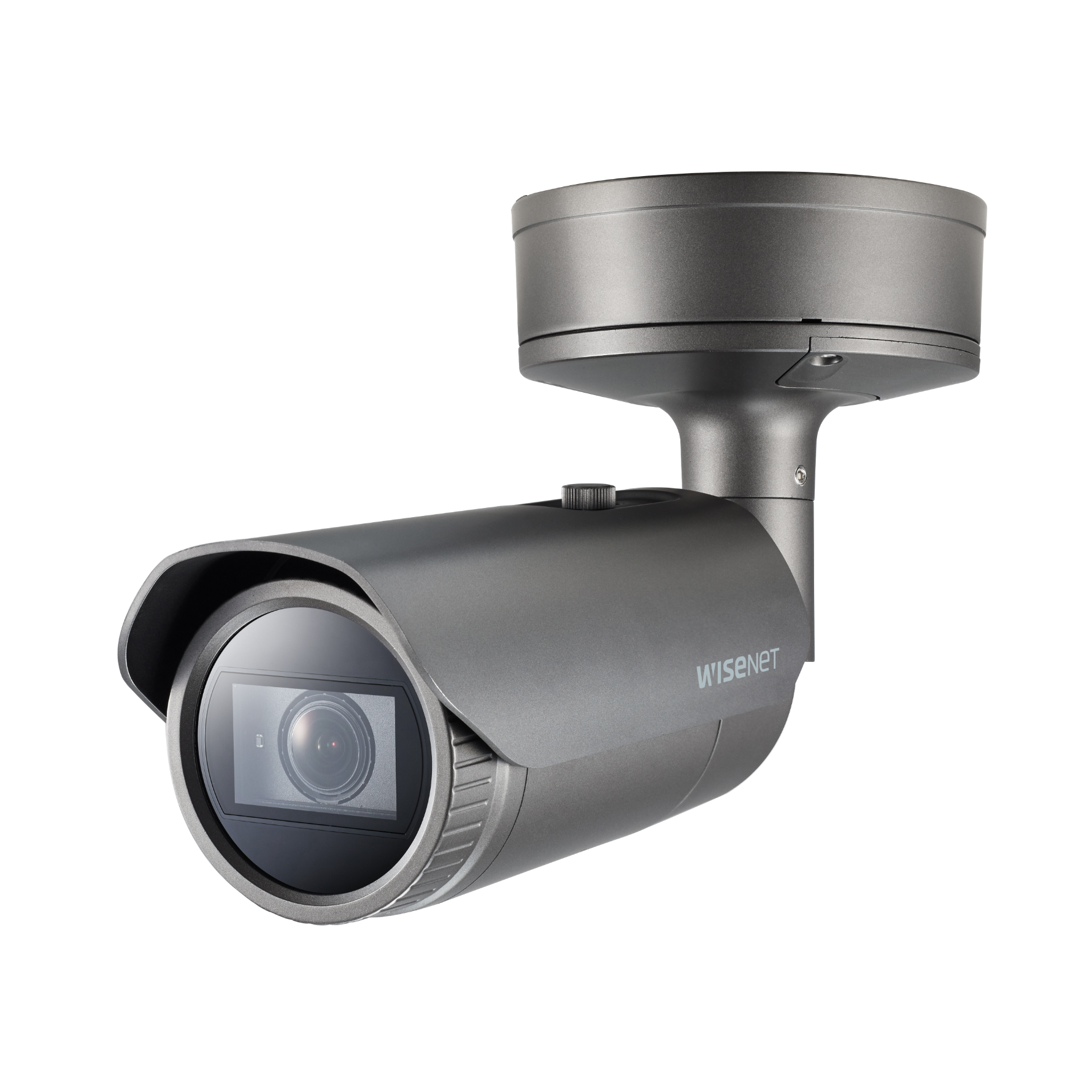

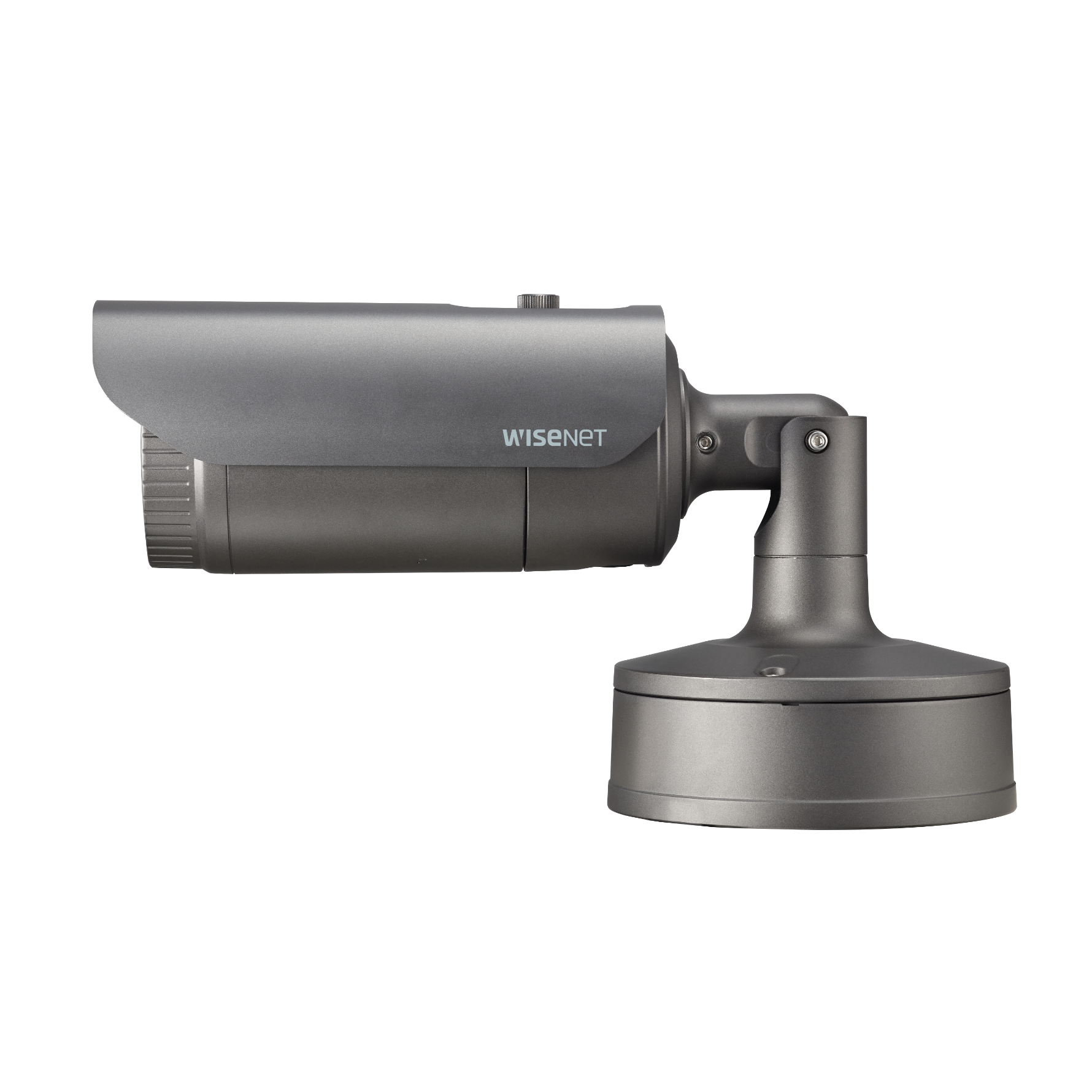

Hanwha Wisenet 4K AI Outdoor Bullet Camera
Product Overview
The Hanwha's PNO-A9081R or HAN-PNO-A9081R categorises what it sees into broad categories such as 'person', 'face', 'vehicle' and 'licence plate'. Delving deeper, Wisenet artificial intelligence algorithms are quickly and accurately able to identify the different attributes of the objects within the camera's field of view. This camera is also equipped with a BestShot feature which ensures that only the most suitable images of classified objects are sent to the storage server. Users have the option to set the image resolution at 2MP for full video streaming or use the BestShot feature to minimise bandwidth and storage requirements. Store operators are able to combine the HAN-PNO-A9081R with the Retail Insight v2.0 business intelligence application, to analyse what is happening within their stores, with the camera using attribution identification to help track customer demographics, age and gender. All of these features make this camera suitable for a range of applications.
FEATURES
FEATURES
- Max. 4K resolution
- 0.05Lux at F1.6 (colour), 0Lux (B/W, IR LED on)
- Day and night (ICR), WDR (120dB)
- H.265, H.264, MJPEG codec, WiseStream II
- Video analytics based on AI: object detection and classification (person, face, vehicle, licence plate)
- Compatible with Wisenet Retail Insight v2.0 for business intelligence
- BestShot
- Age/gender based people counting
- Heatmap
- Queue management
Product Specifications
| Video | |
| Imaging Device | 1/1.8" CMOS |
| Resolution | 3840x2160, 3072x1728, 2592x1944, 2688x1520, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024,1280x960, 1280x720, 1024x768, 800 x 600, 800 x 448, 720 x 576, 720x480, 640x480, 640x360 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.05Lux(F1.6, 1/30sec) BW: 0.005Lux(F1.6, 1/30sec), 0Lux(IR LED on) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 4.5~10mm(2.2x) motorized varifocal |
| Max. Aperture Ratio | F1.6(Wide)~F2.65(Tele) |
| Angular Field of View | H:101.4°(Wide)~45.5°(Tele) / V:53.6°(Wide)~25.5°(Tele) / D:120.7°(Wide)~52.3°(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus |
| Lens Type | P iris |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Digital Noise Reduction | SSNRâ…¤, WiseNR â…¡(using AI engine) |
| Digital Image Stabilization | Stabilization Support(built-in gyro sensor) |
| Motion Detection | 8ea, polygonal zones |
| Privacy Masking | 6ea, rectangle zones - Color: Gray/Black/White |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) Auto prefer shutter control based on AI engine |
| Video Rotation | Flip, Mirror, Hallway view(90Ëš/270Ëš) |
| Analytics | Classified object type : Person/Face/Vehicle/License plate Attributes : Person(Gender, Color and Bag), Face(Age, Gender, Mask and Glasses), Vehicle(Type:car/bus/truck/motorcycle/bicycle and Color) Support Bestshot per object Analytics events based on AI engine - Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit), Face mask detection, Digital auto tracking, Social distancing detection Analytics events - Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear) *Some of the video analytics only works with people and vehicle detection |
| Business Intelligence | People counting, Queue management, Heatmap based on AI engine |
| Alarm I/O | 2 configurable I/O ports, DC 12V output(Max. 50mA) |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover Audio playback |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| IR Viewable Length | 30m(98.42ft) |
