Hanwha QNB-8002
POSMarket SKU: Z14642

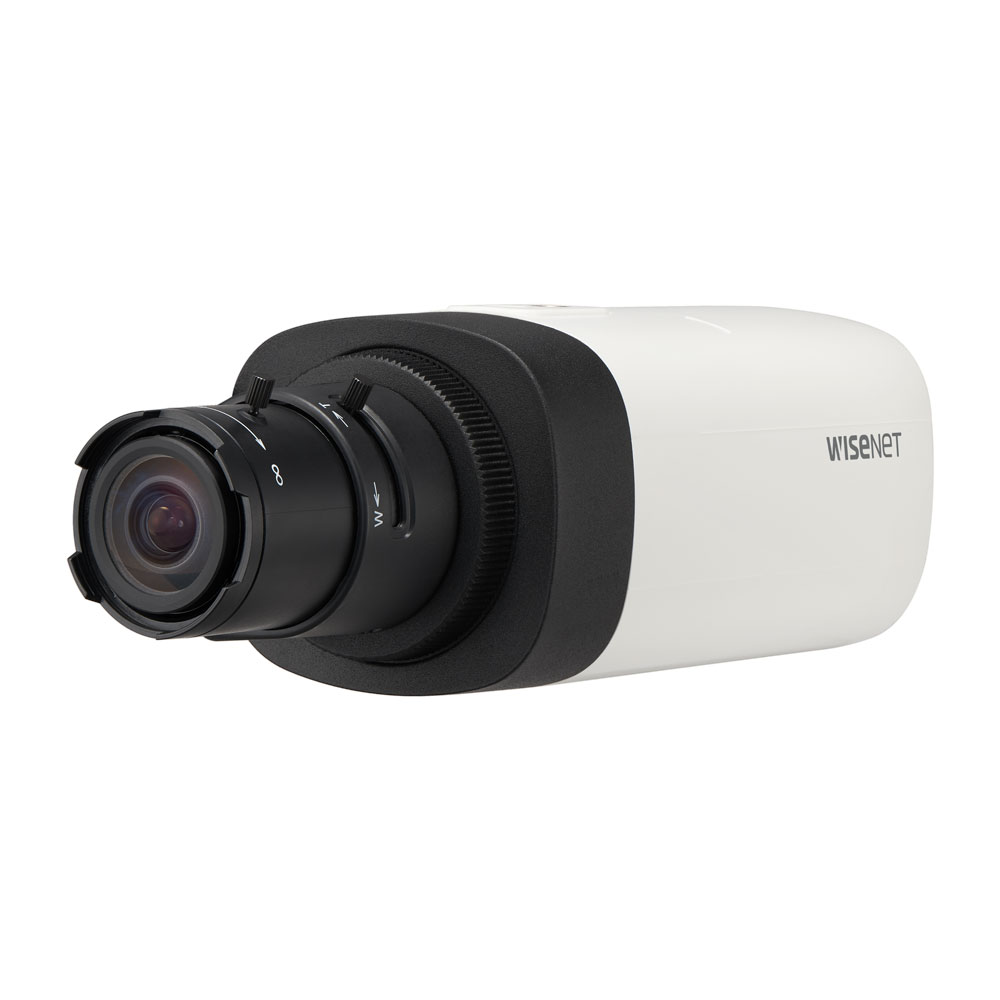

QNB-8002: *SpOrd* Hanwha Wisenet 5MP Indoor Box Camera, H.265, 30fps, WDR, DC-Iris, No Lens
Hanwha Wisenet 5MP Indoor Box Camera
Product Overview
The Q series achieves optimal performance by producing crystal-clear images regardless of the environment or time of day.
FEATURES
- [email protected] (Color)
- Max. 30fps@5MP (H.265/H.264)
- Day & Night (ICR), WDR(120dB)
- Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line, Tampering
- SD 1slot (128GB)
- H.265, H.264, MJPEG codec, WiseStream II
Product Specifications
| Video | |
| Imaging Device | 1/2.8" 5MP CMOS |
| Effective Pixels | 2592(H)x1944(V) |
| Min. Illumination Color: | 0.07Lux(F1.2, 1/30sec) |
| Video Out CVBS: | 1.0 Vp-p / 75Ωcomposite, 720x480(N), 720x576(P) for installation |
| Lens | |
| Focus Control | Manual |
| Lens Type | Manual/ DC-IRIS |
| Mount Type | C mount, CS mount |
| Operational | |
| Camera Title Displayed | up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, polygonal zones |
| Gain Control | Low/ Middle/ High |
| White Balance | ATW/ AWC/ Manual/ Indoor/ Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum/ Maximum/ Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90Ëš/270Ëš) |
| Analytics | Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line |
| Serial Interface | RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output |
| Audio In | Line-in |
| Supply voltage: | 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line-out 1Vrms |
