Hanwha QND-8020R
POSMarket SKU: Z14629
QND-8020R: Hanwha Wisenet NEW-Q 5MP Indoor Dome Camera, H.265, 120dB WDR, 20m IR, 4mm

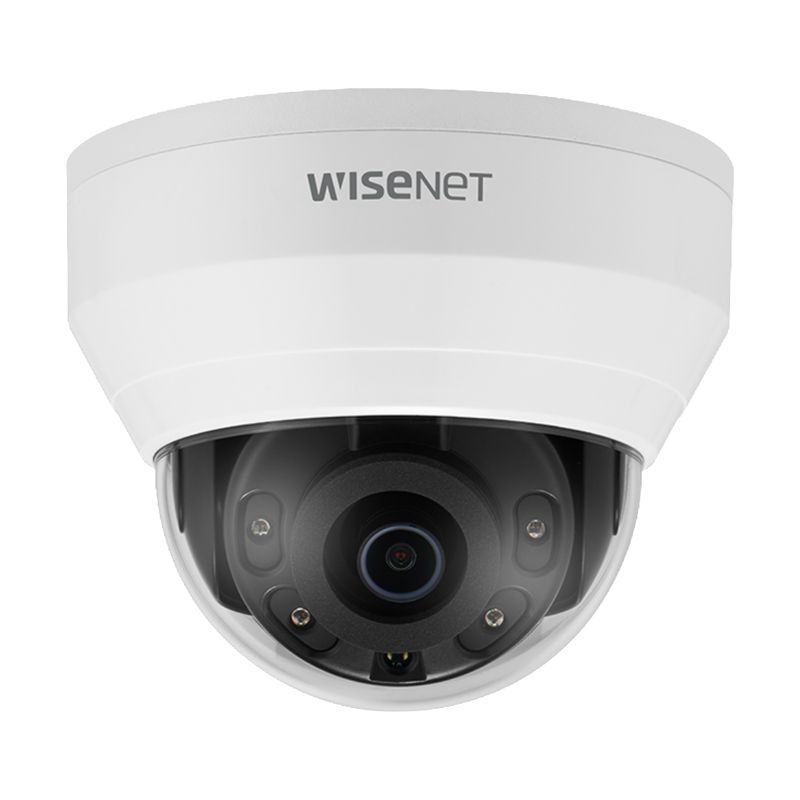

Hanwha Wisenet NEW-Q 5MP Indoor Dome Camera
Product Overview
FEATURES
- Max. 5Megapixel (2592 x 1944) resolution
- 4mm fixed lens
- 0.15Lux (Color), 0Lux (B/W, IR LED on)
- Max. 30fps@5MP (H.265 / H.264)
- H.265, H.264, MJPEG codec support, Multiple streaming
- Day & Night, WDR (120dB)
- Tampering, Motion detection, Defocus detection
- Micro SD / SDHC / SDXC memory slot (Max. 128GB)
- Hallway view, WiseStream II support
- IR Viewable length 20m, PoE
Product Specifications
| Video | |
| Imaging Device | 1/2.8" 5MP CMOS |
| Effective Pixels | 2592(H)x1944(V) |
| Min. Illumination Color: | 0.15Lux(F1.6, 1/30sec) BW: 0Lux(IR LED on) |
| Video Out CVBS: | 1.0 Vp-p / 75Ωcomposite, 720x480(N), 720x576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 4.0mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View H: | 79.8°/ V: 58.1°/ D: 105.9° |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0Ëš~350Ëš / 0Ëš~67Ëš / 0Ëš~355Ëš |
| Operational | |
| IR Viewable Length | 20m(65.62ft) |
| Camera Title Displayed | up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90Ëš/270Ëš) |
| Analytics | Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line |
| Alarm I/O Input | 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output |
Product Videos
Please contact our team using the Ask an Expert form or call us on 1300 737 998.
