Hanwha QND-8030R
POSMarket SKU: Z14641

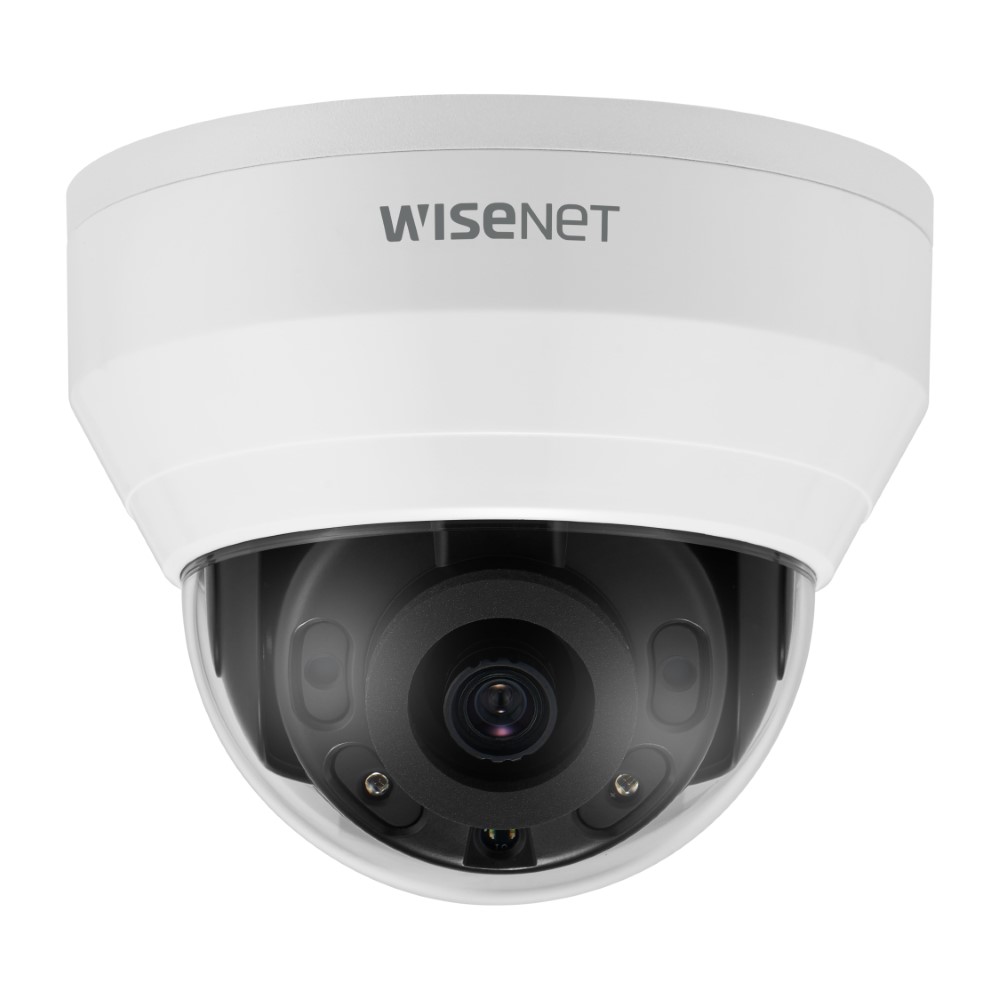

QND-8030R: Hanwha Wisenet 5MP Dome Camera, H.265, 120dB WDR, 20m IR, 6mm Fixed Lens
Hanwha Wisenet 5MP H.265 NW IR Dome Camera
Product Overview
This dome camera complies with ONVIF profiles G, S & T, making it compatible with a wide range of surveillance devices.
FEATURES
- Max. 5MP (2592 x 1944) resolution
- 6mm fixed lens
- 0.15 Lux (colour), 0 Lux (B/W, IR LED on)
- Max. 30fps at 5MP (H.265 / H.264)
- H.265, H.264, MJPEG codec support, multiple streaming
- Day and night, WDR (120dB)
- Tampering, motion detection, defocus detection
- Micro SD / SDHC / SDXC memory slot (Max. 128GB)
- Hallway view, WiseStream II support
- IR viewable length 20m, PoE
Product Specifications
| Video | |
| Imaging Device | 1/2.8" 5MP CMOS |
| Effective Pixels | 2592(H)x1944(V) |
| Min. Illumination Color: | 0.15Lux(F2.0, 1/30sec) BW: 0Lux(IR LED on) |
| Video Out CVBS: | 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 6.0mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View H: | 49.4°/ V: 37.4°/ D: 61.0° |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0Ëš~350Ëš / 0Ëš~67Ëš / 0Ëš~355Ëš |
| Operational | |
| IR Viewable Length | 20m(65.62ft) |
| Camera Title Displayed | up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90Ëš/270Ëš) |
| Analytics | Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output |
