Hanwha QND-8080R

$551.51 (incl. GST)

POSMarket SKU: Z14538

QND-8080R: Hanwha Wisenet NEW-Q 5MP Indoor VF Dome Camera, H.265, 30m IR, WDR, 3.2-10mm

Wisenet NEW-Q 5MP Indoor VF Dome Camera with night vision.

Product Overview

The Hanwha's QND-8080R 5MP Q series cameras deliver sharp and clear image quality with all essential features to create a safe and secure environment at an affordable price. They are ideal in securing small to medium-sized applications such as retail, banking and offices. The advanced compression technology of WiseStream that is incorporated into the Hanwha HAN-QND-8080R can reduce bandwidth by up to 50 percent and when combined with H.265, the bandwidth efficiency can be improved by up to 75 percent compared to the current H.264 technology. Defocus detection helps to recognise images that are out of focus and significantly improves efficiency. The Hanwha HAN-QND-8080R offers a seamless solution for small to medium-sized applications and ultimately minimises time and costs for installation.

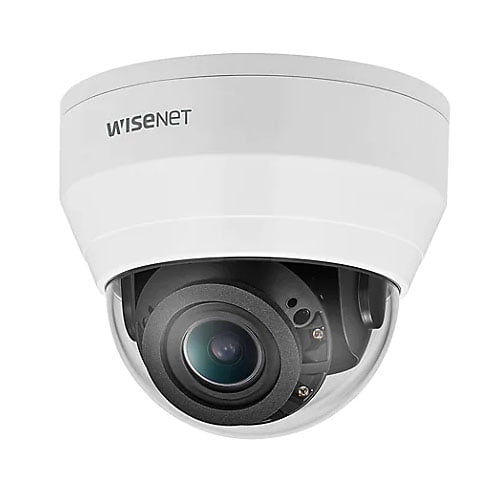

Monitor your space with the white QND-8080R 5MP Network Dome Camera from Hanwha Techwin. This unit uses a 1/2.8" progressive scan CMOS sensor to capture 2592 x 1944 resolution video at 30 fps. IR LEDs provide up to 65' of night vision. The camera's 3.2-10mm motorized varifocal lens delivers a 100.3 to 31.2°horizontal field of view. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.

Features
  • Max. 5MP resolution
  • 3.2 - 10mm motorised varifocal lens
  • Max. 30fps at 5MP (H.265/H.264)
  • H.265, H.264, MJPEG codec supported, multiple streaming
  • Day and night, WDR (120dB)
  • Motion detection, tampering, defocus detection
  • Hallway view, WiseStream II support
  • 20m IR

Product Specifications

Video
Imaging Device 1/2.8" 5MP CMOS
Resolution 5MP mode : 2592x1944, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
4MP mode : 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 15fps/12fps(60Hz/50Hz)
Min. Illumination Color: 0.15Lux(F1.6, 1/30sec)
BW: 0Lux(IR LED on)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
Lens
Focal Length (Zoom Ratio) 3.2~10mm(3.1x) motorized varifocal
Max. Aperture Ratio F1.6(Wide)~F2.9(Tele)
Angular Field of View H: 100.3°(Wide)~31.2°(Tele) / V: 72.3°(Wide)~23.5°(Tele) / D: 133.1°(Wide)~38.8°(Tele)
Focus Control Simple focus
Lens Type DC auto iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~350° / 0°~67° / 0°~355°
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR
Motion Detection 4ea, polygonal zones
Privacy Masking 6ea, rectangular zones
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
IR Viewable Length 20m(65.62ft)
