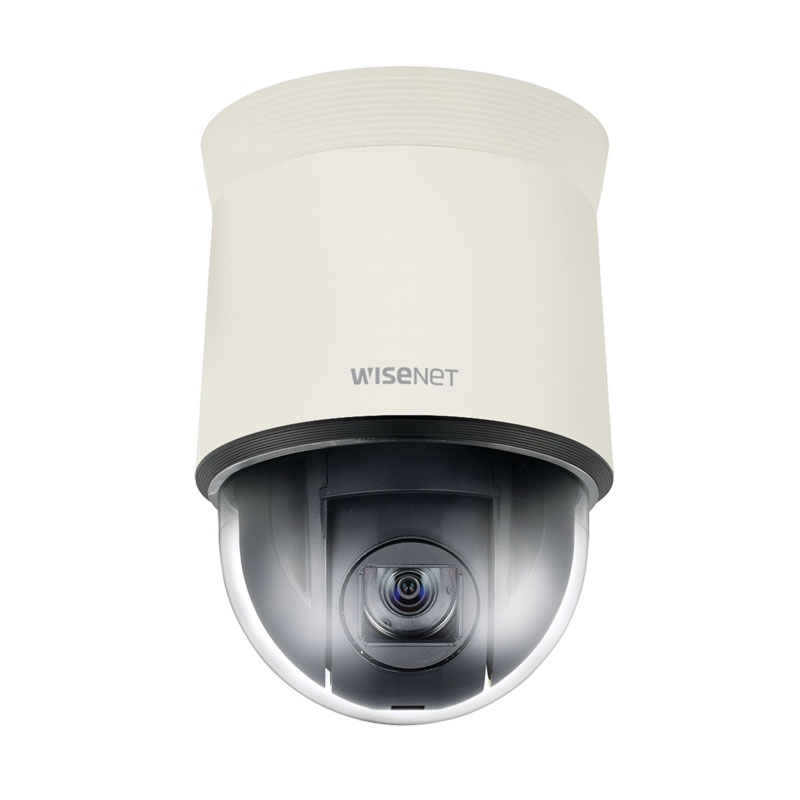

Hanwha QNP-6230H

from $1,251.25 (incl. GST)

POSMarket SKU: Z14569

This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.

Hanwha Wisenet 2MP Outdoor PTZ Camera

Product Overview

The advanced compression technology of WiseStream that is incorporated into the HAN-QNP-6230H can reduce bandwidth by up to 50% and when combined with H.265, the bandwidth efficiency can be improved by up to 75% compared to the current H.264 technology. Defocus detection helps to recognise images that are out of focus and significantly improves efficiency. Lens distortion correction easily removes imperfections in images, making image quality impeccable. Users can also adjust the optimal focus remotely via network which reduces the installation time of the camera. The HAN- QNP-6230H offers a seamless solution for small to medium sized applications and ultimately minimises time and costs for installation.

FEATURES
  • Max. 2MP (1920 x 1080) resolution
  • Max. 60fps at all resolutions (H.265 / H.264)
  • H.265, H.264, MJPEG codec supported, multiple streaming
  • Day & night (ICR), WDR (150dB), defog
  • Loitering, directional detection, fog detection, audio detection
  • Sound classification, tampering
  • Motion detection, handover
  • SD / SDHC / SDXC memory slot (Max. 512GB)
  • Hallway view, WiseStream II support
  • IR viewable length 70m
  • IP67/IP66, NEMA 4X, IK10
  • PoE/24V AC, 12V DC, bi-directional audio support

Product Specifications

VIDEO
Imaging Device 1/2.8" 2.4M CMOS
Total / Effective Pixels 1,981(H) x 1,288(V), 2.55M / 1,944(H) x 1,212(V), 2.35M
Scanning System Progressive
Min. Illumination Color : 0.2Lux (F1.6), B/W : 0.01Lux (F1.6)
S / N Ratio 50dB
Video Output CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation
LENS
Focal Length (Zoom Ratio ) 4.44 ~ 102.2mm (Optical 23x)
Max. Aperture Ratio F1.6(Wide) / F3.6(Tele)
Angular Field of View H : 61.8Ëš(Wide) ~ 3.08Ëš(Tele) / V : 36.2Ëš(Wide) ~ 1.73Ëš(Tele)
Min. Object Distance Wide : 1.5m (4.92ft), Tele : 2m (6.56ft)
Focus Control Auto / Manual / One shot AF
