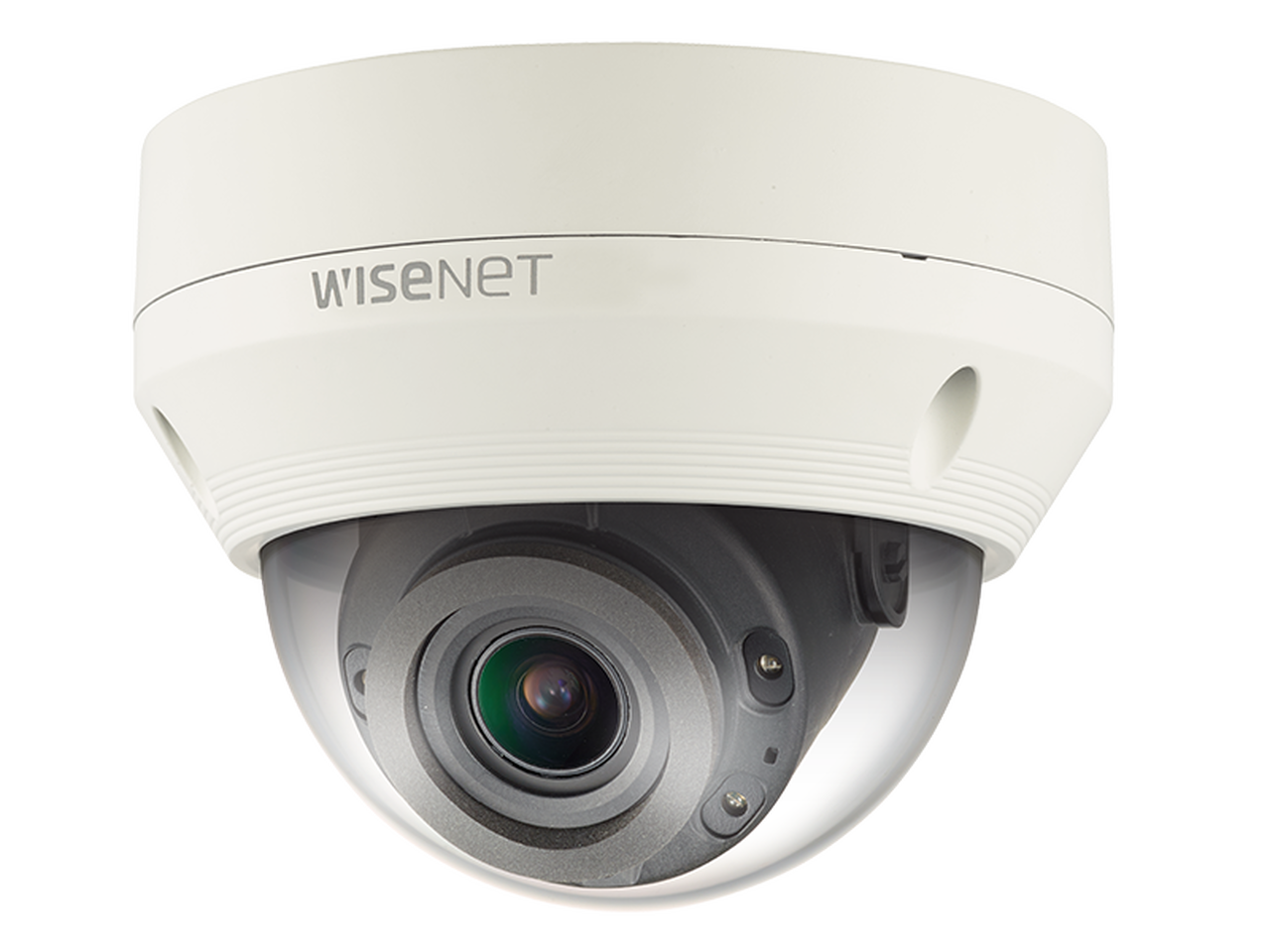

Hanwha QNV-7080R
POSMarket SKU: Z14537
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.
4MP Network IR Vandal Resistant Camera
Product Overview
Features
- Max. 4MP resolution
- 2.8 - 12mm motorised varifocal lens
- Max. 20fps at 4MP, Max. 30fps at 2MP
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day & night (ICR), WDR (120dB)
- Motion detection, tampering, defocus detection
- micro SD/SDHC/SDXC memory slot (Max. 128GB), PoE/ 12V DC
- 30m IR
- Hallway view support
- LDC support (Lens distortion correction)
Product Specifications
| Video | |
| Imaging Device | 1/3" 4MP CMOS |
| Resolution | 2592 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Max. Framerate | H.265/H.264: Max. 20fps@4MP, Max. 30fps/25fps(60Hz/50Hz) 2MP, all resolution, |
| MJPEG: Max | 15fps/12fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.15Lux(F1.4, 1/30sec); BW: 0Lux(IR LED on) |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8~12mm(4.3x) motorized varifo~26°(Tele) / V: 60.8°(Wide)~15.2°(Tele) / H: 131.3°(Wide)~30.1°cal |
| Max. Aperture Ratio | F1.4(Wide)~F3.6(Tele) |
| Angular Field of View | H: 109.7°(Wide)~26°(Tele) / V: 60.8°(Wide)~15.2°(Tele) / H: 131.3°(Wide)~30.1°(Tele) |
| Focus Control | Simple focus |
| Lens Type | DC auto iris(IR corrected) |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~350° / 0°~67° / 0°~355° |
| Operational | |
| Camera Title | Displayed up to 20 characters per line(Max.5 lines) |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Defocus detection, Motion detection, Tampering |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail; Notification via e-mail; SD/SDHC/SDXC or NAS recording at event triggers; Alarm output |
| Audio In | Line in |
| Supply voltage: | 2.5VDC(4mA), Input impedance: 2K Ohm |
| IR Viewable Length | 30m(98.42ft) |
