Hanwha SNB-6004
POSMarket SKU: Z14670

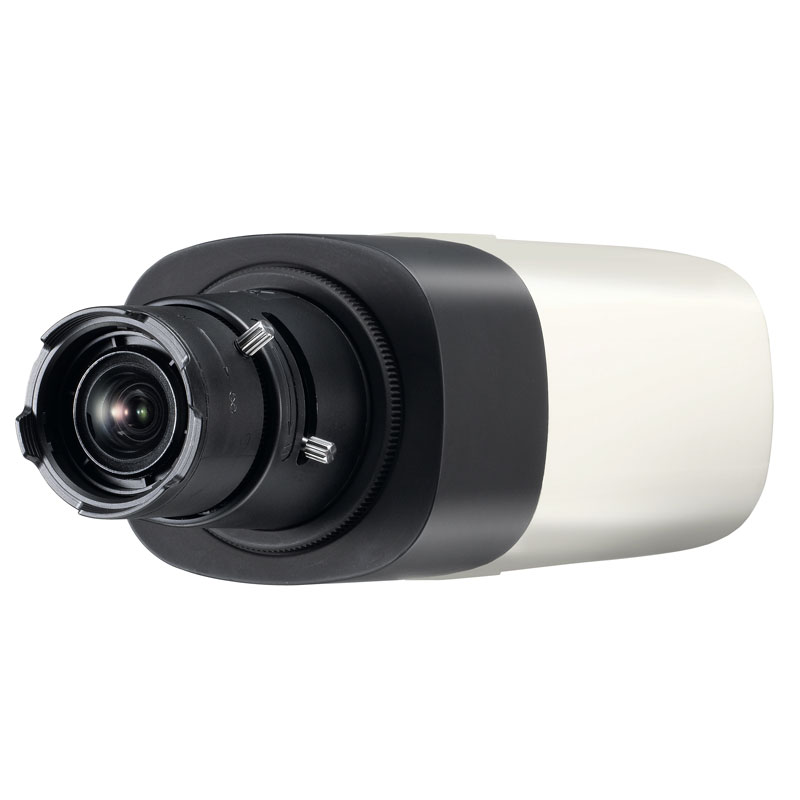

SNB-6004: Hanwha Wisenet 2MP Indoor Box Camera, H.264, 60fps, 120dB WDR, P-Iris, No Lens
Hanwha Wisenet 2MP Indoor Box Camera
Product Overview
FEATURES
- Max. 2MP resolution (1920 x 1080)
- Full HD (1080p) resolution
- Max. 60fps at all resolutions
- SSLE (Samsung super light enhancer): 0.1Lux
- Enhanced WDR (120dB)
- 30fps at 2MP WDR
- H.264 & MJPEG dual codec
- SD / SDHC / SDXC memory slot
- Multi-crop streaming
- PoE, UPnP, bi-directional audio support
Product Specifications
| VIDEO | |
| Imaging Device | 1/2.8" 2.38M CMOS |
| Total Pixels | 1,952(H) x 1,116(V) |
| Effective Pixels | 1,944(H) x 1,104(V) |
| Scanning System | Progressive |
| Min. Illumination | Color : 0.1Lux (F1.2, 50IRE), 0.001Lux (2sec, 50IRE), 0.03Lux (F1.2, 30IRE) B/W : 0.01Lux (F1.2, 50IRE), 0.002Lux (F1.2, 30IRE) |
| S / N Ratio | 50dB |
| Video Output | CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for Installation DIP Connector Type |
| LENS | |
| Focus Control | Simple focus / Manual, Remote control Via network, Button Control (Manual, Simple focus, Day & Night) |
| Lens Type | Manual / DC Auto Iris, P-Iris |
| Mount Type | C / CS |
| OPERATIONAL | |
| Camera Title | Off / On (Displayed up to 45 Characters) |
| Day & Night | Auto (ICR) / Color / B/W / External / Schedule |
| Backlight Compensation | Off / BLC |
| Wide Dynamic Range | 120dB |
| Contrast Enhancement | SSDR (Off / On) |
| Digital Noise Reduction | SSNRIII (2D + 3D Noise filter) (Off / On) |
| Digital Image Stabilization | Off / On |
| Defog | Off / Auto / Manual |
| Motion Detection | Off / On (4ea 4 points polygonal zones) |
| Privacy Masking | Off / On (32 zones with 4 points of polygonal) |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti Flicker (2 ~ 1/12,000sec) |
| Flip / Mirror | Off / On Intelligent video analytics Tampering, Virtual line, Enter / Exit, (Dis) Appear, Audio detection, Face detection Alarm I/O Input 1ea / Output 1ea Remote Control Interface RS-485 |
| RS-485 Protocol | Samsung-T/E, Pelco-P/D, Sungjin, Panasonic, Honeywell, AD, Vicon, GE, Bosch |
| Alarm Triggers | Motion detection, Tampering, Audio detection, Face Detecton, Video analytics, Alarm input, Network disconnection |
| Alarm Events | File Upload Via FTP and E-mail, Notification via e-mail, |
| Local Storage | (SD / SDHC / SDXC) or NAS Recording at Event (Alarm Triggers), External output |
