Hanwha TNB-9000
$18,334.66 (incl. GST)
POSMarket SKU: Z14664
TNB-9000: *SpOrd* Hanwha Wisenet 32MP 8K Indoor Box Camera, H.265, 15fps, DWDR, No Lens

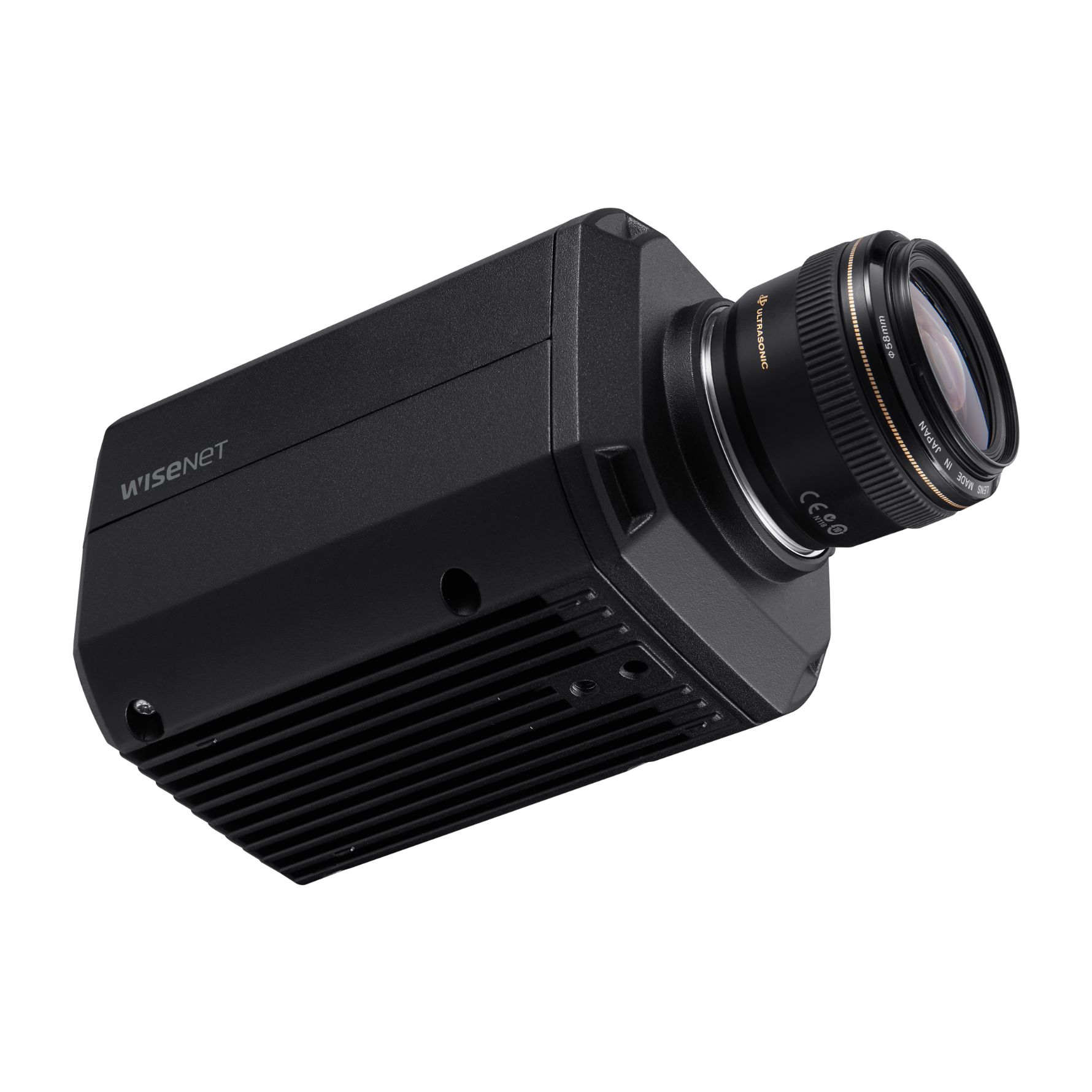

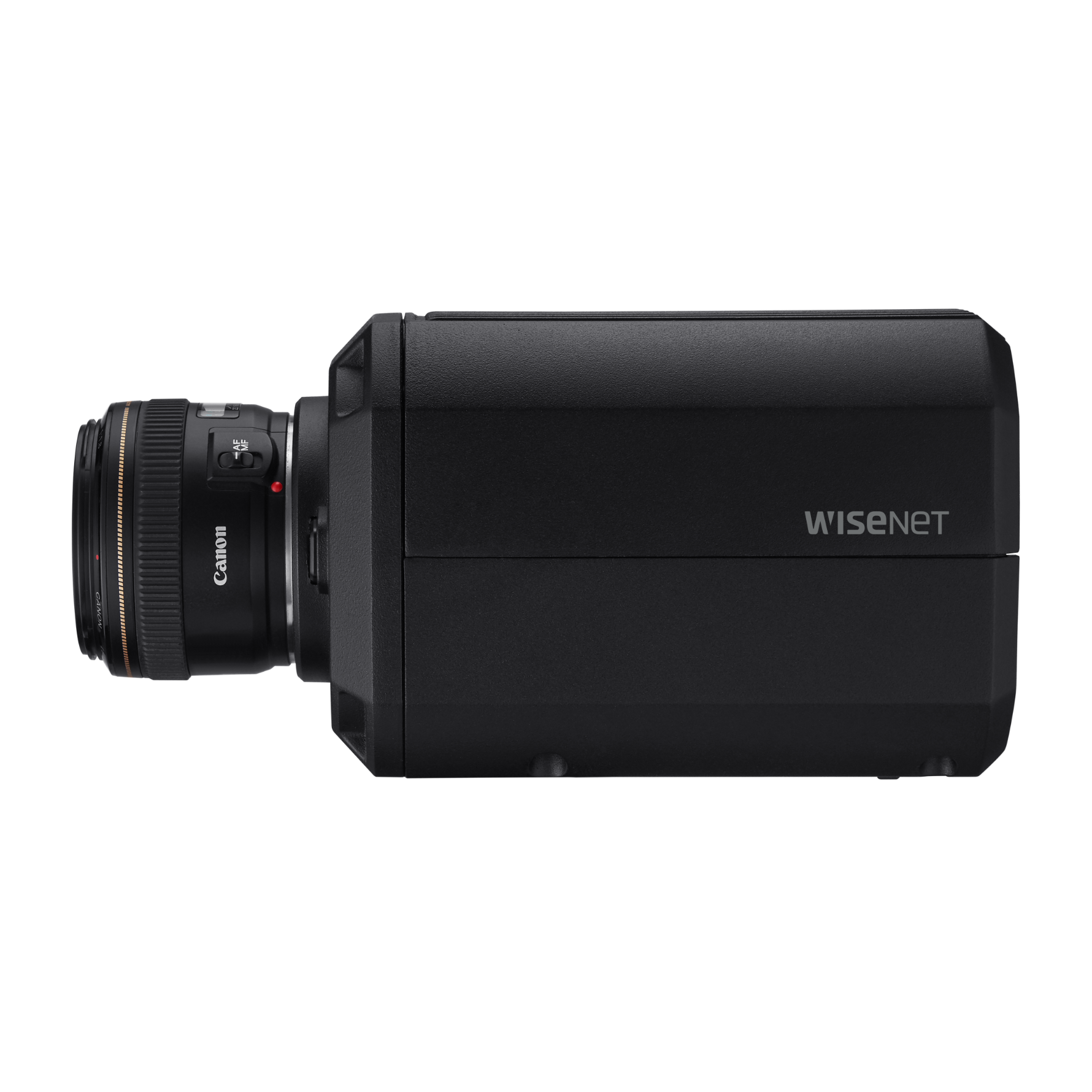

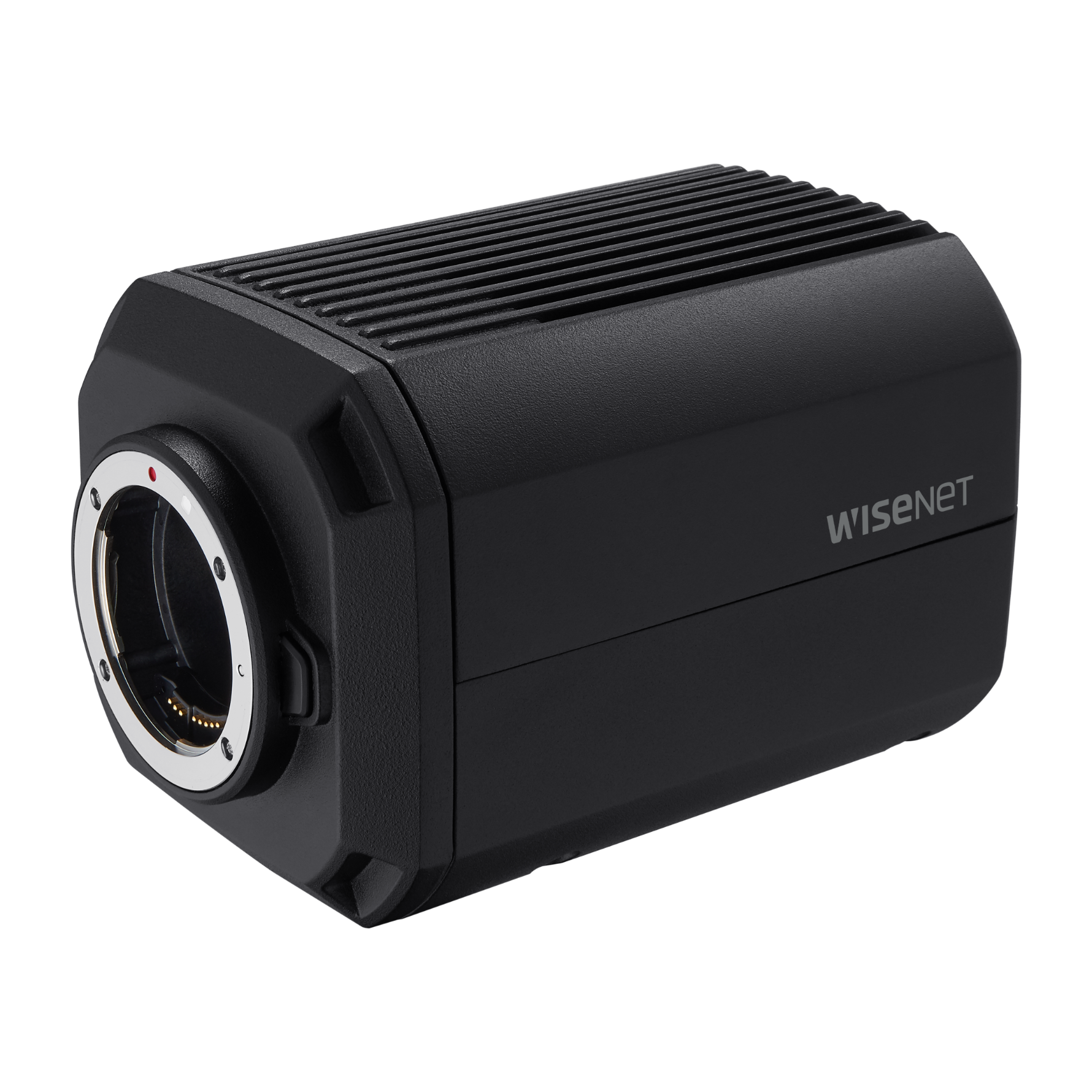

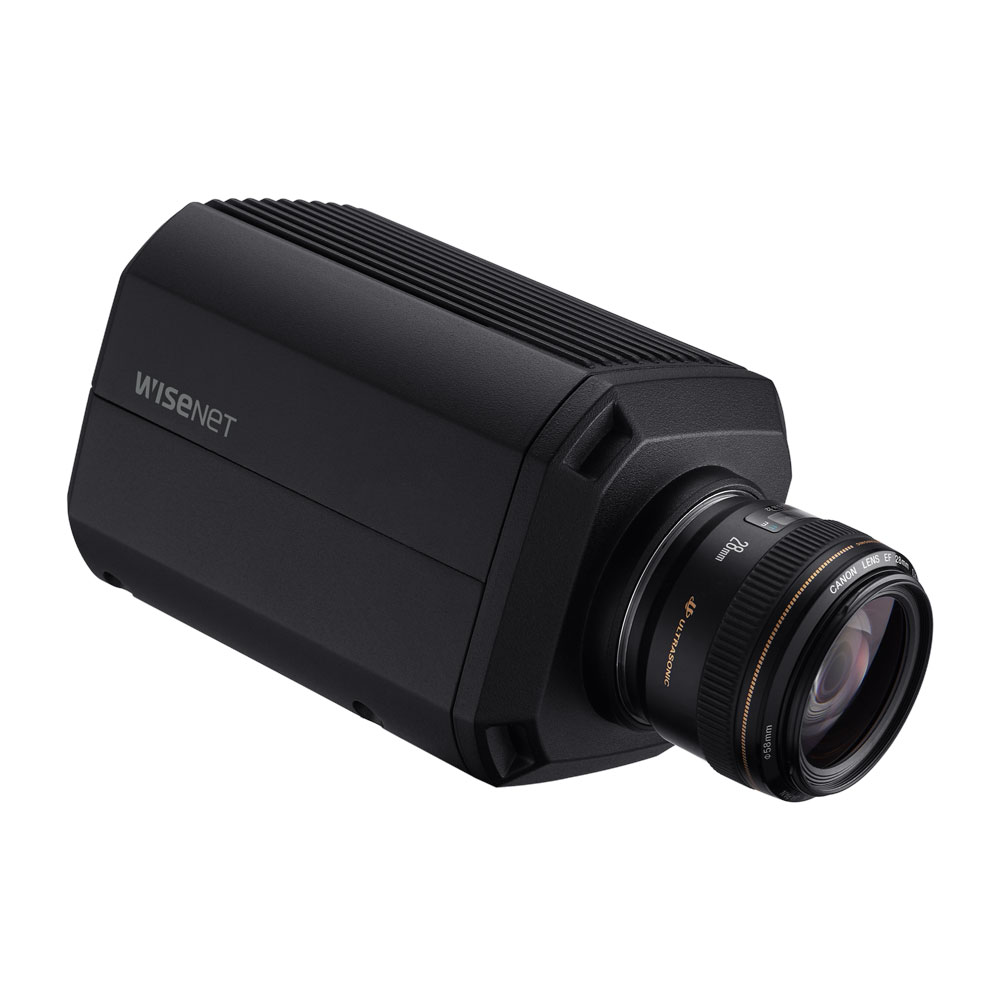

Hanwha Wisenet 32MP 8K Indoor Box Camera
Product Overview
Monitor your room with the black TNB-9000 8K UHD Network Box Camera (No Lens) from Hanwha Techwin. This unit uses a full-frame CMOS sensor to capture 7680 x 4320 resolution video at 15 fps. An IR cut filter enables day and night functionality. The camera is compatible with Canon EF lenses. Two-way audio is possible thanks to an audio input and output. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. An HDMI port provides 1080p video output
This box camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices.
FEATURES
This box camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices.
FEATURES
- 43.3mm full-frame CMOS image sensor
- Max.15fps at 8K, 20fps at 24MP, 30fps at 15MP, 60fps at 4K
- Intelligent video analytics based on AI (object detection/classification, Attribute, BestShot)
- HDMI (1080p 30fps) video output
- H.265/H.264: main/high, MJPEG
- Single micro SD slot (Up to 256GB)
- WiseStream II support
- RJ-45, SFP slot(100/1000Mbps)
- HPoE(IEEE802.3bt, class 5), 12VDC
Product Specifications
| Video | |
| Imaging Device | Diagonal 43.3mm Full-frame CMOS |
| Resolution | 7680x4320, 7360x4128, 6016x3384, 6016x4008, 5472x3648, 4768x3184, 4608x2592, 3840x2160, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 |
| Max. Framerate | H.265/H.264: 32MP(8K) @ Max. 15fps (Mode 0) H.265/H.264: 24MP @ Max. 20fps (Mode 1) H.265/H.264: 15MP @ Max. 30fps (Mode 2) H.265/H.264: 8MP(4K) @ Max. 60fps (Mode 3) |
| Min. Illumination | Color : 0.015Lux(F1.4, 1/30sec) B/W : 0.0015Lux(F1.4, 1/30sec) |
| Video Out | HDMI: 1080p@30/25fps (60/50Hz) |
| Lens | |
| Angular Field of View | Canon 24mm f1.4L, Auto-Iris (EF 24mm f/1.4L II USM) : Horizontal field of view: 8K 62.1° Canon 35mm f1.4L, Auto-Iris (EF 35mm f/1.4L II USM) : Horizontal field of view: 8K 44.5° Canon 50mm f1.4, Auto-Iris (EF 50mm f/1.4 USM) : Horizontal field of view: 8K 31.6° Canon 85mm f1.2L, Auto-Iris (EF 85mm f/1.2L II USM) : Horizontal field of view: 8K 19.2° Canon 100mm f2.0, Auto-Iris (EF 100mm f/2 USM) : Horizontal field of view: 8K 16.1° Canon 70-200mm f2.8L, Auto-Iris, Vari Focal (EF 70?200mm f/2.8L USM) : Horizontal field of view: 8K 23.2° ~ 8.3° |
| Focus Control | Simple focus |
| Lens Type | Canon EF mount Lens |
| Mount Type | Canon EF mount |
| Optional Lens | Canon 24mm f1.4L, Auto-Iris (EF 24mm f/1.4L II USM) Canon 35mm f1.4L, Auto-Iris (EF 35mm f/1.4L II USM) Canon 50mm f1.4, Auto-Iris (EF 50mm f/1.4 USM) Canon 85mm f1.2L, Auto-Iris (EF 85mm f/1.2L II USM) Canon 100mm f2.0, Auto-Iris (EF 100mm f/2 USM) Canon 70-200mm f2.8L, Auto-Iris, Vari Focal (EF 70-200mm f/2.8L USM) |
| Operational | |
| Camera Title | Displayed up to 75 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, DWDR |
| Digital Noise Reduction | SSNRâ…¤ |
| Motion Detection | 8ea, 8point polygonal zones (in 32MP(8K) resolution only) |
| Privacy Masking | 6ea, Rectangular - Color: Grey/Black/White |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5 ~ 1/12,000sec) |
| Analytics | - Classified object type : Person/Face/Vehicle/License plate with attributes, BestShot per object - Analytics events based on AI engine : object detection, Directional detection, Enter/Exit, Loitering, Virtual line - Analytics events : Defocus detection, Motion detection, Appear/Disappear, Tampering, Audio detection, Sound classification |
| Serial Interface | RS-485(Samsung-T, Pelco-D/P) |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover |
| Audio In | Selectable (mic in/line in) Supply voltage: 2.5VDC (4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
