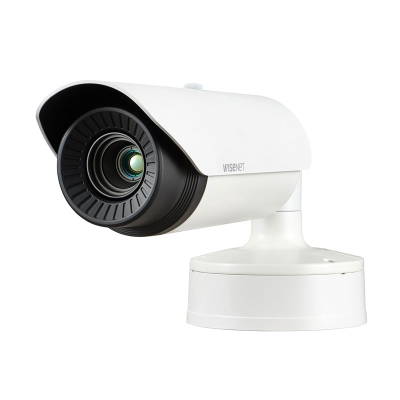

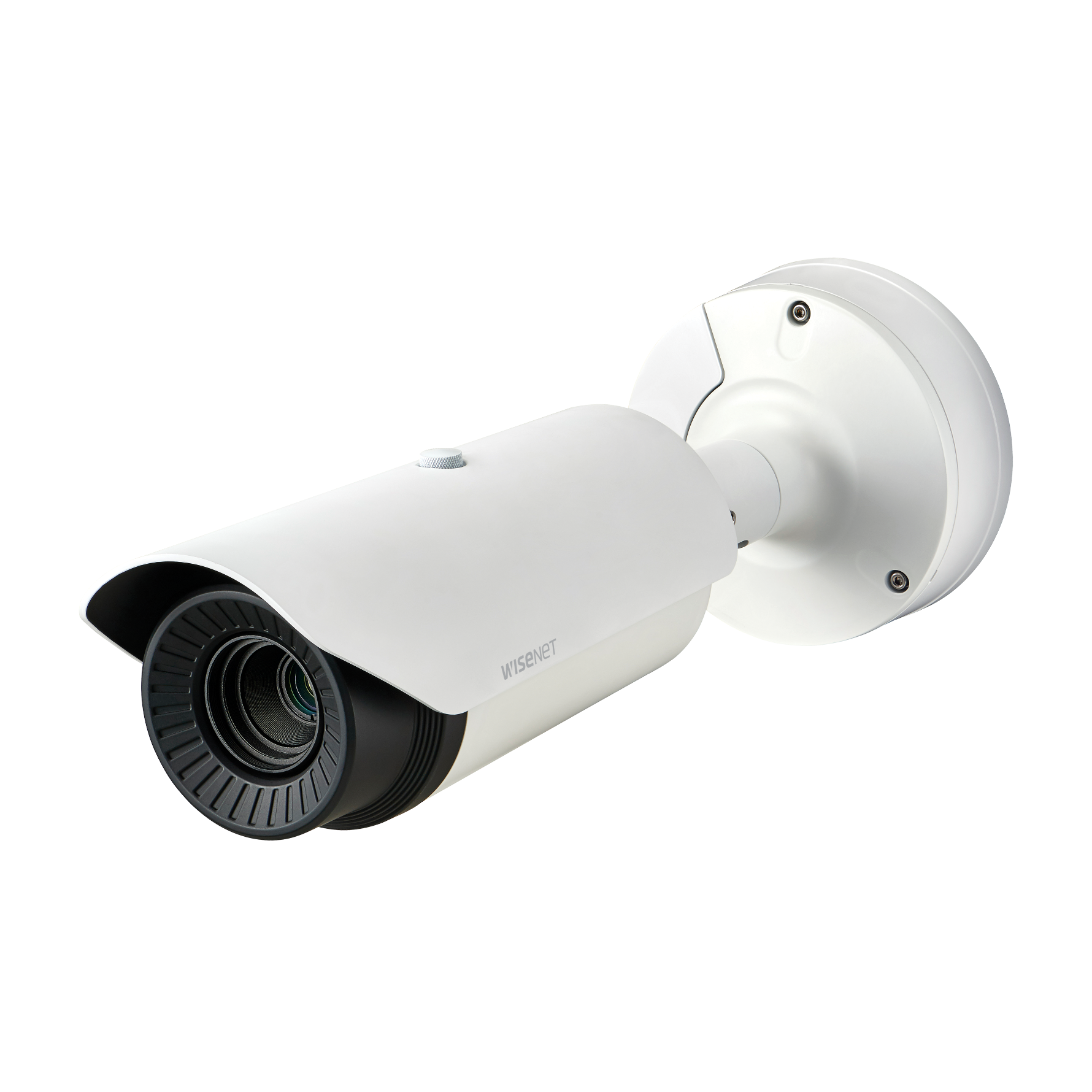

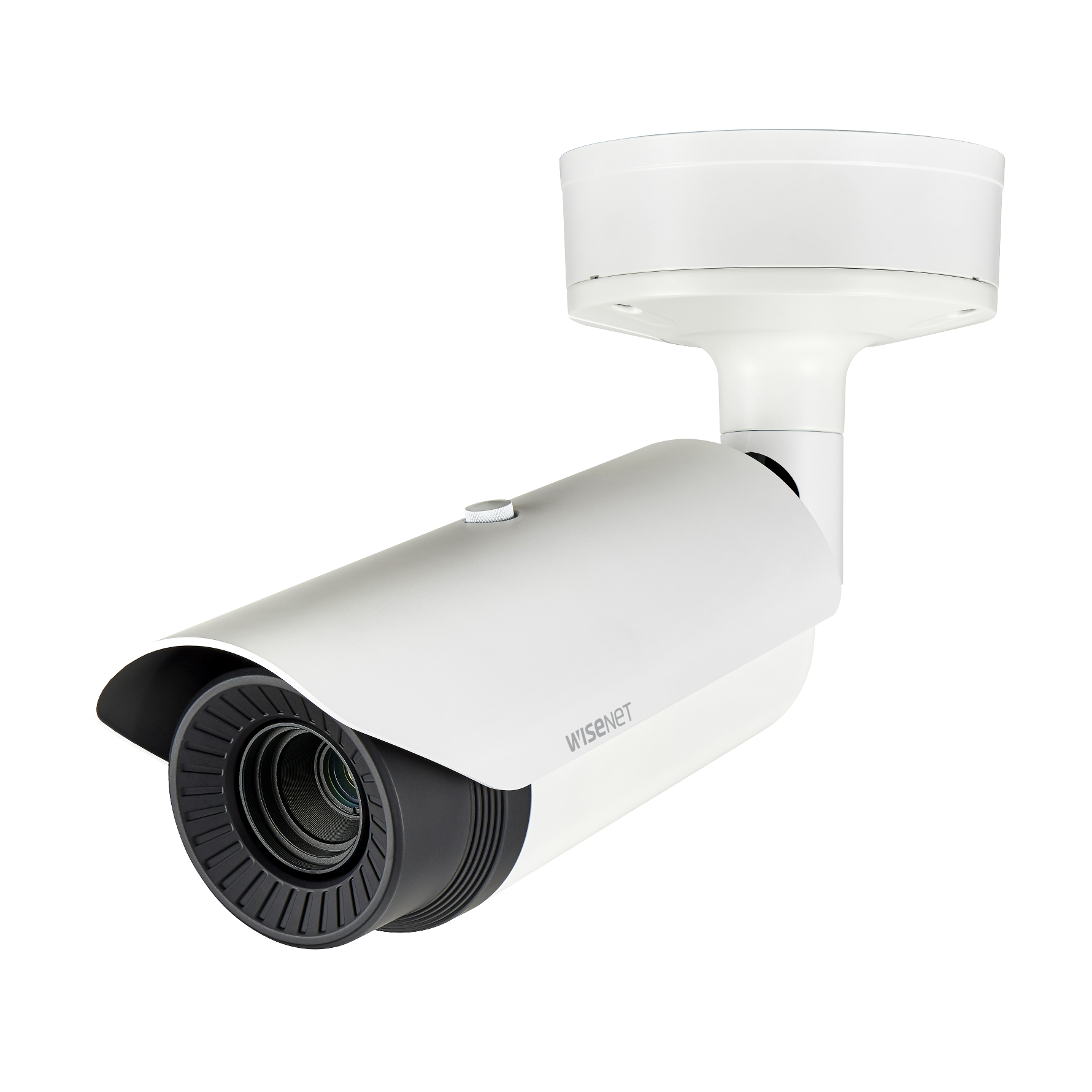

Hanwha TNO-4030T
POSMarket SKU: Z14693
This model is available in 3 different configurations. Select a configuration below or contact our experts on 1300 737 998.
Hanwha Wisenet VGA Thermal Camera
Product Overview
The Hanwha TNO-4030T or HAN-TNO-4030T provides high contrast images based on temperature differences between the object and background, so that users can detect incidents more easily. This camera can be a very powerful tool when monitoring applications where there is very little light, due to their ability to create images based on heat, making them applicable in manufacturing and industrial facilities, air and seaports and mining areas. This camera utilises reliable video and audio analytics for efficient monitoring and improves the overall security system's efficiency by automatically notifying users when abnormal behaviour is detected.
FEATURES
- Max. 640 x 480 resolution
- Built-in 13mm fixed lens
- Max. 30fps at all resolutions (H.265, H.264, MJPEG)
- H.265, H.264, MJPEG codec
- WiseStream support
- Loitering, directional detection, shock detection, temperature change detection, tampering
- Motion detection, handover
- SD / SDHC / SDXC memory slot
- IP66, IK10, NEMA 4X
- Hallway view
Product Specifications
| Video | |
| Imaging Device | Uncooled micro bolometer |
| Resolution | 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| NETD | ＜50mK |
| Pixel Size | 17µ |
| Video Out | CVBS: 1.0 Vp-p / 75Ωcomposite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 13mm fixed focal |
| Max. Aperture Ratio | F1.0 |
| Angular Field of View | H: 48.6° / V: 36.4 / D: 61.6° |
| Min. Object Distance | 5m(16.40ft) |
| Focus Control | Fixed |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Video Rotation F | lip, Mirror, Hallway view(90°/270°) |
| Analytics | Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature ditection, Sound classification, Shock detection |
| Alarm I/O | Input 1ea / Output 2ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| Color Palettes | Whitehot, Blackhot, Rainbow, Sepia, Red, Iron, Wisenet |
