Hanwha TNO-4030TR
POSMarket SKU: Z14694
This model is available in 3 different configurations. Select a configuration below or contact our experts on 1300 737 998.

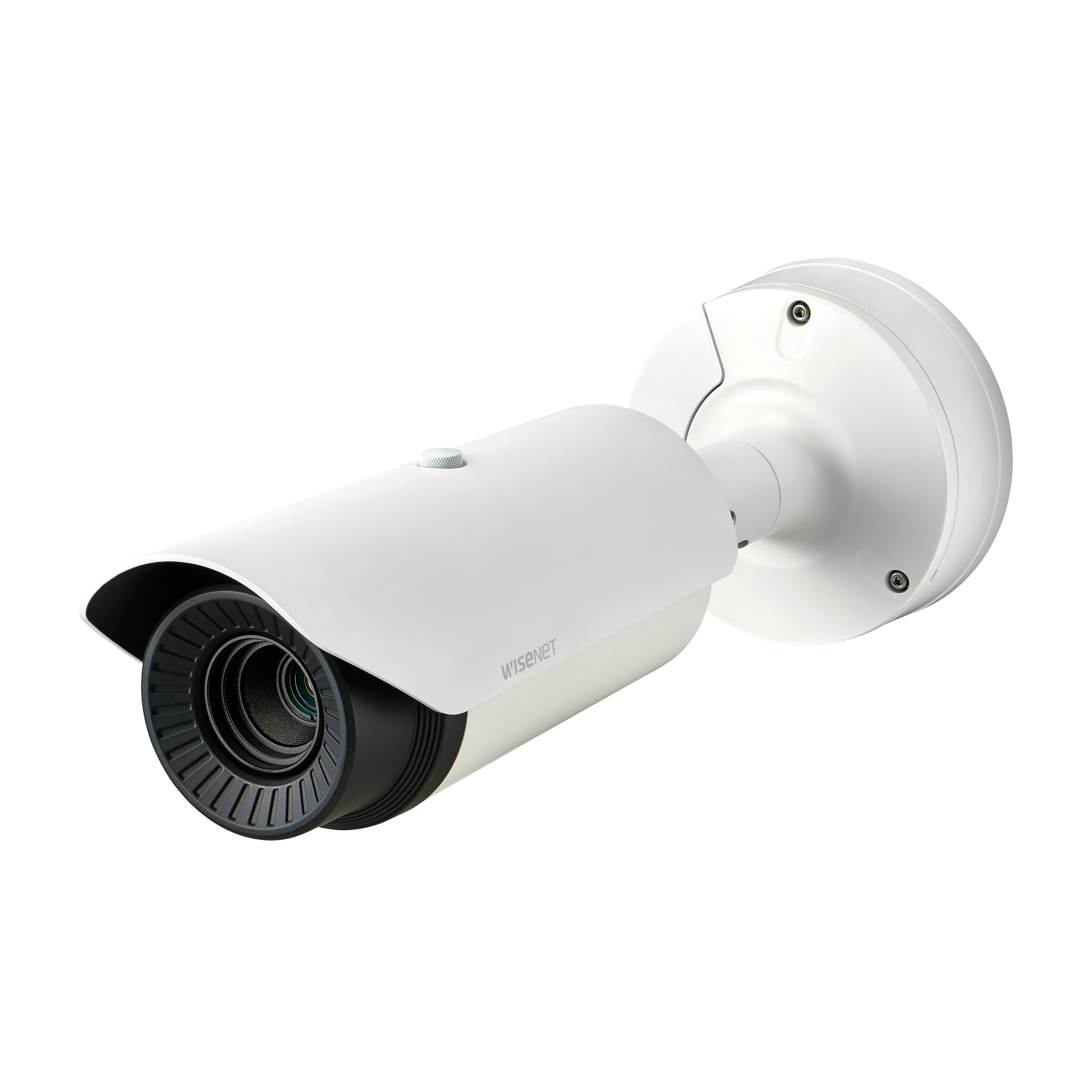

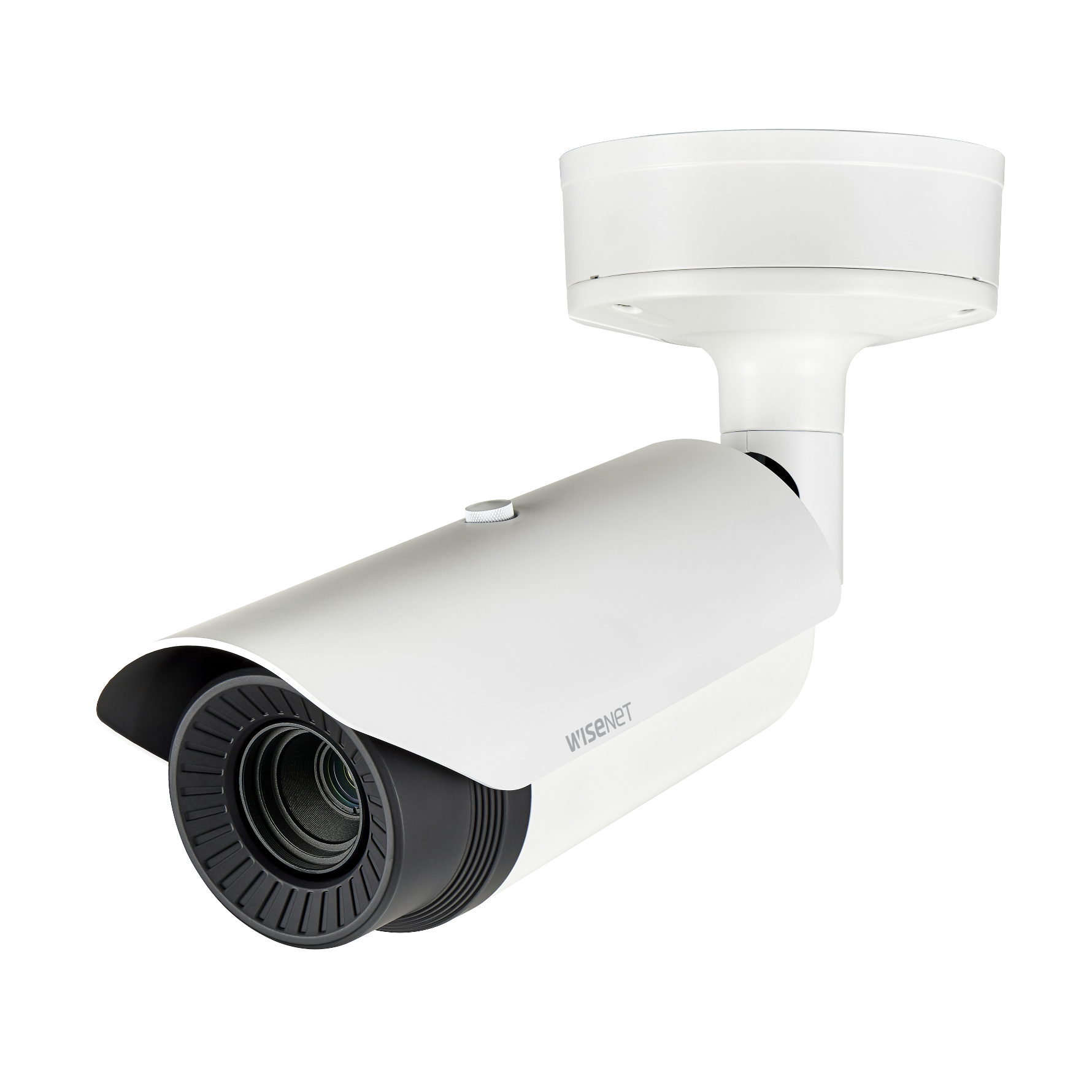

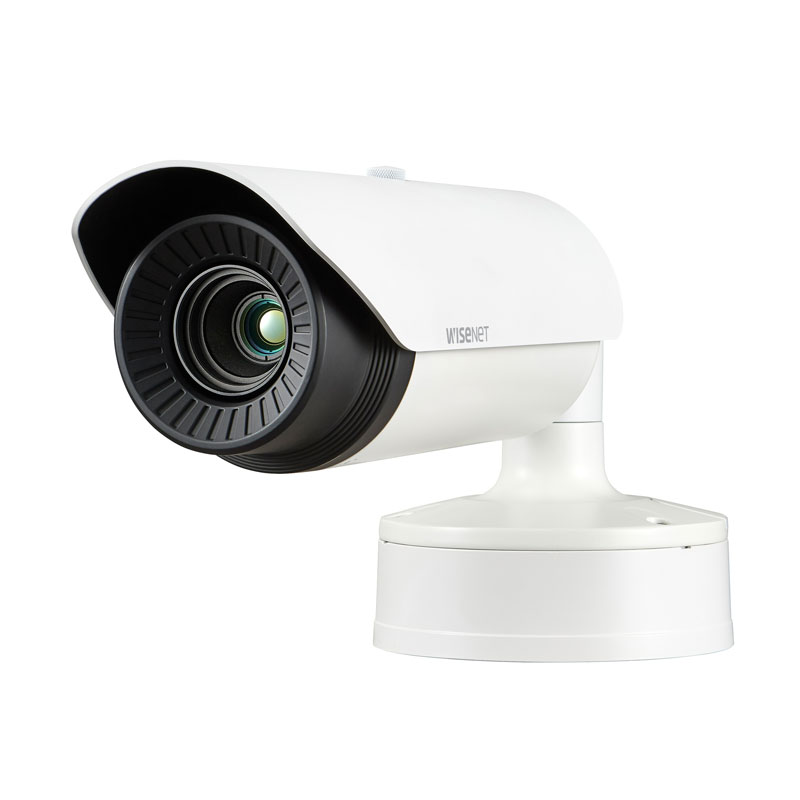

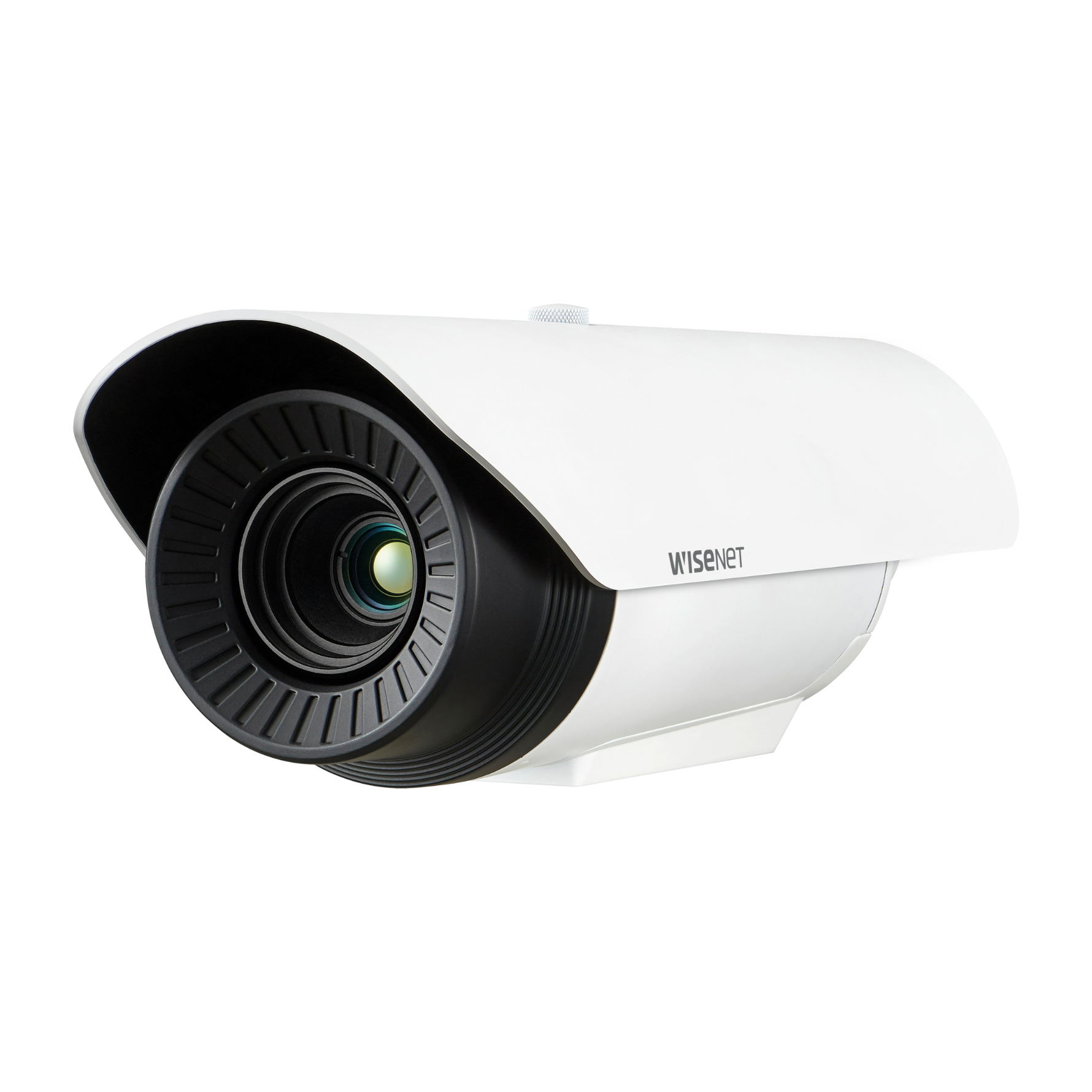

Hanwha Wisenet VGA Thermal Radiometric Bullet Camera
Product Overview
FEATURES
- Max. 640 x 480 resolution support
- Built-in 13/19mm fixed lens
- H.265, H.264, MJPEG codec
- Max. 30fps@all resolutions (H.265, H.264, MJPEG)
- Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Temperature detection, Shock detection
- Micro SD / SDHC / SDXC memory slot (Max. 256GB)
- Hallway View, WiseStreamII support
- PoE, 24VAC, 12VDC / IP66, NEMA4X, IK10
Product Specifications
| Video | |
| Imaging Device | Uncooled micro bolometer |
| Resolution | 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| NETD | ＜50mK |
| Pixel Size | 17µ |
| Video Out | CVBS: 1.0 Vp-p / 75Ωcomposite, 720x480(N), 720x576(P) for installation USB : Micro USB Type B, 1280x720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 13mm fixed focal |
| Max. Aperture Ratio | F1.0 |
| Angular Field of View | H: 48.6° / V: 36.4 / D: 61.6° |
| Min. Object Distance | 5m(16.40ft) |
| Focus Control | Fixed |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature ditection, Sound classification, Shock detection |
| Alarm I/O | Input 1ea / Output 2ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| Radiometry | |
| Temperature Detect Range | -20°C~130°C(-4°F~266°F) |
| Temperature Accuracy | ±5℃(≤100℃), ±20%(>100℃) |
| Temperature Detection | 3ea rectangular |
| Additional | Hybrid palettes, Spot temperature reading |
