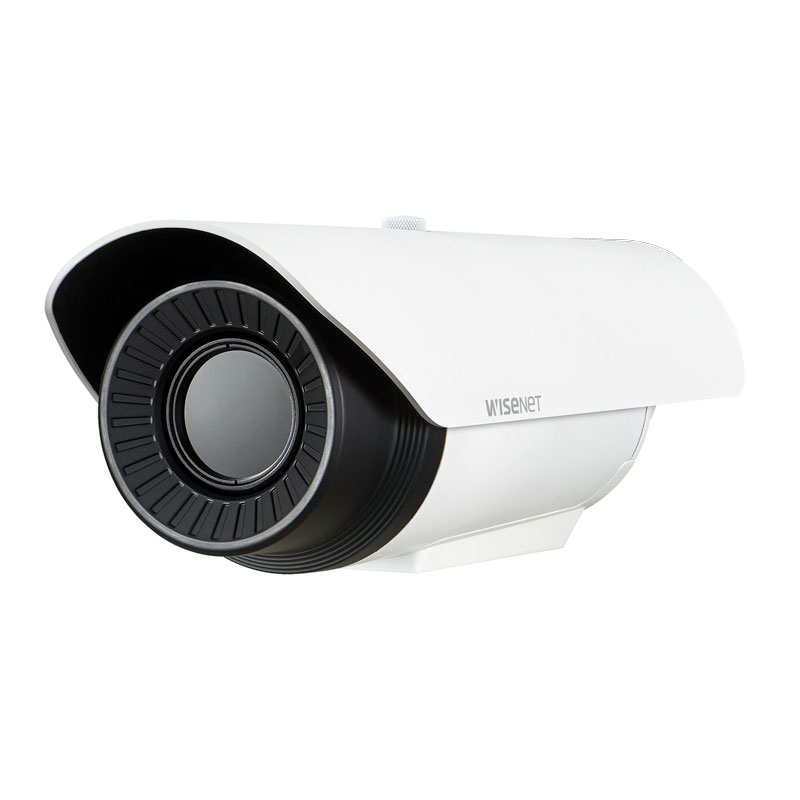

Hanwha TNO-4041T
POSMarket SKU: Z14638
TNO-4041T: *SpOrd* Hanwha Wisenet VGA Thermal Camera, H.265, WDR, IP66, IK10, 19mm, No Mount
Hanwha Wisenet VGA Thermal Camera
Product Overview
FEATURES
- Max. 640 x 480 resolution
- Built-in 19mm fixed lens
- Max. 30fps at all resolutions (H.265, H.264, MJPEG)
- H.265, H.264, MJPEG codec
- WiseStream support
- Loitering, directional detection, shock detection, temperature change detection, tampering
- Motion detection, handover
- SD / SDHC / SDXC memory slot
- IP66, IK10, NEMA 4X
Product Specifications
| VIDEO | |
| Imaging Device | Uncooled microbolometer, Pixel size : 17㎛ |
| Effective | Pixels 640(H) x 480(V) |
| NETD | <50mK |
| Spectral Range | 8 ~ 14µ |
| Video Out CVBS : | 1.0 Vpp / 75Ωcomposite, 720 x 480(N), 720 x 576(P), for installation |
| LENS | |
| Focal Length (Zoom Ratio) | 19mm fixed |
| Max. Aperture Ratio | F1.0 |
| Angular Field of View H : | 32° / V : 24.3° / D : 39.2° |
| Min. Object Distance | 11m (36.09ft) |
| Focus Control | Fixed |
| Lens / Mount Type | Board-in type |
| OPERATIONAL | |
| Camera Title | Off / On - W/W : English / Numeric / Special characters - China : English / Numeric / Special / Chinese characters - Common : Multi-line (Max. 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution |
| Motion Detection | Off / On (8ea, 8point polygonal zones), Handover |
| Privacy Masking | Off / On (32ea, polygonal zones) - Color : Gray / Green / Red / Blue / Black / White - Mosaic |
| Flip / Mirror | Off / On |
| Video & Audio Analytics | Tampering, Loitering, Directional detection, Virtual line, Fence detection, Enter/Exit, (Dis) Appear, Audio detection, Motion detection, Sound classification, Shock detection, Temperature change detection |
| Alarm I/O | Input 1ea / Output 2ea |
| Digital Image Stabilization | Off / On (Built-in Gyro sensor) |
| Remote Control | Interface RS485, RS422 |
| RS-485 Protocol | Pelco D/P, Samsung T, Honeywell, Bosch, Pansonic, Sungin, AD, Vicon, GE |
| Alarm Triggers | Alarm input, Motion detection, Video & Audio analytics, Network disconnect |
| Alarm Events | File upload Via FTP, E-mail, Notification Via E-mail, Local storage (SD/SDHC/SDXC) or NAS recording at event triggers, External output |
| Pixel count | Support |
