Hanwha TNO-4051T
POSMarket SKU: Z14639

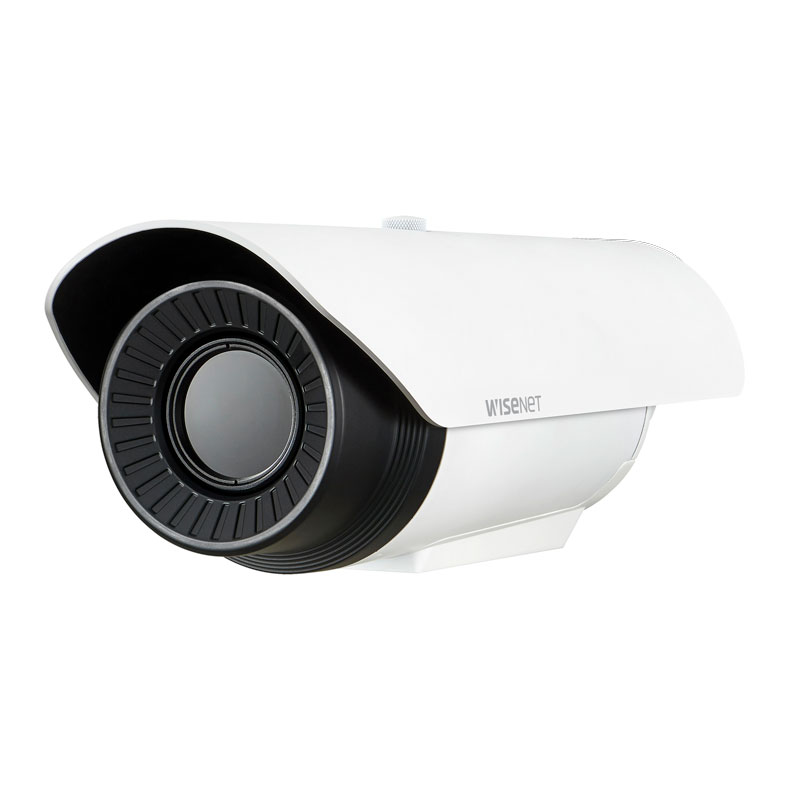

TNO-4051T: Hanwha Wisenet VGA Thermal Camera, H.265, WDR, IP66, IK10, 35mm, No Mount
Hanwha Wisenet VGA Thermal Camera
Product Overview
Please contact our team using the Ask an Expert form or call us on 1300 737 998.
Product Specifications
| VIDEO | |
| Imaging Device | Uncooled microbolometer, Pixel size : 17㎛ |
| Effective Pixels | 640(H) x 480(V) |
| NETD | <50mK |
| Spectral Range | 8 ~ 14µ |
| Video Out CVBS : | 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation |
| LENS | |
| Focal Length (Zoom Ratio) | 35mm fixed |
| Max. Aperture Ratio | F1.0 |
| Angular Field of View H : | 17.2° / V : 13° / D : 22° |
| Min. Object Distance | 36m (118.11ft) |
| Focus Control | Fixed |
| Mount Type | Board-in type |
| OPERATIONAL | |
| Camera Title | Off / On - W/W : English / Numeric / Special characters - China : English / Numeric / Special / Chinese characters - Common : Multi-line (Max. 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution |
| Motion Detection | Off / On (8ea, 8point polygonal zones), Handover |
| Privacy Masking | Off / On (32ea, polygonal zones) - Color : Gray / Green / Red / Blue / Black / White - Mosaic |
| Flip / Mirror | Off / On |
| Video & Audio Analytics | Tampering, Loitering, Directional detection, Virtual line, Fence detection, Enter/Exit, (Dis) Appear, Audio detection, Motion detection, Sound classification, Shock detection, Temperature change detection |
| Alarm I/O | Input 1ea / Output 2ea |
| Digital Image Stabilization | Off / On (Built-in Gyro sensor) |
| Remote Control Interface | RS485, RS422 |
| RS-485 Protocol | Pelco D/P, Samsung T, Honeywell, Bosch, Pansonic, Sungin, AD, Vicon, GE |
| Alarm Triggers | Alarm input, Motion detection, Video & Audio analytics, Network disconnect |
| Alarm Events | File upload Via FTP, E-mail, Notification Via E-mail, Local storage (SD/SDHC/SDXC) or NAS recording at event triggers, External output |
| Pixel count | Support |
