Hanwha TNV-7010RC
$1,306.11 (incl. GST)
POSMarket SKU: Z14636
TNV-7010RC: *SpOrd* Hanwha Wisenet 3MP Corner Mount Camera, H.265, 30fps, 120dB WDR, 2.8mm

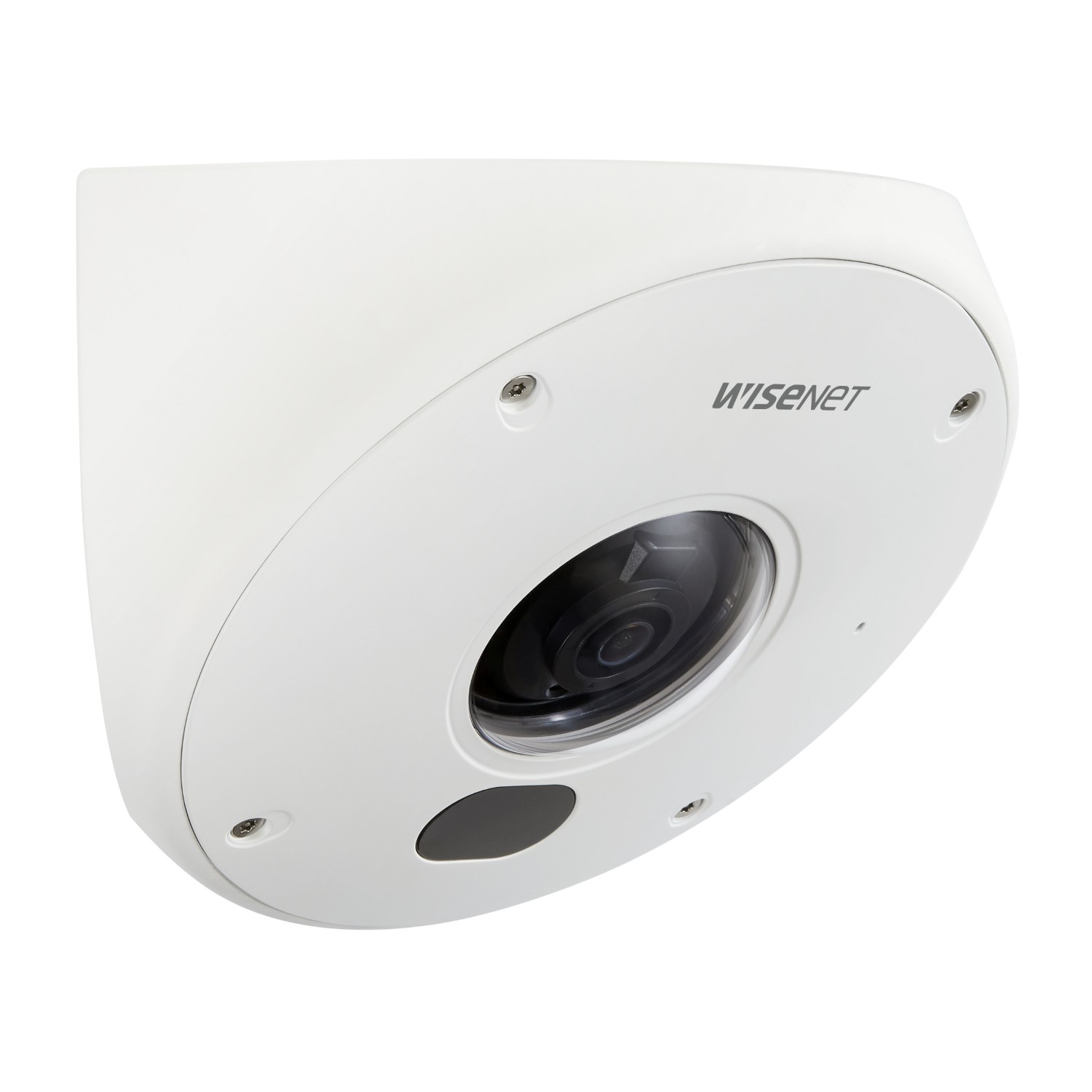

Hanwha Wisenet 3MP Corner Mount Camera
Product Overview
Keep a watchful eye on your property with the white WiseNet T Series TNV-7010RC 3MP Outdoor Network Corner-Mount Camera with Night Vision from Hanwha Techwin. Equipped with a 1/2.8" 3.2MP CMOS sensor and a 2.8mm fixed lens, the TNV-7010RC captures video at resolutions up to 2048 x 1536 at 30 fps in a 102 x 75° field of view. The camera has an automatic IR cut filter and IR LEDs for night vision with an effective range of up to 33'. Image enhancement features, including a 120 dB wide dynamic range and automatic white balance, allow you to capture images in varying lighting conditions.
The TNV-7010RC has audio input and output ports as well as a built-in microphone for two-way audio communication. It also has an internal microSD card slot for onboard storage of footage, and is IP66 and IK10+ rated for weather and vandal resistance. PoE enables you to run just one cable for both data and power while ONVIF compliance ensures compatibility with a wide range of surveillance devices.
FEATURES
The TNV-7010RC has audio input and output ports as well as a built-in microphone for two-way audio communication. It also has an internal microSD card slot for onboard storage of footage, and is IP66 and IK10+ rated for weather and vandal resistance. PoE enables you to run just one cable for both data and power while ONVIF compliance ensures compatibility with a wide range of surveillance devices.
FEATURES
- Max. 3MP (2048 x 1536) resolution
- Max. 30fps at all resolutions (H.265/H.264/MJPEG)
- Built-in 2.8mm fixed lens
- H.265, H.264, MJPEG codec support, multiple streaming
- Day and night, WDR (120dB)
- Video and audio analytics, shock detection
- microSD/SDHC/SDXC memory slot (Max. 256GB)
- Hallway view, WiseStream II support
- PoE, DC 12V, IK10+
Product Specifications
| VIDEO | |
| Imaging Device | 1/2.8" 3.2M CMOS |
| Total Pixels | 2065(H) x 1565(V) |
| Effective Pixels | 2065(H) x 1553(V) |
| Scanning System | Progressive Scan |
| Min. Illumination | Color : 0.3 lux (F2.0, 1/30sec) / B/W : 0 lux (F2.0, 1/30sec) |
| S / N Ratio | 50dB |
| Video Out CVBS : 1.0 Vp-p / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation | |
| LENS | |
| Focal Length (Zoom Ratio) | 2.8mm Fixed |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 102Ëš, V:75Ëš, D: 129Ëš |
| Min. Object Distance | 0.4m |
| Focus Control | Manual |
| Lens Type | Fixed |
| Mount Type | Board-in type |
| PEN / TILT / ROTATE | |
| Pan / Tilt / Rotate range | 0˚ / ±15˚ / 0˚ |
| OPERATIONAL | |
| IR Viewable Length | 10m (32.8ft) with 940nm IR LED |
| Camera Title | Off / On (Displayed up to 85 characters) - W/W : English / Numeric / Special characters - China : English / Numeric / Special / Chinese characters - Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution |
| Day & Night Auto | (ICR) / Color / B/W / External / Schedule |
| Backlight Compensation | Off / BLC / HLC (Masking/Dimming), WDR |
| Wide Dynamic Range | 120dB |
| Contrast Enhancement | SSDR (Off / On) |
| Digital Noise Reduction | SSNR5 (2D+3D noise filter) (Off / On) |
| Digital Image Stabilization | Off / On |
| Defog | Auto / Manual / Off |
| Motion Detection | Off/ On (8ea, 8point polygonal zones), Handover |
| Privacy Masking | Off / On (32ea, polygonal zones) - Color : Grey / Green / Red / Blue / Black / White - Mosaic |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium) |
| Contrast Level adjustment | LDC On / Off (5 levels with Min. / Max.) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
| Digital | PTZ 24X, Digital PTZ (Preset, Group) Flip / Mirror On / Off, Hallway view : 90Ëš/270Ëš |
| Video & Audio Analytics | Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line, Ente r/ Exit, Appear / Disappear, Audio detection, Face detection, Motion detection, Digital auto tracking, Sound classification, Shock detection |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Alarm input, Motion detection, Video & Audio analytics, Network disconnect |
| Alarm Events | File upload via FTP & E-Mail, Notification via E-Mail, Local storage (SD/SDHC/SDXC) or NAS recording at event triggers, External output, DPTZ preset |
| Audio In | Selectable (Mic in/Line In), Built-in MIC Supply voltage : 2.5VDC (4mA), Input impedance: approx. 2K Ohm |
| Audio out | Line out, Max output level : 1 Vrms |
| Pixel Counter | Support |
