Hanwha XND-8020F
$464.89 (incl. GST)
POSMarket SKU: Z14684
XND-8020F: *SpOrd* Hanwha Wisenet 5MP Indoor Dome Camera, H.265, 30fps, 120dB WDR, 3.7mm

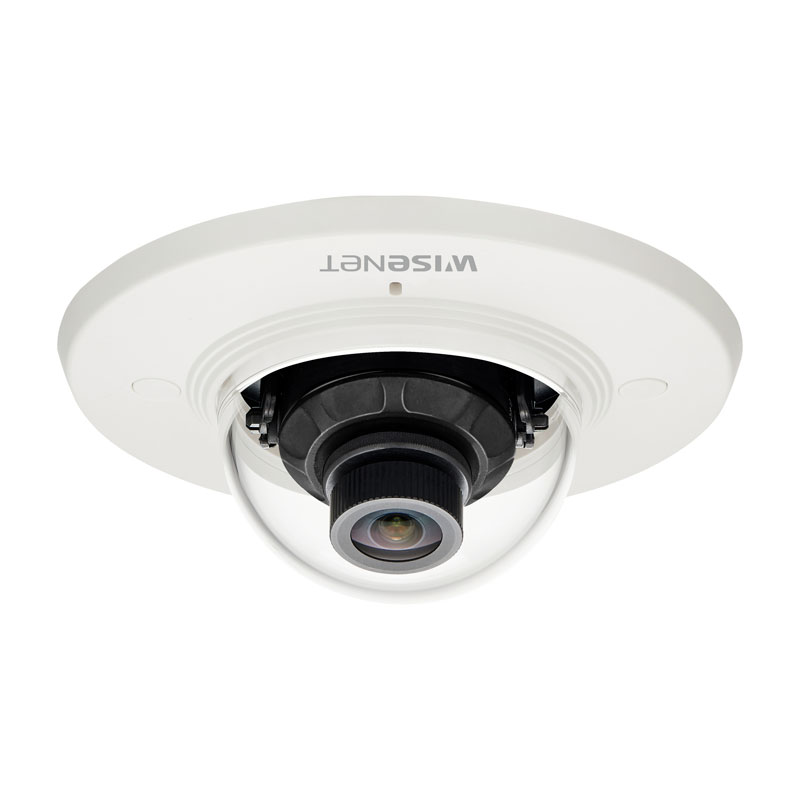

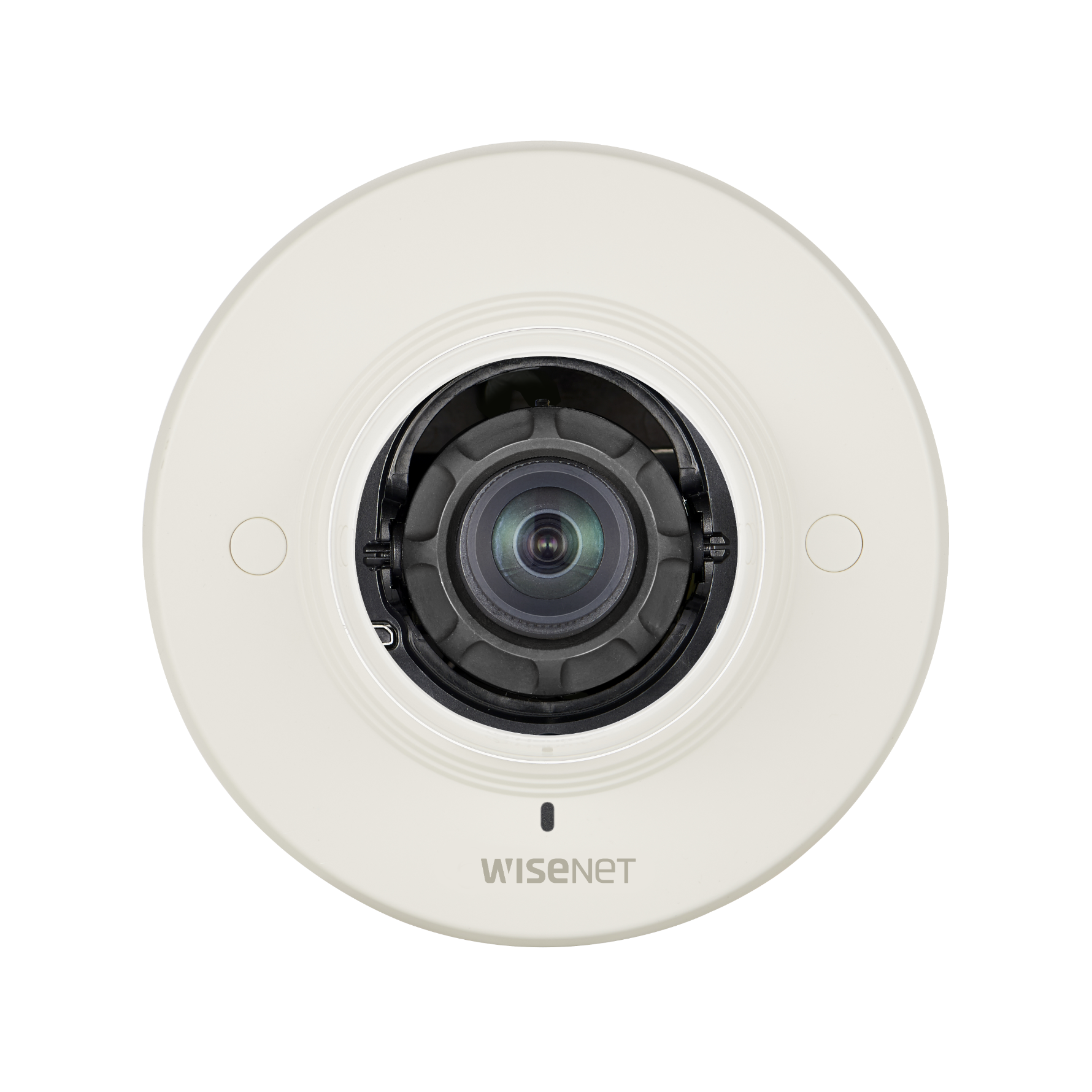

Hanwha Wisenet 5MP Indoor Dome Camera
Product Overview
With cutting-edge WDR technology, the Hanwha HAN-XND-8020F conquers limitations found in conventional WDR cameras while producing clear and vivid images through 120dB WDR. Part of the Wisenet X series, this camera can achieve optimal performance in low-light conditions by capturing and producing flawless images regardless of the environment or time of day. Using WiseStream II, the HAN-XND-8020F reduces data by up to 99% when combined with H.265 compression, through this, system costs are greatly reduced without compromising image quality. Installation is convenient as you can connect cameras and mobile devices through USB and Wi-Fi, so no additional devices are required, saving time and money. The HAN-XND-8020F is jam-packed with other features such as loitering detection, queue management, sound classification, lens distortion correction, fog detection and PTZ handover, making this camera a holistic solution for a variety of security environments.
FEATURES
FEATURES
- Built-in 3.7mm fixed lens
- Max. 30fps at all resolutions (H.265 / H.264)
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day and night (ICR), WDR (120dB), defog
- Loitering, directional detection, fog detection, audio detection
- Digital auto tracking, sound classification, tampering
- Motion detection, handover
- SD / SDHC / SDXC memory slot
- Hallway view, WiseStream II support
- LDC support (lens distortion correction)
Product Specifications
| Video | |
| Imaging Device | 1/1.8" 6MP CMOS |
| Resolution | 2560x1920, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.16Lux(F1.6, 1/30sec) BW: 0.16Lux(F1.6, 1/30sec) |
| Video Out | USB: Micro USB Type B, 1280x720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 3.7mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 97.5°, V: 71.9°, D: 126.2° |
| Min. Object Distance | 0.4m(1.31ft) |
| Lens Type | Fixed |
| Pan / Tilt / Rotate Range | 0°~355° / 0°~47° / 0°~353° |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRâ…¤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |
| Business Intelligence | People counting, Queue management, Heatmap |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers |
| Audio In | Built-in mic |
