Hanwha XND-8081RV
from $1,350.39 (incl. GST)
POSMarket SKU: Z14600
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.

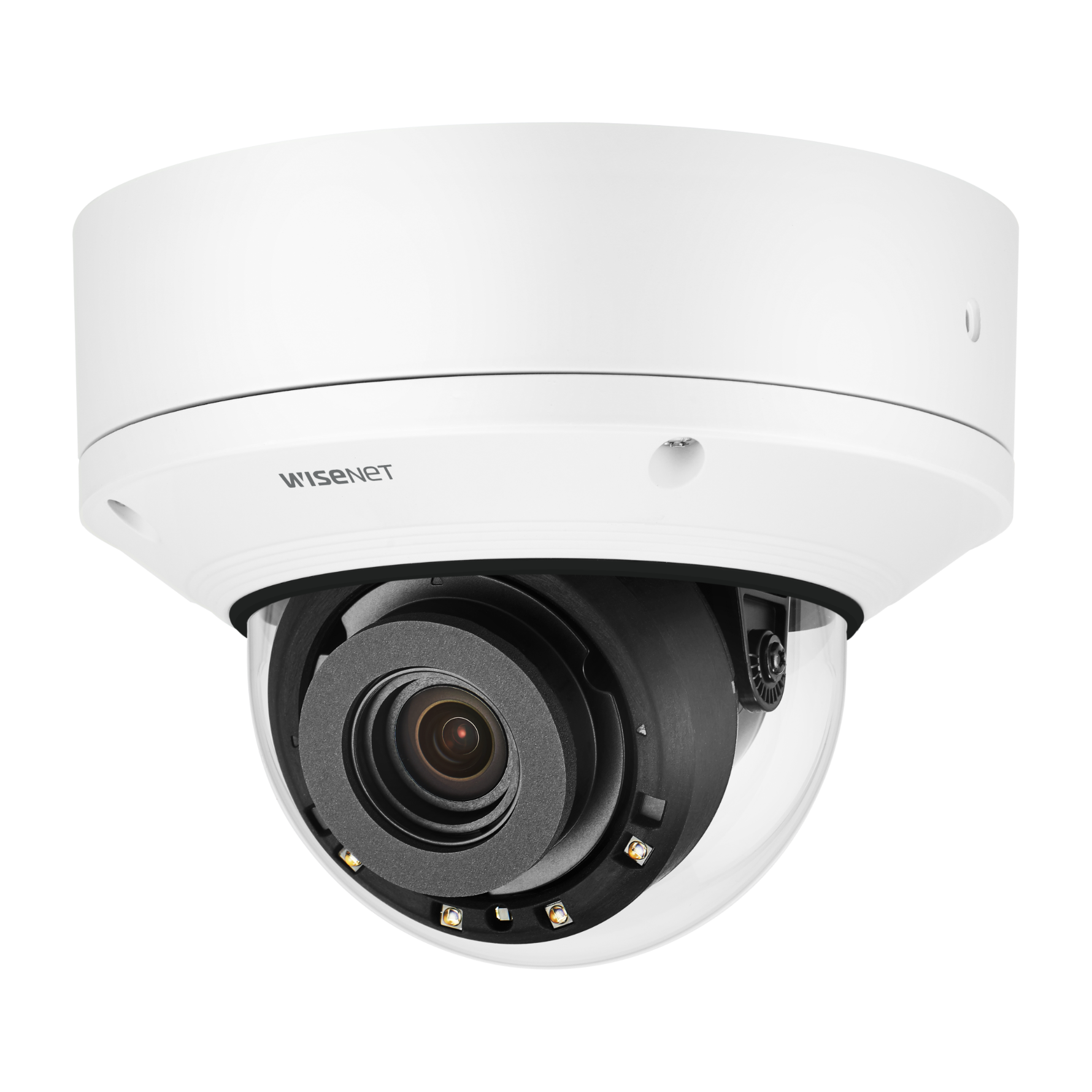

Hanwha Wisenet X Plus 5MP Indoor Dome Camera
Product Overview
Hanwha's XND-8081REV or HAN-XND-8081REV is designed to save money and time for the integrators and end users when adding additional cameras to existing installations. For new installations, integrators can plan to run two PoE cameras per cable run. For retrofit applications where an additional camera is needed, simply replace the old camera with a PoE extender camera, then install and connect a new PoE camera. Part of the Wisenet X plus series line, the new PoE extender cameras are completely modular making them easy to install, service and upgrade. HAN-XND-8081REV can be installed 100 meters from the switch, while the second PoE camera can extend a further 80 meters away. It is also possible to connect a standard network device to the extender.
FEATURES
FEATURES
- Max. 5MP resolution
- PoE extender (main cam, extender cam)
- PoE out: max. 12.95W at 80m
- 2.8-12mm (4.3x) motorised varifocal lens
- IR viewable length 50m
- Day and night (ICR), WDR (120dB)
- Hallway view, WiseStream II support
- Video and audio analytics, audio playback
- Business intelligence (people counting, queue management, heatmap)
- DIS and shock detection with built-in gyro sensor
- Modular structure, PoE+ in/ PoE out
- IP52, IK10
Product Specifications
| Video | |
| Imaging Device | 1/1.8" 6MP CMOS |
| Effective Pixels | 2616(H)x1976(V) |
| Min. Illumination | Color: 0.07Lux(F1.3, 1/30sec) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 3.9~9.4mm(2.4x) motorized varifocal |
| Max. Aperture Ratio | F1.3 |
| Angular Field of View | H: 92.1Ëš(Wide)~38.7Ëš(Tele) / V: 67.2Ëš(Wide)~29.0Ëš(Tele) / D: 119.9Ëš(Wide)~48.6Ëš(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus |
| Lens Type | DC auto iris, P iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0Ëš~360Ëš / -45Ëš~85Ëš / 0Ëš~355Ëš |
| Operational | |
| IR Viewable Length | 50m(164.04ft) |
| Camera Title Displayed | up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRâ…¤ |
| Digital Image | Stabilization Support(built-in gyro sensor) |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90Ëš/270Ëš) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection |
| Business Intelligence | People counting, Queue management, Heatmap |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail |
| Audio In | Selectable(Mic in/Line in/Built-in Mic) |
| Audio Out | Line out, Max. output level: 1Vrms |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Resolution | 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) |
| Smart Codec | Manual (5ea area), WiseStreamâ…¡ |
| Bitrate Control H.264/H.265: | CBR or VBR |
| Streaming | Unicast(20 users) / Multicast |
| Audio Compression | G.711 u-law /G.726 Selectable |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
| Security | HTTPS(SSL) Login Authentication Device Certificate(Hanwha Techwin Root CA) Edge Storage Micro SD/SDHC/SDXC 2slot 512GB |
| Electrical | |
| Input Voltage | PoE+(IEEE802.3at, Class4) |
| Power Consumption | Max 25.5 W (Main CAM + Extension CAM) |
