Hanwha XNF-8010R
POSMarket SKU: Z14553
This model is available in 3 different configurations. Select a configuration below or contact our experts on 1300 737 998.

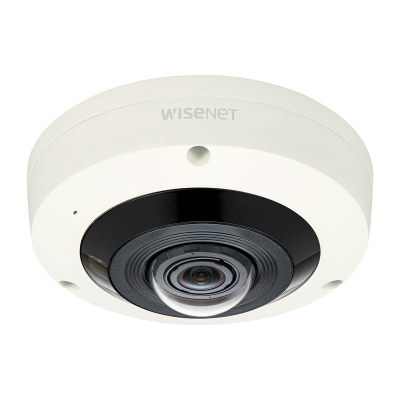

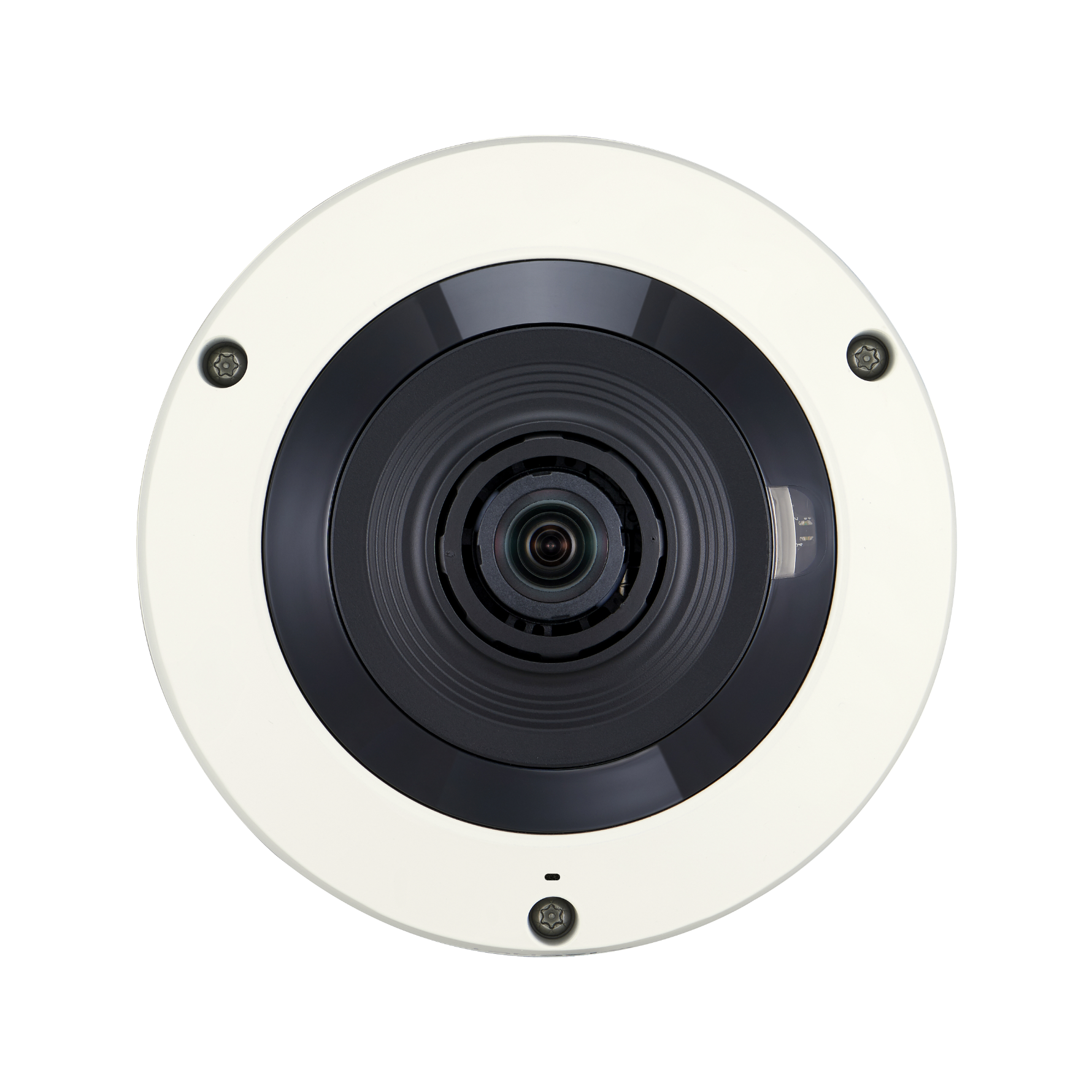

Hanwha Wisenet 6MP Indoor Fisheye Camera
Product Overview
Features
- Max. 2048 x 2048 resolution
- H.265, H.264, MJPEG codec supported
- On board dewarping, digital PTZ (8x), bi-directional audio
- Tampering, loitering, directional detection, audio detection, sound classification, heatmap, people counting, queue management
- Motion detection, handover
- SD / SDHC / SDXC memory slot (max. 512GB), 12V DC / PoE
- IR viewable length 15m
Product Specifications
| Video | |
| Imaging Device | 1/1.8" 6M CMOS |
| Resolution | |
| Original view: | 2048x2048, 1280x1280, 1080x1080, 960x960, 768x768, 720x720, 640x640, 480x480 |
| Single panorama: | 2048x512, 1920x480, 1280x320, 640x160, 704x176 |
| Double panorama: | 2048x1024, 1920x960, 1280x640, 640x320, 704x352 |
| Quad view: | 2048x1536, 1600x1200, 1280x960, 1024x768, 800x600, 640x480, 704x576 |
| Q1/2/3/4: | 1024x768, 800x600, 640x480 |
| Max. Framerate H.264/H.265 : | 30fps/25fps@2048x2048(60Hz/50Hz) |
| MJPEG : | Max 15fps |
| Min. Illumination | Color: 0.1 Lux (F1.6, 1/30sec), BW: 0 Lux (IR LED On) |
| Video Out CVBS: | 1.0 Vp-p / 75Ω composite, 714x480(N), 702x576(P) for Installation |
| USB: | Micro USB Type B, for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 1.6mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 192° / V: 192° / D: 192° |
| Min. Object Distance | 0.3m |
| Focus Control | Simple remote control focus via network |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRâ…¤ |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, Quadrangle zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |
| Business Intelligence | People counting, Queue management, Heatmap |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output |
| Audio In | Selectable(mic in/line in/built-in mic) |
| Supply voltage: | 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| IR Viewable Length | 15m(49.21ft) |
| Radiometry | |
| Temperature Accuracy | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
