Hanwha XNP-6120H
$1,245.48 (incl. GST)
POSMarket SKU: Z14614

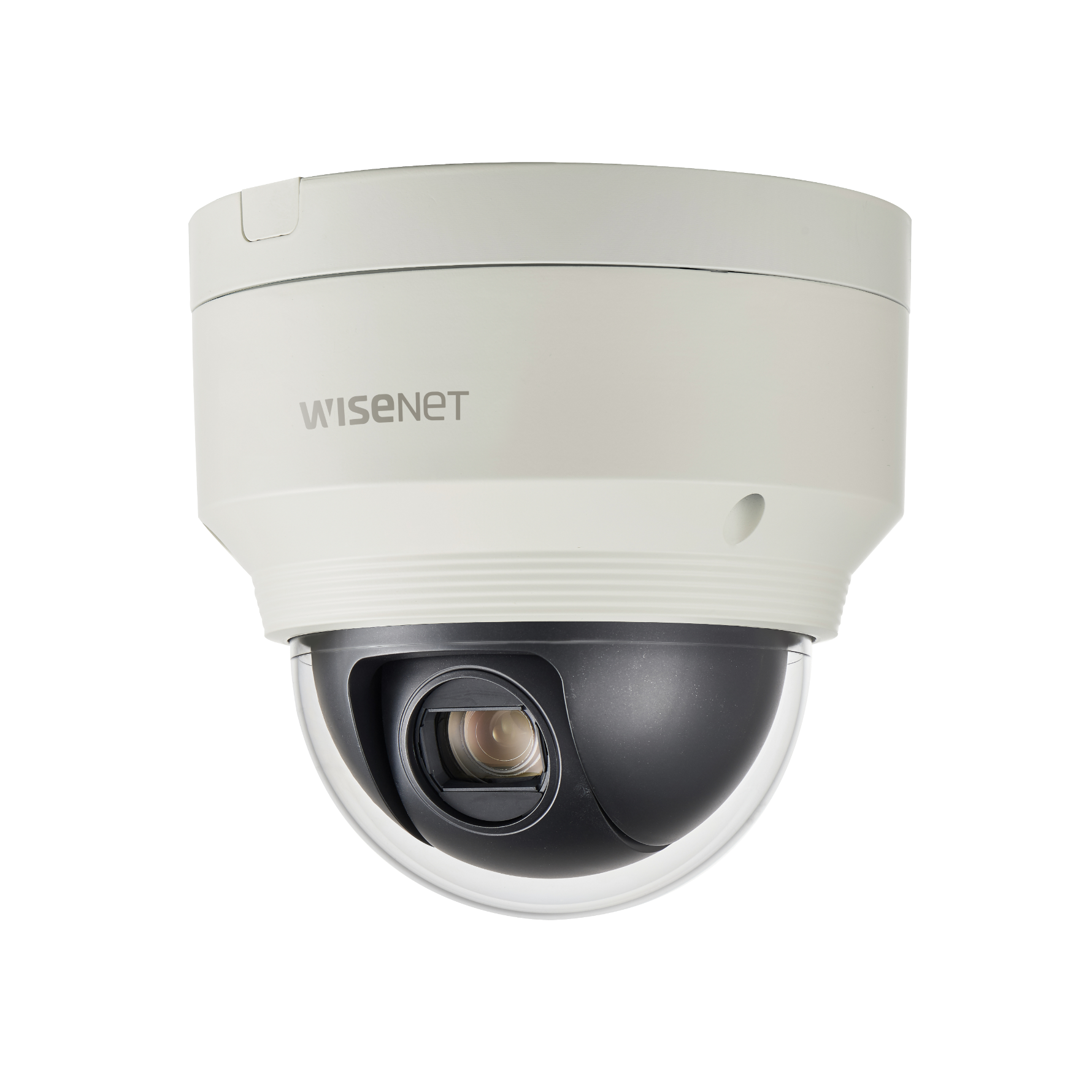

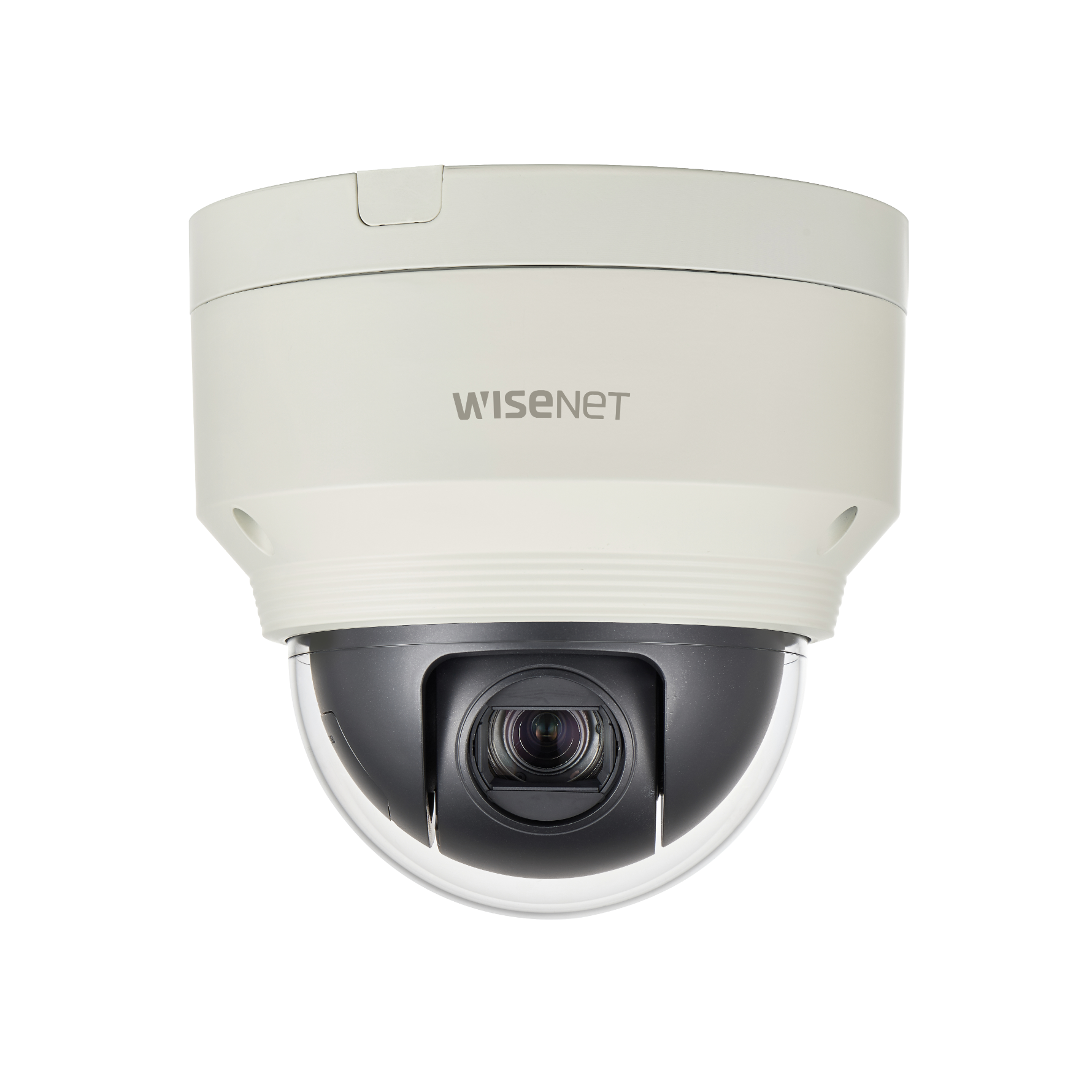

XNP-6120H: Hanwha Wisenet 2MP Outdoor Mini PTZ Camera, 12x Zoom, H.265, WDR, IP66, IK10, PoE
Hanwha Wisenet 2MP Outdoor Mini PTZ Camera, 12x Zoom
Product Overview
Keep a close watch on your property with the ivory WiseNet X Series XNP-6120H 2MP Outdoor PTZ Network Dome Camera from Hanwha Techwin. Equipped with a 1/2.8" 2.16MP CMOS sensor and a 5.2-62.4mm varifocal lens, the XNP-6120H captures video at resolutions up to 1920 x 1080 at 60 fps in fields of view ranging from 54.6 x 32.2° to 5.3 x 3°. The camera has an automatic IR cut filter and offers image enhancement features including wide dynamic range and automatic white balance for capturing images in varying lighting conditions.
The XNP-6120H has PTZ functionality, with 360° endless pan, 190° tilt, and 12x optical zoom. Audio input and output connections allow for two-way audio communication. Designed for easy setup, the XNP-6120H uses PoE technology, enabling you to run just one wire for both data and power. ONVIF compliance ensures compatibility with a wide range of surveillance devices.
FEATURES
The XNP-6120H has PTZ functionality, with 360° endless pan, 190° tilt, and 12x optical zoom. Audio input and output connections allow for two-way audio communication. Designed for easy setup, the XNP-6120H uses PoE technology, enabling you to run just one wire for both data and power. ONVIF compliance ensures compatibility with a wide range of surveillance devices.
FEATURES
- Max. 2MP (1920 x 1080) resolution
- 16:9 Full HD (1080p) resolution support
- 5.2 - 62.4mm (12x) optical zoom, 32x digital zoom
- H.265, H.264, MJPEG codec support, multiple streaming
- Day & Night (ICR), WDR (150dB), Intelligent video analytics
- SD/SDHC/SDXC memory slot (Max.512GB)
- IP66, IK10, Bi-directional audio support
Product Specifications
| Video | |
| Imaging Device | 1/2.8" 2.16MP CMOS |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 60fps at all resolutions Motion JPEG: Max. 30fps at all resolutions |
| Min. Illumination | Color: 0.05 Lux (1/30sec, F1.6, 50IRE) B/W: 0.005 Lux (1/30sec, F1.6, 50IRE) Color: 0.03 Lux (1/30sec, F1.6, 30IRE) B/W: 0.003 Lux (1/30sec, F1.6, 30IRE) |
| Video Out | CVBS: 1.0 Vp-p / 75Ωcomposite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 5.2~62.4mm(12x) zoom |
| Max. Aperture Ratio | F1.6(Wide)~F3.0(Tele) |
| Angular Field of View | H:54.58°(Wide) ~ 5.30°(Tele) / V: 32.19°(Wide) ~ 3.00°(Tele) |
| Min. Object Distance | Wide: 1.5m(4.92ft) / Tele: 2.0m(6.56ft) |
| Focus Control | Auto / Manual / One Shot AF |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan Range | 360° Endless |
| Pan Speed | Preset: 350°/sec, Manual: 0.024°/sec ~ 200°/sec |
| Tilt Range | 190°(-5° ~ 185°) |
| Tilt Speed | Preset:350°/sec, Manual: 0.024°/sec ~200°/sec |
| Sequence | Preset (300 ea), Swing, Group (6 ea), Trace, Tour (1 ea), Auto Run, Schedule |
| Preset Accuracy | ±0.2° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNRâ…¤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support |
| Motion Detection | 8ea, polygonal |
| Privacy Masking | 24ea, rectanglar zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics Tampering, Loitering, Directional Detection, Virtual Line, Enter/Exit, Appear / Disappear, Audio Detection, Sound classification, Auto Tracking, Fog detection - with Metadata Serial Interface | RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Preset |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| Auto Tracking | Support |
| Coaxial Protocol | Support |
