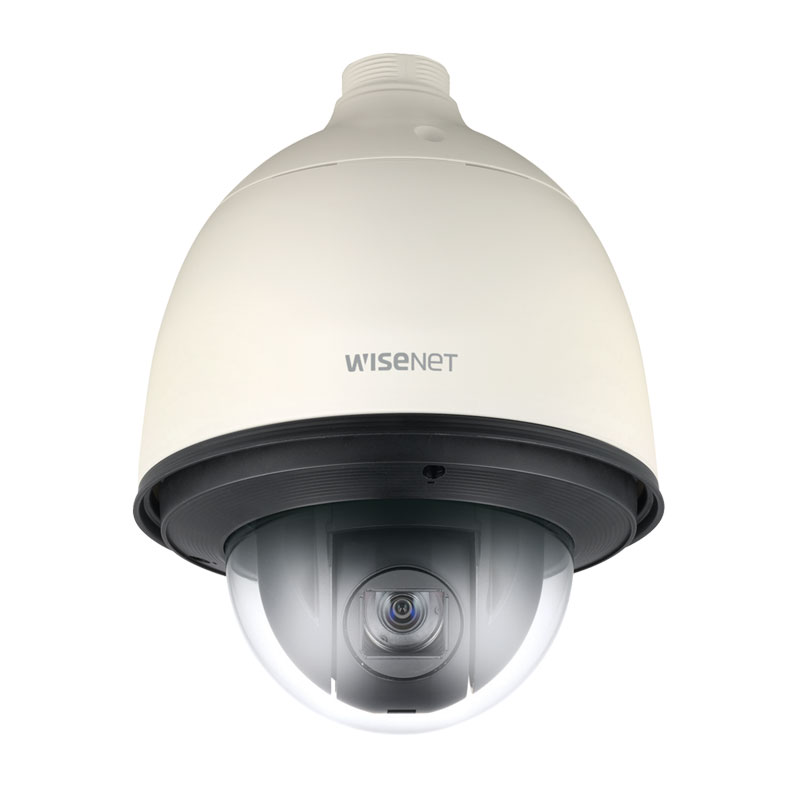

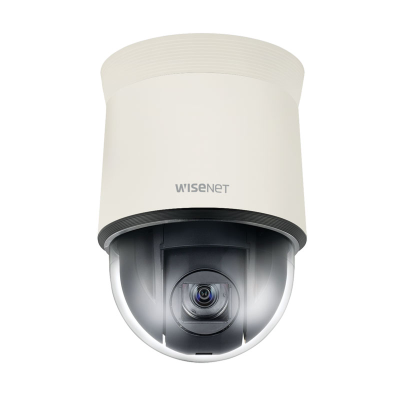

Hanwha XNP-6320H
from $2,762.38 (incl. GST)
POSMarket SKU: Z14626
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.
Hanwha Wisenet 2MP Mini PTZ Camera, 32x Zoom
Product Overview
The Hanwha XNP-6320x or HAN-XNP-6320x is a vandal proof outdoor 2MP mini PTZ. The advanced compression technology of WiseStream that is incorporated into the HAN-XNP-6320H can reduce bandwidth by up to 50% and when combined with H.265, the bandwidth efficiency can be improved by up to 75% compared to the current H.264 technology. Defocus detection helps to recognise images that are out of focus and significantly improves efficiency. Lens distortion correction easily removes imperfections in images, making image quality impeccable. Users can also adjust the optimal focus remotely via network which reduces the installation time of the camera. The Hanwha HAN-XNP-6320x offers a seamless solution for small to medium sized applications and ultimately minimises time and costs for installation
FEATURES
FEATURES
- Max. 2MP (1920 x 1080) resolution
- H.265, H.264, MJPEG codec supported,
- Multiple streaming, WiseStream II support
- DIS with built-in gyro sensor
- Day and night (ICR), WDR (150dB)
- Auto tracking, intelligent video analytics
- IP66, IK10
Product Specifications
| VIDEO | |
| Imaging Device | 1/2.8" 2.4M CMOS |
| Total / Effective Pixels | 1,981(H) x 1,288(V), 2.55M / 1,944(H) x 1,212(V), 2.35M |
| Scanning System | Progressive |
| Min. Illumination Color : | 0.05Lux (F1.6), B/W : 0.005Lux (F1.6) |
| S / N Ratio | 50dB |
| Video Output | CVBS : 1.0 Vpp / 75Ωcomposite, 720 x 480(N), 720 x 576(P), for installation USB : Micro USB type B, 1280 x 720, for installation |
| LENS | |
| Focal Length | (Zoom Ratio) 4.44 ~ 142.6mm (Optical 32x) |
| Max. Aperture Ratio | F1.6(Wide) / F4.4(Tele) |
| Angular Field of View | H : 61.8Ëš(Wide) ~ 2.19Ëš(Tele) / V : 36.2Ëš(Wide) ~ 1.24Ëš(Tele) |
| Min. Object Distance | Wide : 1.5m (4.92ft), Tele : 2m (6.56ft) |
| Focus Control | Auto / Manual / One shot AF |
| Lens / Mount Type | DC Auto Iris / Board-in type |
| PAN / TILT / ROTATE | |
| Pan / Tilt Range | 360Ëš Endless / 210Ëš (-15Ëš ~ 195Ëš) |
| Pan / Tilt Speed | Preset : 700˚/sec, Manual : 0.024˚/sec ~ 200˚/sec Sequence Preset (300ea), Swing, Group (6ea), Trace, Tour (1ea), Auto run, Schedule Preset Accuracy / Azimuth ±0.2˚ / Yes (E / W / S / N / NE / NW / SE / SW) |
| Auto Tracking | Support |
| OPERATIONAL | |
| Camera Title | Off / On (Displayed up to 85 characters) - W/W : English / Numeric / Special characters - China : English / Numeric / Special / Chinese characters - Common : Multi-line (Max. 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution |
| Day & Night | Auto (ICR) / Color / B/W / Schedule |
| Backlight Compensation | Off / BLC / HLC / WDR |
| Wide Dynamic Range | 150dB |
| Contrast Enhancement | SSDR (Off / On) |
| Digital Noise Reduction | SSNRV (2D + 3D Noise filter) (Off / On) |
| Digital Image Stabilization | Off / On (Built-in Gyro sensor) Defog Off / Auto / Manual |
| Motion Detection | Off / On (8ea, Polygonal) |
| Privacy Masking | Off / On (24 zones of rectangle zone) - Color : Gray / Green / Red / Blue / Black / White - Zoom ratio option for mask mode - Mosaic option |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor (included mercury & Sodium) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1 ~ 1/12,000sec) |
| Digital Zoom | 32x Flip / Mirror Off / On |
| Intelligent video analytics | Tampering, Loitering, Directional detection, Fog detection, Virtual line, Enter/Exit, (Dis) Appear, Audio detection, Face detection, Motion detection, Sound classification |
| Alarm I/O | Input 4ea / Output 2ea (Relay) Remote Control Interface RS-485- Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell |
| Alarm Triggers | Alarm input, Motion detection, Video & Audio analytics, Network disconnect |
| Alarm Events | File upload Via FTP and E-mail, Notification Via E-mail, TCP and HTTP, |
| Local storage | (SD/SDHC/SDXC) or NAS recording at alarm triggers, External output, Preset |
| Pixel counter | Support |
