Hanwha XNV-6013M
POSMarket SKU: Z14690
XNV-6013M: *SpOrd* Hanwha Wisenet 2MP Outdoor Mobile Camera, H.265, 60fps, 150dB WDR, 2.8mm

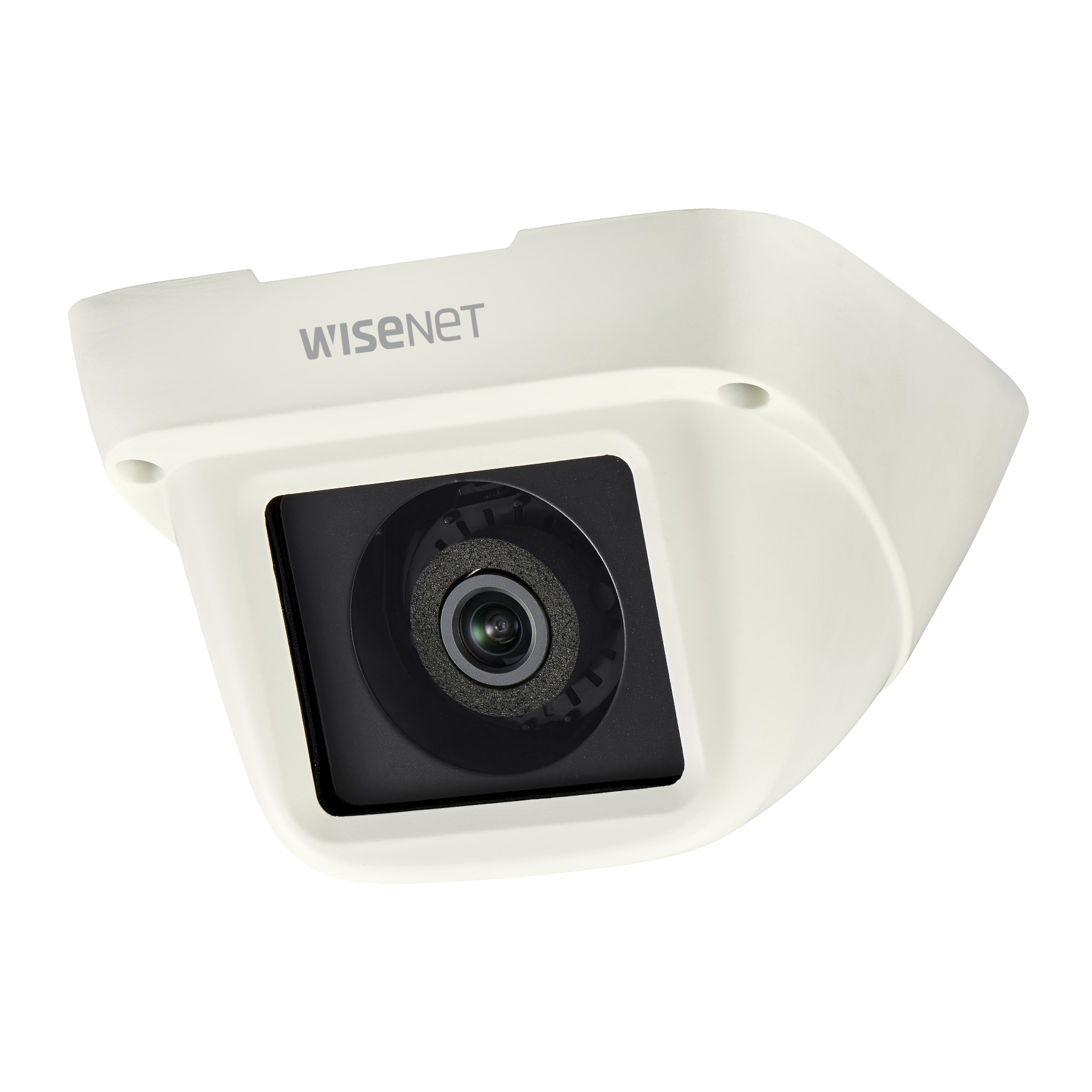

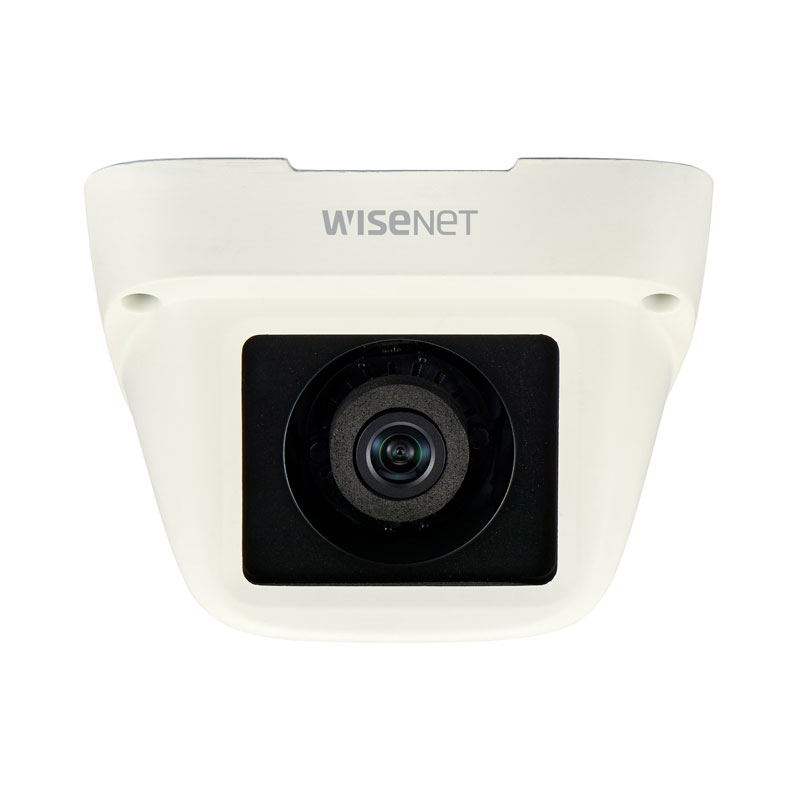

Hanwha Wisenet 2MP Outdoor Mobile Camera
Product Overview
FEATURES
- Max. 2MP (1920 x 1080) resolution
- Built-in 2.8mm fixed lens
- Max. 60fps at all resolutions (H.265 / H.264)
- H.265, H.264, MJPEG codec supported, multiple streaming
- WiseStream support
- Day and night. WDR (150dB)
- Tampering, loitering, directional detection, defocus detection,
- Fog detection, virtual line, enter/exit, (dis)appear, audio detection, face detection, digital auto tracking, sound classification
- Motion detection, handover
- SD / SDHC / SDXC memory slot
- IP67, IP6K9K, IK10, NEMA 4X
- Hallway view, PoE, LDC, M12 connector support
Product Specifications
| Video | |
| Imaging Device | 1/2.8" 2MP CMOS |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max.60fps/50fps(60Hz/50Hz) MJPEG: Max.30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.04Lux(F2.0, 1/30sec) BW: 0.04Lux(F2.0, 1/30sec) |
| Video Out | USB: Micro USB Type B, 1280x720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 107.4° / V: 62.2° / D: 122° |
| Focus Control | Manual |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | ±5° / ±10° / ±90° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(Electrical) |
| Backlight Compensation | BLC, HLC, WDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNRV |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support(built-in optical filter) |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
