Hikvision DS-2CD2055FWD-I

POSMarket SKU: Z14113

This product has been replaced by the Hikvision HIK-2CD2066G2-I2. If you need this particular model please contact our sales team on 1300 737 998.

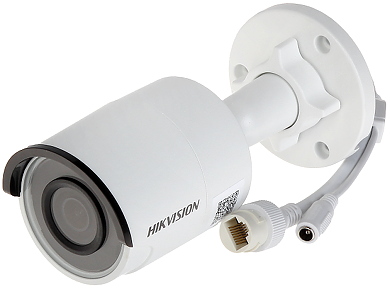

6MP Outdoor Mini Bullet Camera, H.265+

Product Overview

Part of Hikvision's new easy IP 3.0 range of cameras, the DS-2CD2055FWD-I or HIK-2CD2055FWDI4 is an outdoor IR mini bullet camera that produces an exceptional 6MP high-resolution video. Powered by the latest innovation in image sensor technology and ultra high definition image processing chipset from Amberella, it supports H.265 and H.265+ intelligent video compression, which reduces bandwidth/storage requirements by up to 50% and 80%, respectively. Providing an ideal combination of smart features and affordability, the camera includes 120dB true wide dynamic range (WDR) and built-in EXIR 2.0 infrared technology providing up to 30m visibility at night. With a 4mm lens, this camera provide an horizontal field of view of 78 degrees.

Rigorously tested, Hikvision's generation cameras have been designed to deliver 24/7 video surveillance with the clarity you expect from a Hikvision network camera.

Features
  • 1/2.9" progressive scan CMOS
  • 6MP resolution 3072x2048 at 20fps
  • 4mm lens HVOF - 78 degrees
  • H.265, H.265+, H.264+, H.264
  • Third stream
  • 120dB wide dynamic range (WDR)
  • Backlight compensation, 3D digital noise reduction
  • Up to 30m infrared
  • IP67
  • Line crossing, intrusion, object abandoned, object removed and face detection
  • Supports on-board storage, up to 128GB
  • 802.3af PoE or 12VDC

Product Specifications

CAMERA
Image Sensor 1/2.9" Progressive Scan CMOS
Min. Illumination Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Support
LENS
2.8 mm horizontal field of view: 97°
4 mm horizontal field of view: 78°
6 mm horizontal field of view: 60°
8 mm horizontal field of view: 39.5°
12 mm horizontal field of view: 19°
Lens Mount M12
Iris F2.0
Day &Night IR cut filter
DNR 3D DNR
Wide Dynamic Range 120dB
3-Axis Adjustment (bracket) Pan:0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
COMPRESSION STANDARD
Vidoe Comperssion
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Support
H.265 Type Main Profile
H.265+ Support
Video Bit Rate 32 Kbps to 16 Mbps
Max. Resolution 3072 x 2048
Main Stream
50Hz: 20 fps(3072 × 2048,3072 x 1728,2944 x 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (3072 × 2048,3072 x 1728,2944 x 1656), 25fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream 50Hz: 25fps(1280 ×720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240
Image Enhancement BLC/3D DNR
Image Settings Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web browser and client software
ROI (Region of Interest) Support 1 fixed region for main stream and sub stream separately
Day/Night Switch Auto/Scheduled
NETWORK
Network Storage Support microSD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR Alarm Trigger Motion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login, HDD full, HDD error
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
Standard ONVIF (PROFILE S, PROFILE G), ISAPI
General Function One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25% 6W PoE(802.3af, class 3), 7W
IR Range Up to 30 m
Protection Level IP67
DIMENSION
Camera: Φ70 × 155.03 mm (Φ2.76″ × 6.1″)
Package:216 × 121 × 118 mm (8.5″ × 4.76″ × 4.65″)
Weight Camera: 410 g (0.9 lb.)
