Hikvision DS-2CD2085G1-I
POSMarket SKU: Z14127
This model is available in 5 different configurations. Select a configuration below or contact our experts on 1300 737 998.

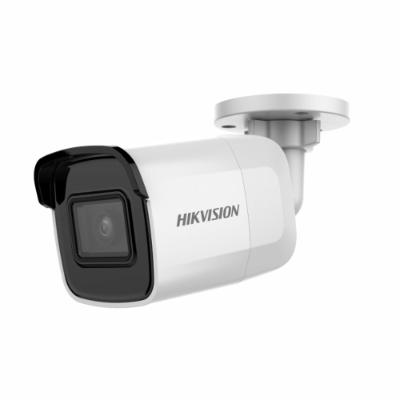

8MP Outdoor Mini Bullet Camera Powered by Darkfighter
Product Overview
This camera incorporates all the features a standard Hikvision camera has such as H.265/+ support, infrared illumination, 120db wide dynamic range and edge video analytics. This 4mm fixed lens mini bullet camera rises above the standard range as it can produce a sharp and clear image in low-light conditions, down to 0.008 lux from its larger image sensory and 30m IR range. This range has been tested to deliver 24/7 video surveillance, and with improvements in noise reduction, making these cameras both a versatile and cost effective choice for a variety of security applications.
Features
- Up to 8 megapixel high resolution
- Max. 3840 x 2160 at 20fps
- 4mm lens
- H.265, H.265+, H.264+, H.264
- 120dB WDR
- Powered by Darkfighter
- 12 VDC & PoE (802.3af, class 3)
- IR range: Up to 30 m
- Support on-board storage, up to 128GB
- IP67, IK10
- BLC/3D DNR/ROI/HLC
- Colour: 0.008 Lux at (F1.2, AGC ON), 0.014 Lux at (F1.6, AGC ON)
Product Specifications
| DS-2CD2085G1-I | |
| Camera | |
| Image Sensor | 1/2" Progressive Scan CMOS |
| Min. Illumination Color: | 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON) |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Focal length | 2.8/4/6 mm |
| Focus | Fixed |
| Lens | |
| 2.8 mm | horizontal FOV: 102°, vertical FOV: 55°, diagonal FOV: 120° |
| 4 mm | horizontal FOV: 78°, vertical FOV: 43°, diagonal FOV: 92° |
| 6 mm | horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 59° |
| Lens Mount | M16 |
| Aperture | F1.6 |
| Day &Night | IR cut filter |
| DNR | 3D DNR |
| Wide Dynamic Range | 120dB |
| 3-Axis Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Compression Standard | |
| Video Compression | |
| Main stream: | H.265/H.264 |
| Sub-stream: | H.265/H.264/MJPEG |
| Third stream: | H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main stream supports |
| H.265 Type | Main Profile |
| H.265+ | Main stream supports |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Image | |
| Max. Resolution | 3840 x 2160 |
| Main Stream | |
| 50Hz: | 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) |
| 60Hz: | 20 fps (3840 × 2160), 30 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub Stream | |
| 50Hz: | 25fps (640 × 480, 640 × 360, 320 × 240) |
| 60Hz: | 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream 50Hz: | 25fps (1280 × 720, 640 × 360, 352 × 288) |
| 60Hz: | 30fps (1280 × 720, 640 × 360, 352 × 288) |
| Image Enhancement | BLC/3D DNR/HLC |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
| ROI (Region of Interest) S | upport 1 fixed region for main stream and sub-stream separately |
| Day/Night | Switch Day/Night/Auto/Schedule *Note: When the main stream resolution is 3840 x 2160, max frame rate is 20 fps for all streams. |
| General | |
| Operating Conditions | -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC +/- 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3) |
| Power Consumption | 12 VDC, 0.5 A, max: 6 W PoE: (802.3af, 36 VDC to 57 VDC), 0.3 A to 0.2 A, max: 7.5 W |
| IR Range | Up to 30 m |
| Wavelength | 850 nm |
| Protection Level | IP67, IK10 |
| Material Front cover: | metal, back cover: metal, sun shield: plastic |
| Dimensions Camera: | 70 × 68 × 171 mm (2.8″ × 2.7″ × 6.7″) |
| Weight Camera: | 400 g (0.9 lb.) |
| With package: | 700 g (1.5 lb.) |
