Hikvision DS-2CD2646G1-IZS
POSMarket SKU: Z14139

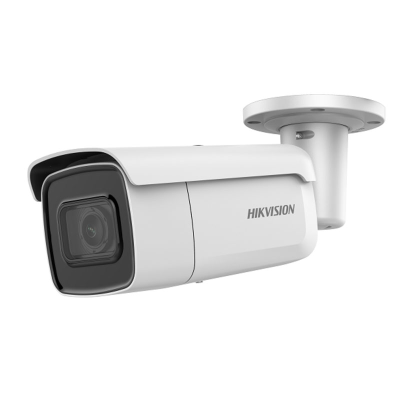

DS-2CD2646G1-IZS: 4MP Outdoor AcuSense Bullet Camera, WDR, IR, Audio & Alarm I/O, 2.8 - 12mm
4MP Outdoor AcuSense Bullet Network Camera.
Product Overview
The Hikvision DS-2CD2646G1-IZS Outdoor AcuSense Varifocal Bullet Camera provides high definition network output. It supports H.265+ video compression, which assures savings in bandwidth and storage. The camera is equipped with a 2.8 to 12 mm motorized varifocal lens, and offers an IR range of up to 165 ft (50 m).
Features
- Max. 2688 x 1520 resolution at 30fps
- 2.8 to 12mm lens
- H.265+, H.264+, H.265, H.264
- 120dB WDR
- 12 VDC and PoE (802.3af, class 3)
- 50m IR
- Supports on board storage, up to 128 GB
- IP66
- BLC/3D DNR/ROI
- Colour: 0.007 Lux at (F1.2, AGC ON), 0.012 Lux at (F1.6, AGC ON)
- White LED
Product Specifications
| CAMERA | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Min. Illumination Color: | 0.007 Lux @ (F1.2, AGC ON), 0.01 Lux @ (F1.4, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Auto-Iris | No |
| Day &Night | IR cut filter |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | 120dB |
| 3-Axis Adjustment (with bracket) | Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360° |
| LENS | |
| Focal length | 2.8 mm to 12 mm |
| Aperture | F1.4 |
| Focus | Auto |
| FOV Horizontal | FOV: 101° to 29°, vertical FOV: 54° to 16°, diagonal FOV: 121° to 34° |
| Lens Mount | Φ 14 |
| IR | |
| IR Range | Up to 50 m |
| Wavelength | 850 nm |
| Audio (-S) Environment Noise Filtering | Yes |
| Sampling Rate | 8kHz/16kHz Audio Compression G.711/G.722.1/ Interface |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board Storage | Built-in micro SD/SDHC/SDXC slot, up to 128 GB |
| SVC | H.265 encoding and H.264 encoding support |
| Reset Button | Yes |
| Audio (-S) | 1 audio input (line in), 1 audio output (line out), mono sound |
| Alarm (-S) | 1 alarm input, 1 alarm output |
| GENERAL | |
| Operating Conditions | -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC +/- 25%, 5.5 mm coaxial power plug PoE (802.3at, class 4) |
| Power Consumption and Current | 12 VDC, 1.3 A, max. 15.5 W PoE: (802.3at, 42.5 VDC to 57 VDC), 0.5 A to 0.3 A, max. 19 W |
| Protection Level | IP67, IK10 |
| Material Front cover & back cover: | metal |
| Dimensions Camera: | Φ 105 × 297.5 mm (Φ 4.1" × 11.7") |
| Weight Camera: | 1400 g (3.1 lb.) |
| With package: | 1750 g (3.9 lb.) |
