Hikvision DS-2CD2746G1-IZS
POSMarket SKU: Z14145
DS-2CD2746G1-IZS: Hikvision 4MP Outdoor AcuSense Dome Camera, WDR, IR, Audio & Alarm I/O, 2.8-12mm
4MP Outdoor AcuSense Dome Camera, WDR, IR.
Product Overview

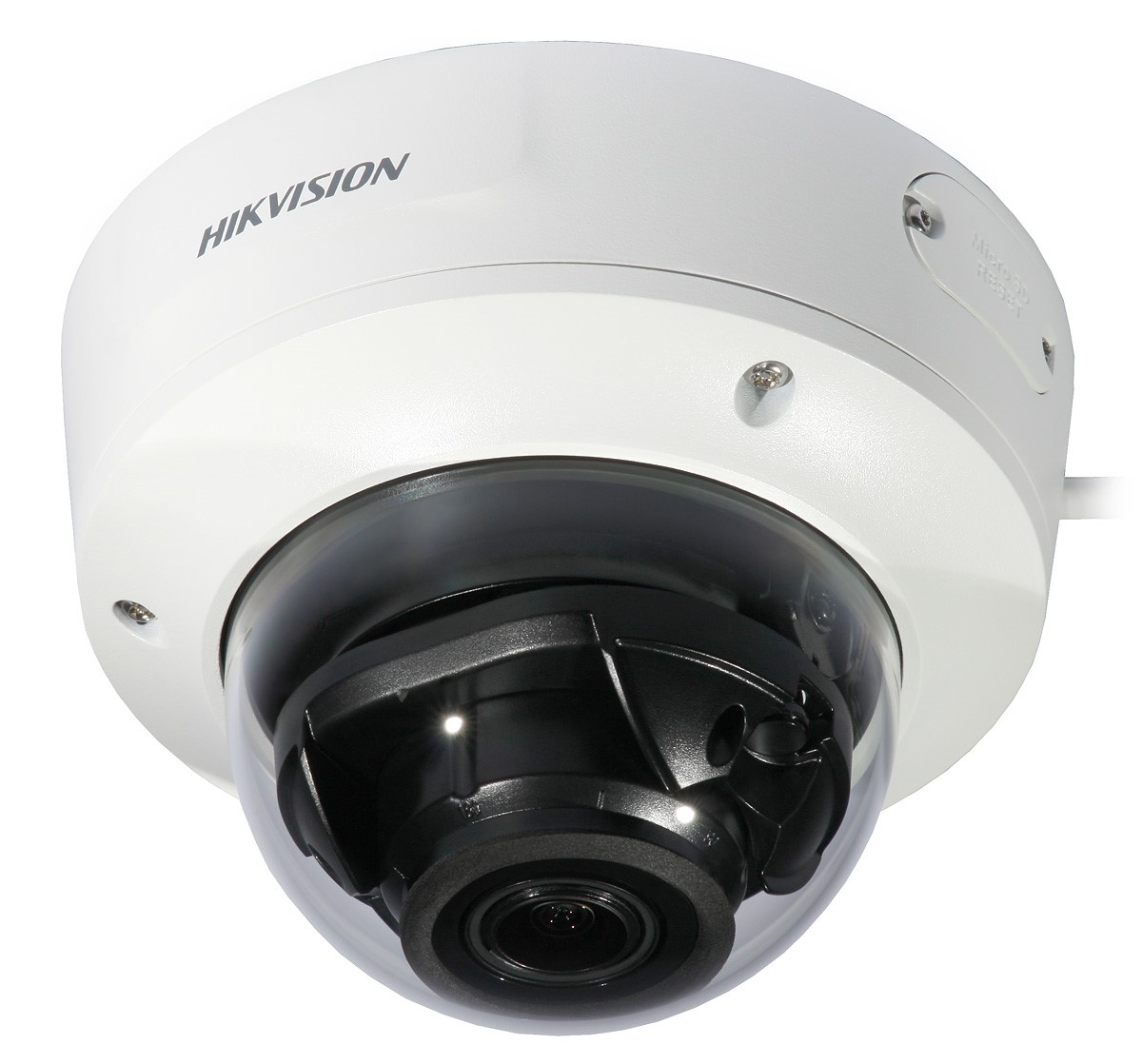

The Hikvision DS-2CD2746G1-IZS Outdoor AcuSense Varifocal Dome Camera provides high definition network output. It supports H.265+ video compression, which assures savings in bandwidth and storage. The camera is equipped with a 2.8 to 12 mm motorized varifocal lens, and offers an IR range of up to 100 ft (30 m).
Features
- Max. 2688 x 1520 resolution at 30fps
- 2.8 to 12mm lens
- H.265+, H.264+, H.265, H.264
- 120dB WDR
- 12 VDC and PoE (802.3af, class 3)
- 30m IR
- Supports on board storage, up to 128 GB
- IP66
- BLC/3D DNR/ROI
- Colour: 0.007 Lux at (F1.2, AGC ON), 0.012 Lux at (F1.6, AGC ON)
Product Specifications
| CAMERA | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Min. Illumination Color: | 0.007 Lux @ (F1.2, AGC ON), 0.01 Lux @ (F1.4, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Day &Night | IR cut filter |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | 120dB |
| 3-Axis Adjustment (with bracket) | Pan:0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| LENS | |
| Focal length | 2.8 mm to 12 mm |
| Aperture | F1.4 |
| Focus | Auto |
| FOV Horizontal | FOV:101° to 29°, vertical FOV: 54° to 16°, diagonal FOV: 121° to 34° |
| Lens Mount | Φ14 |
| IR | |
| IR Range | Up to 30 m |
| Wavelength | 850 nm |
| AUDIO (-S) | |
| Environment Noise Filtering | Yes |
| Sampling Rat | e 8kHz/16kHz |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) Interface |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board Storage | Built-in micro SD/SDHC/SDXC slot, up to 128 GB |
| SVC | H.265 encoding and H.264 encoding support |
| Reset Button | Yes |
| Audio (-S) | 1 audio input (line in), 1 audio output (line out), mono sound |
| Alarm (-S) | 1 alarm input, 1 alarm output |
| GENERAL | |
| Operating Conditions | -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC +/- 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3) |
| Power Consumption and Current | 12 VDC, 0.9 A, max. 11 W PoE: (802.3af, 36 VDC to 57 VDC), 0.4 A to 0.2 A, max. 12.9 W |
| Protection Level | IK10, IP67 (If the camera is installed outdoor, the bracket DS-1253ZJ-L should be used together with other pendant mounting bracket or wall mounting bracket to reduce IR reflective in the rainy day) |
| Material Front cover: | metal, bottom base: metal, bubble: plastic |
| Dimensions Camera: | Φ 153.3 × 111.6 mm (Φ 6" × 4.4") |
| Weight Camera: | 890 g (2 lb.) |
| With package: | 1300 g (2.9 lb.) |
