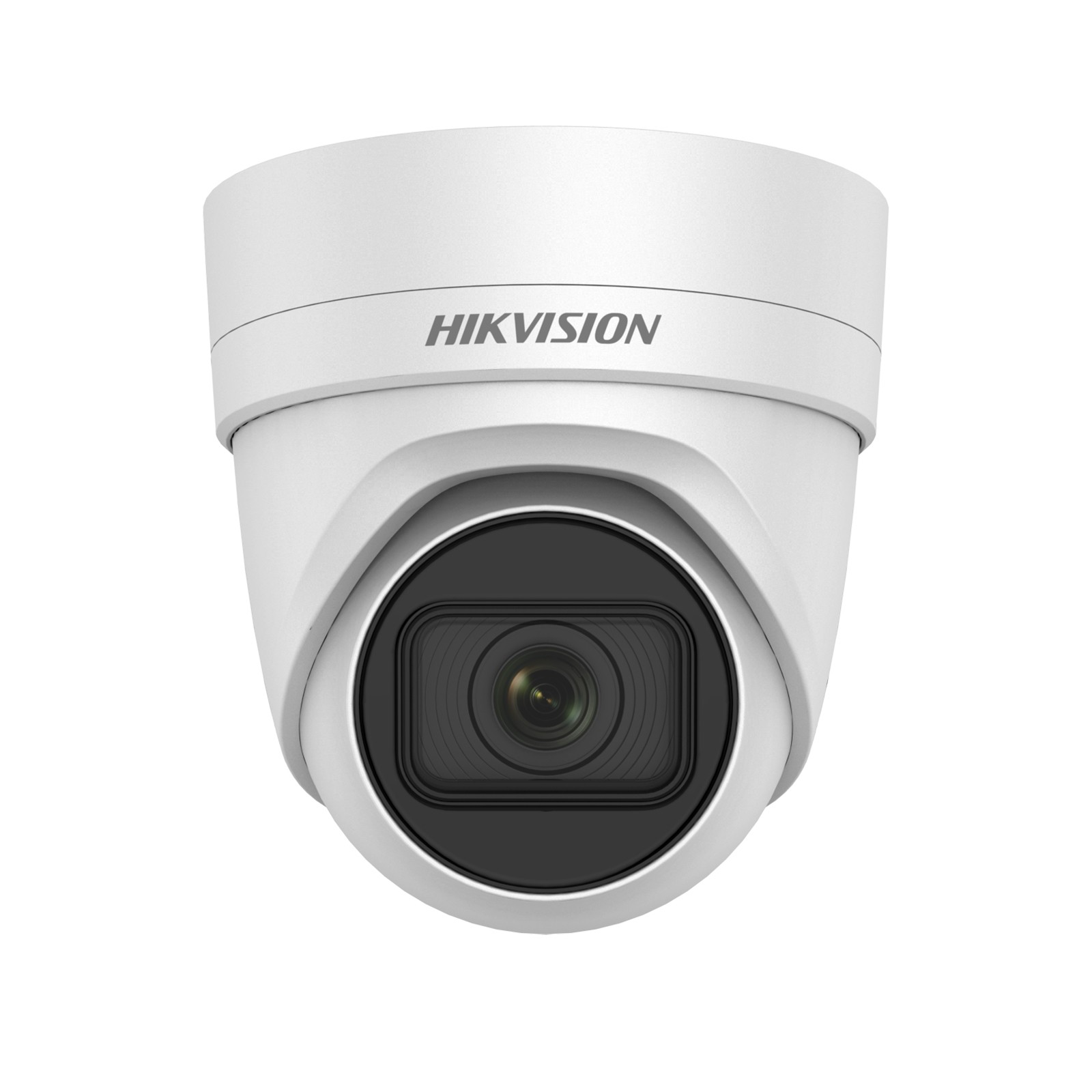

Hikvision DS-2CD2H85G1-IZS

from $535.15 (incl. GST)

POSMarket SKU: Z14101

This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.

8MP Outdoor Motorised VF Turret, H.265+.

Product Overview

Part of Hikvision's Easy IP 3.0 range of cameras, the HIK-2CD2H85G1-IZS or DS-2CD2H85G1-IZSis an outdoor motorised varifocal IR turret camera that produces an exceptional 8MP high-resolution video. Powered by the latest innovation in image sensor technology and an ultra high definition image processing chipset from Amberella it supports H.265 and H.265+ intelligent video compression, which reduces bandwidth/storage requirements by up to 50% and 80%, respectively. Providing an ideal combination of smart features and affordability, the camera includes 120dB true wide dynamic range (WDR), Audio/Alarm IO and built-in EXIR 2.0 infrared technology providing up to 30m visibility at night. With a 2.8-12mm motorised varifocal lens, this camera offers great flexibility. Rigorously tested, Hikvision's generation cameras have been designed to deliver 24/7 video surveillance with the clarity you expect from a Hikvision network camera.

Features
  • 1/2.5" progressive scan CMOS
  • 8MP resolution (3840 x 2160) at 20fps
  • 2.8 to 12 mm motorised lens (HVOF - 115degrees to 35degrees)
  • H.265, H.265+, H.264+, H.264
  • Third stream
  • 120dB wide dynamic range (WDR)
  • Backlight compensation, 3D digital noise reduction
  • Up to 30m infrared
  • Audio/alarm IO
  • IP67, IK10
  • Line crossing, intrusion, object abandoned, object removed and face detection
  • Supports on-board storage, up to 128 GB
  • 802.3af PoE or 12VDC

Product Specifications

CAMERA
Image Sensor 1/2.5" Progressive Scan CMOS
Min. Illumination Color: 0.014 Lux @ (F1.4, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Day & Night IR Cut Filter
WDR 120dB
Angle Adjustment Pan:0°to 355°, tilt: 0°to 75°, rotate: 0°to 355°
LENS
Lens Type Varifocal lens, motorized lens , 2.8 to 12 mm
Aperture F1.4
FOV Horizontal FOV: FOV: 115°to 35°, vertical FOV: 60°to 19°, diagonal FOV: 146°to 38.5°
Lens Mount Φ14
ILLUMINATOR
IR Range Up to 30 m
Wavelength 850nm
VIDEO
Max. Resolution 3840 x 2160
Main Stream 50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (3840 × 2160), 30 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream 50Hz: 25fps(640 × 480, 640 × 360, 320 × 240) <br> 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) <br> 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Video Compression Main stream/third stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
H.264 Type Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 16 Mbps
Scalable Video Coding (SVC) H.264 and H.265 encoding
*Note: When the main stream resolution is 3840 x 2160, max frame rate is 20 fps for all streams.
AUDIO (-S)
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
SMART FEATURE SET
Smart Event Line crossing detection, intrusion detection, unattended baggage detection, object removal detection, face detection, scene change detection
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Linkage Method Trigger recording: memory card, network storage, pre-record and post-record
