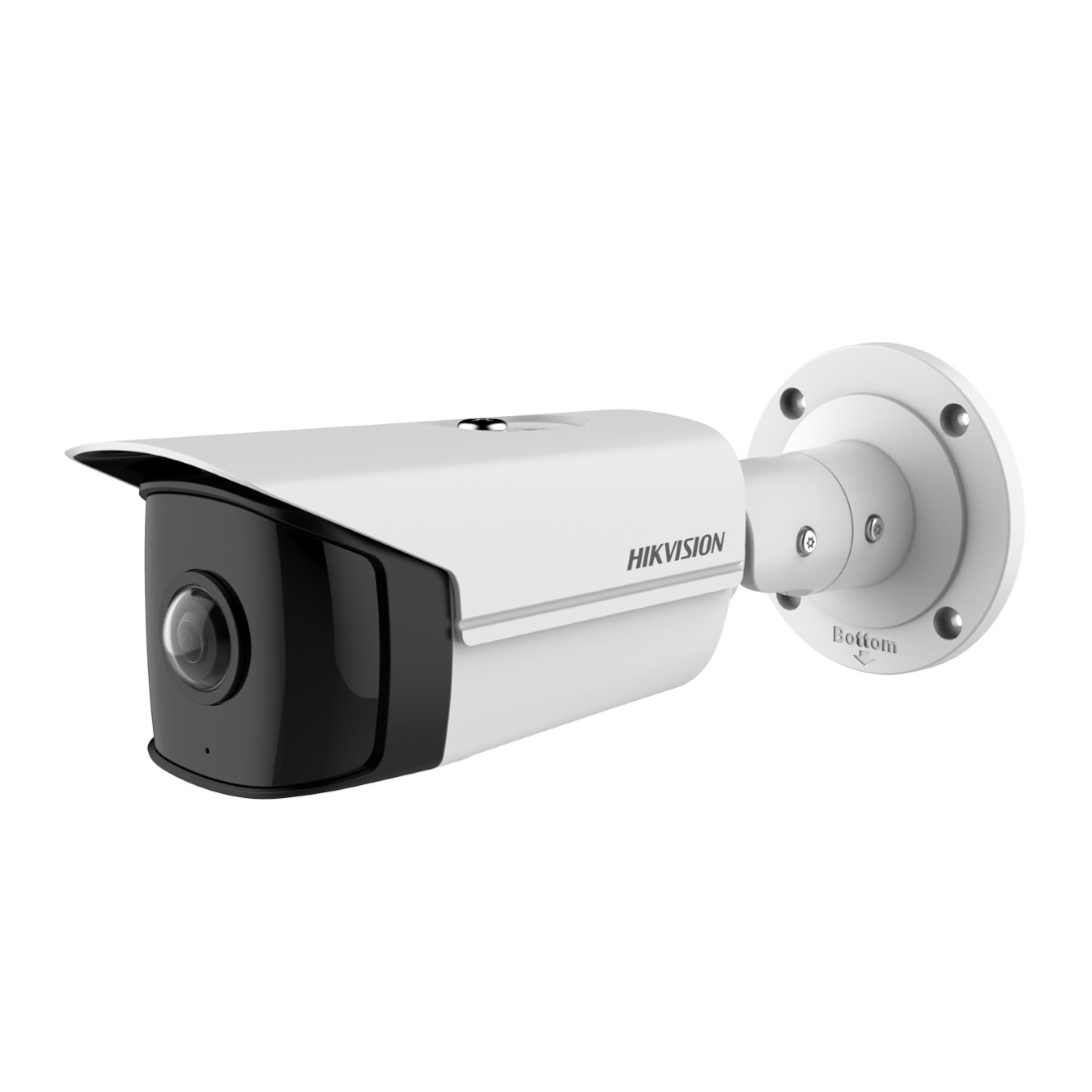

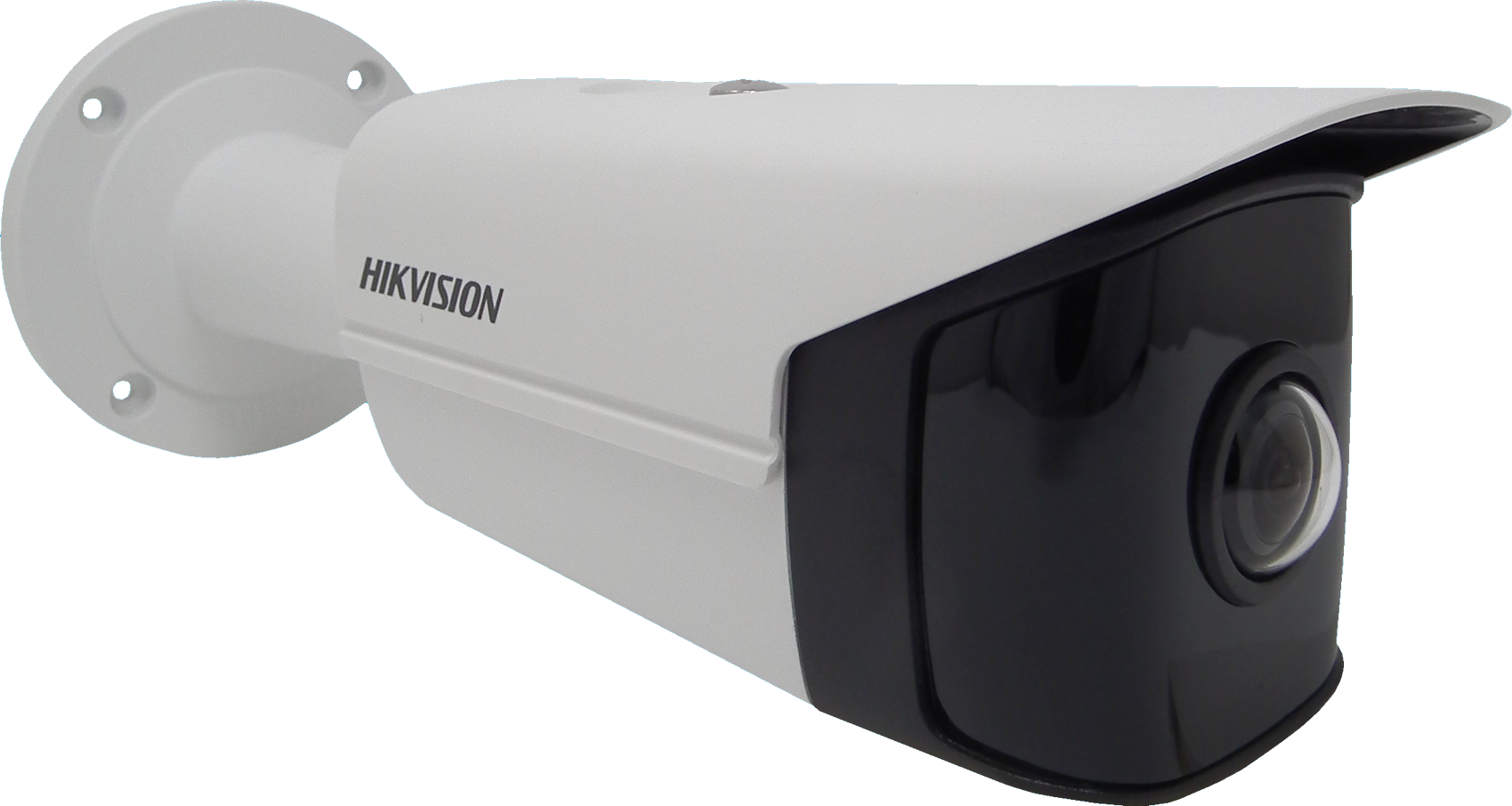

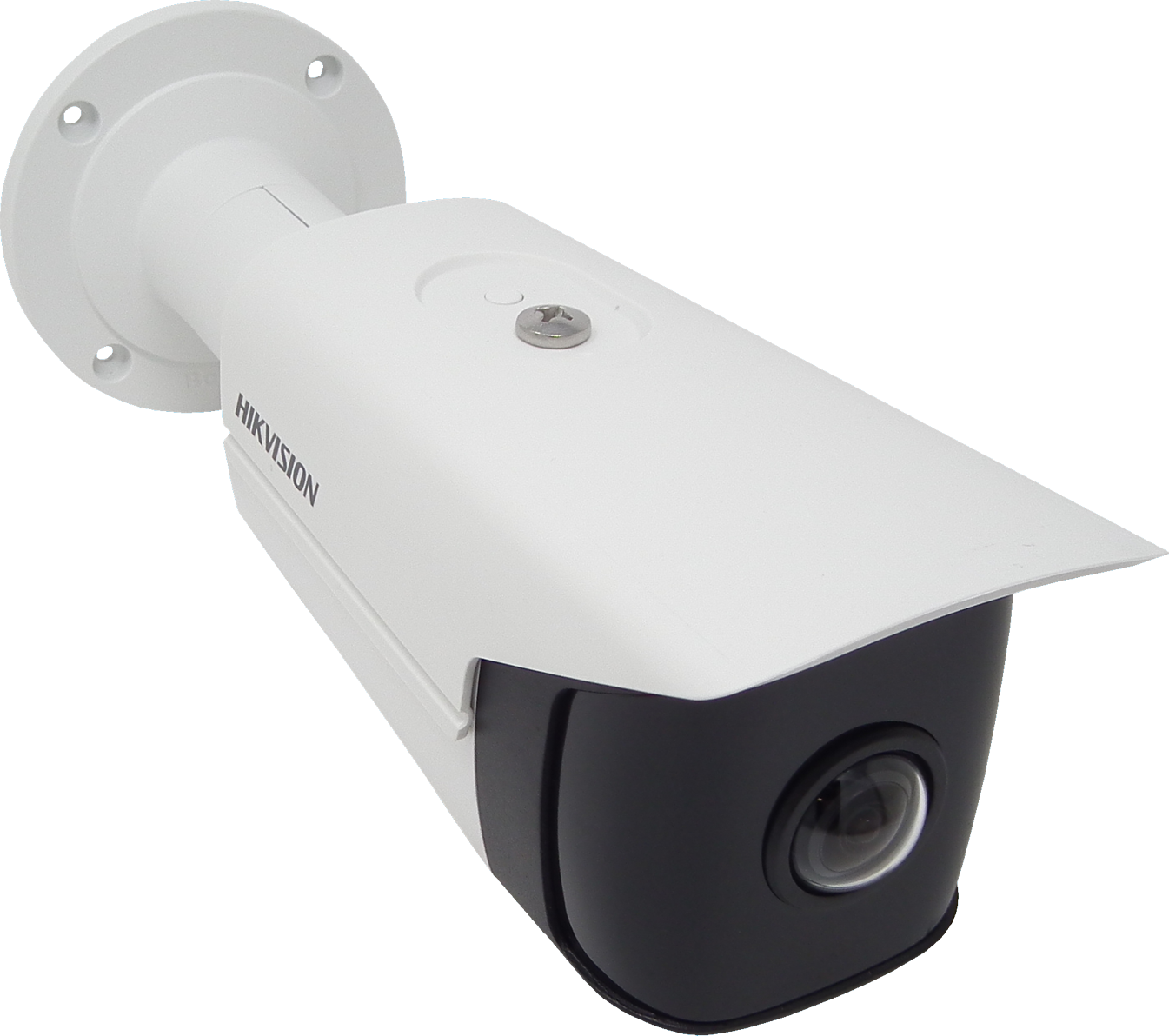

Hikvision DS-2CD2T45G0P-I
POSMarket SKU: Z14134
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.
4MP 180° Outdoor Wide Angle Bullet Camera, H.265
Product Overview
The DS-2CD2T45G0P-I or HIK-2CD2T45G0P-I super wide-angle bullet camera is ideal for wide area applications such as retail shops, foyers, receptions and carparks. This camera replaces two traditional cameras and reduces the number of channels on an NVR or VMS solution, the storage requirements, cabling and labour. This technology creates a smarter, more cost-effective solution.
Features
- 1/2.7" progressive scan CMOS
- 2688 x 1520 at 25fps
- 1.68mm ultra wide-angle fixed lens
- 120dB WDR
- H.265+, H.265, H.264+, H.264
- Built-in micro SD/SDHC/SDXC card slot, up to 256 GB
- IP67
Product Specifications
| CAMERA | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Min. Illumination | 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Day & Night | ICR Cut |
| WDR | 120 dB |
| Angle Adjustment | Φ 105 × 290.7 mm (Φ 4.1" × 11.4") |
| LENS | |
| Lens Type | 1.68 mm |
| Focus | Fixed |
| Aperture | F2.0 |
| FOV Horizontal: | 180°, vertical: 101°, diagonal: 180° |
| Lens Mount | M12 |
| IR | |
| Illuminator | |
| IR Range | 20 m |
| Wavelength | 850 nm |
| Smart Supplement | Light Yes |
| VIDEO | |
| Max. Resolution | 2688 x 1520 |
| Main Stream | |
| 50Hz: | 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) |
| 60Hz: | 24fps (2688 × 1520), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720) |
| Sub Stream | |
| 50Hz: | 25fps (640 × 480, 640 × 360, 320 × 240) |
| 60Hz: | 30fps (640 × 480, 640 × 360, 320 × 240) |
| COMPRESSION STANDARD | |
| Main stream: | H.265+/H.265/H.264+/H.264 |
| Sub-stream: | H.265/H.264 /MJPEG |
| H.264 Type | Main Profile/High Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Bit Rate | Control CBR/VBR |
| Stream Type | Main stream, sub-stream |
| Scalable Video Coding (SVC) | H.264 and H.265 |
| SMART FEATURE SET | |
| Smart Event | Line crossing detection, intrusion detection, unattended baggage detection, object removal detection, face detection, scene change detection |
| GENERAL | |
| Web Client Language | 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| General Function | Privacy mask, heartbeat, mirror, flash log, password reset via e-mail, pixel counter |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC +/- 25%; PoE (802.3at, class 4) |
| Power Consumption and Current | 12 VDC, 0.6 A, max. 7.2W PoE: (802.3af, 36 V-57 V), 0.3 A to 0.2 A, max. 8.7W |
| Power Interface | Φ5.5 mm coaxial power plug |
| Material | Metal |
| Dimension | |
| Camera: | Φ105 × 278 mm (Φ4.1″ × 10.9″) |
| With package: | 386 × 156 × 155 mm (15.20″ × 6.14″ × 6.10″) |
| Weight | |
| Camera: | 570 g (1.26 lb.) |
| With package: | 760 g (1.68 lb.) |
