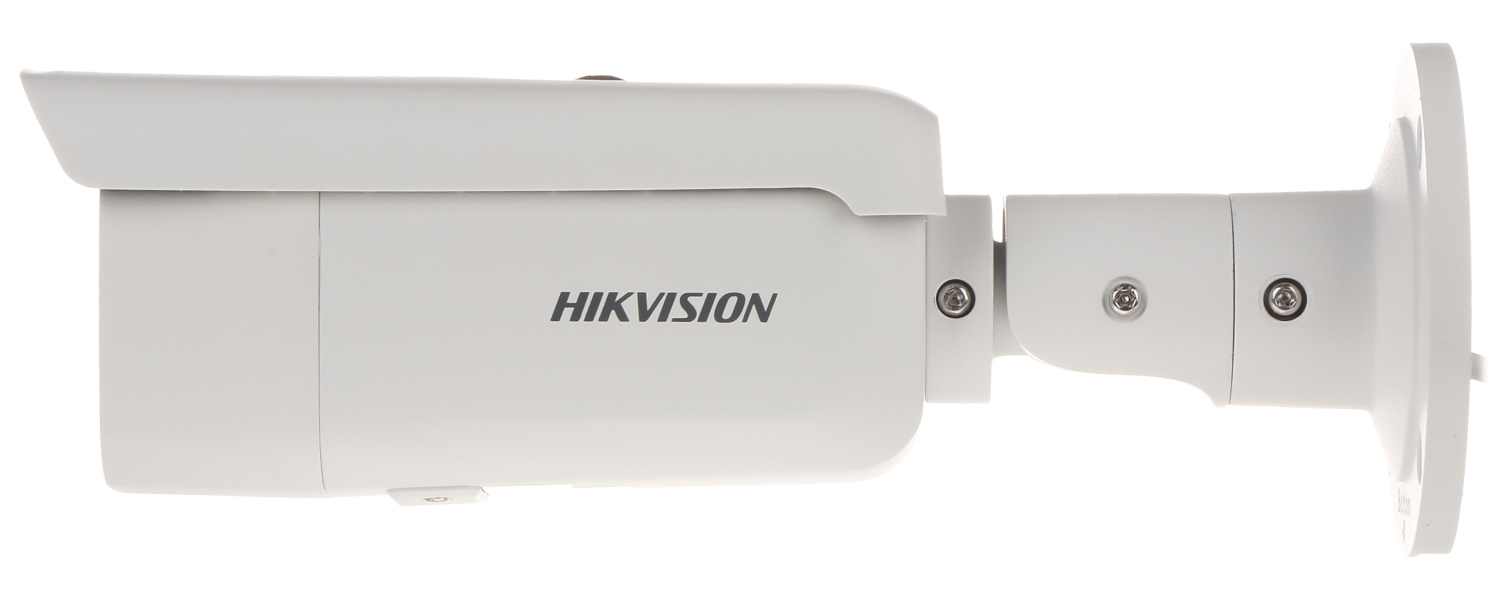

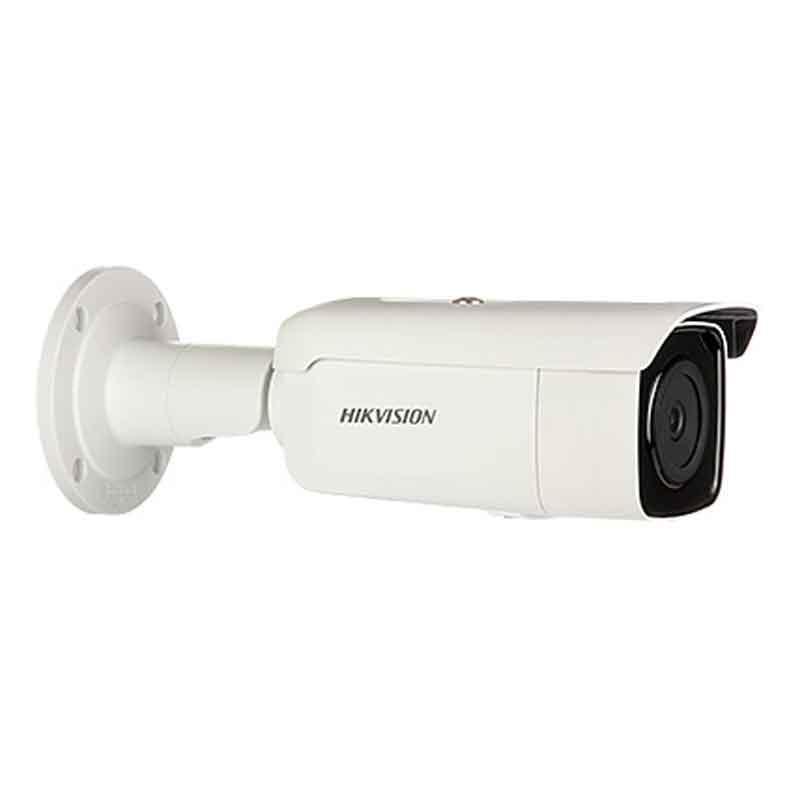

Hikvision DS-2CD2T46G1-2I
POSMarket SKU: Z14159
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.
4MP Outdoor AcuSense Bullet Camera, H.265
Product Overview
Features
- Max. 2688 x 1520 resolution at 30fps
- 2.8mm fixed lens
- H.265+, H.264+, H.265, H.264
- 120dB WDR
- False alarm reduction by human and vehicle target classification based on deep learning
- Powered by Darkfighter
- 12 VDC and PoE (802.3af, class 3)
- 50m IR
- Supports on board storage, up to 128 GB
- IP67
- BLC/3D DNR/ROI
- Colour: 0.007 Lux at (F1.2, AGC ON), 0.012 Lux at (F1.6, AGC ON)
Product Specifications
| CAMERA | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Min. Illumination | 0.007 Lux @ (F1.2, AGC ON), 0.012 Lux @ (F1.6, AGC ON) |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Focal length | 2.8/4/6/8 mm |
| Focus | Fixed |
| Aperture | F1.6 |
| FOV | |
| 2.8 mm | horizontal FOV: 104°, vertical FOV: 58°, diagonal FOV: 124° |
| 4 mm | horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 99° |
| 6 mm | horizontal 51°, vertical FOV: 28°, diagonal FOV: 58° |
| 8 mm | horizontal FOV: 39°, vertical FOV: 21°, diagonal FOV: 45° |
| Lens Mount | M12 |
| Day &Night | IR cut filter |
| DNR | 3D DNR |
| Wide Dynamic Range | 120dB |
| 3-Axis Adjustment | Pan:0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| COMPRESSION STANDARD | |
| Video Compression Main stream: | H.265/H.264 |
| Sub stream: | H.265/H.264/MJPEG |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main stream supports |
| H.265 | Type Main Profile |
| H.265+ | Main stream supports |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| IMAGE | |
| Max. Resolution | 2688 x 1520 |
| Main Stream | |
| 50Hz: | 25fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| 60Hz: | 30fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| SubStream | |
| 50Hz: | 25fps (704 × 576, 640 × 480, 352 × 288) |
| 60Hz: | 30fps (704 × 576, 640 × 480, 352 × 288) |
| Image Enhancement | BLC/3D DNR |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| ROI (Region of Interest) | Support 1 fixed region for main stream and sub stream separately |
| Day/Night Switch | Day/Night/Auto/Schedule |
| NETYWORK | |
| Network Storage | Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| General Function | One-key reset, anti-filter |
| Firmware Version | V5.5.72 |
| API ONVIF (PROFILE S, PROFILE G), | ISAPI |
| GENERAL | |
| Operating Conditions | -30 °C to +50 °C (-22 °F to +122 °F),humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC+/- 25%, 5.5 mm coaxial power plug PoE (802.3at, class 4) |
| Power Consumption | |
| -2I: | 12 VDC, 0.9 A, Max: 10.5 W PoE: (802.3at, 42.5 V to 57 V), 0.3A to 0.1A, Max: 13 W |
| -4I: | 12 VDC, 1.2 A, Max: 14 W PoE: (802.3at, 42.5 V to 57 V), 0.4A to 0.2A, Max: 17 W |
| IR | |
| -2I: | 2LEDs, up to 50 m |
| -4I: | 4LEDs, up to 80 m |
| Wavelength | 850 nm |
| Protection Level | IP67 |
| Material Front cover: | metal, back cover: metal |
| Dimensions Camera: | Φ105 × 289.5 mm (Φ4.1″ × 11.4″) |
| Weight Camera: | 1100 g (2.4 lb.) |
| With package: | 1600 g (3.5 lb.) |
