Hikvision DS-2CD2T47G1-L
POSMarket SKU: Z14131
This model is available in 4 different configurations. Select a configuration below or contact our experts on 1300 737 998.

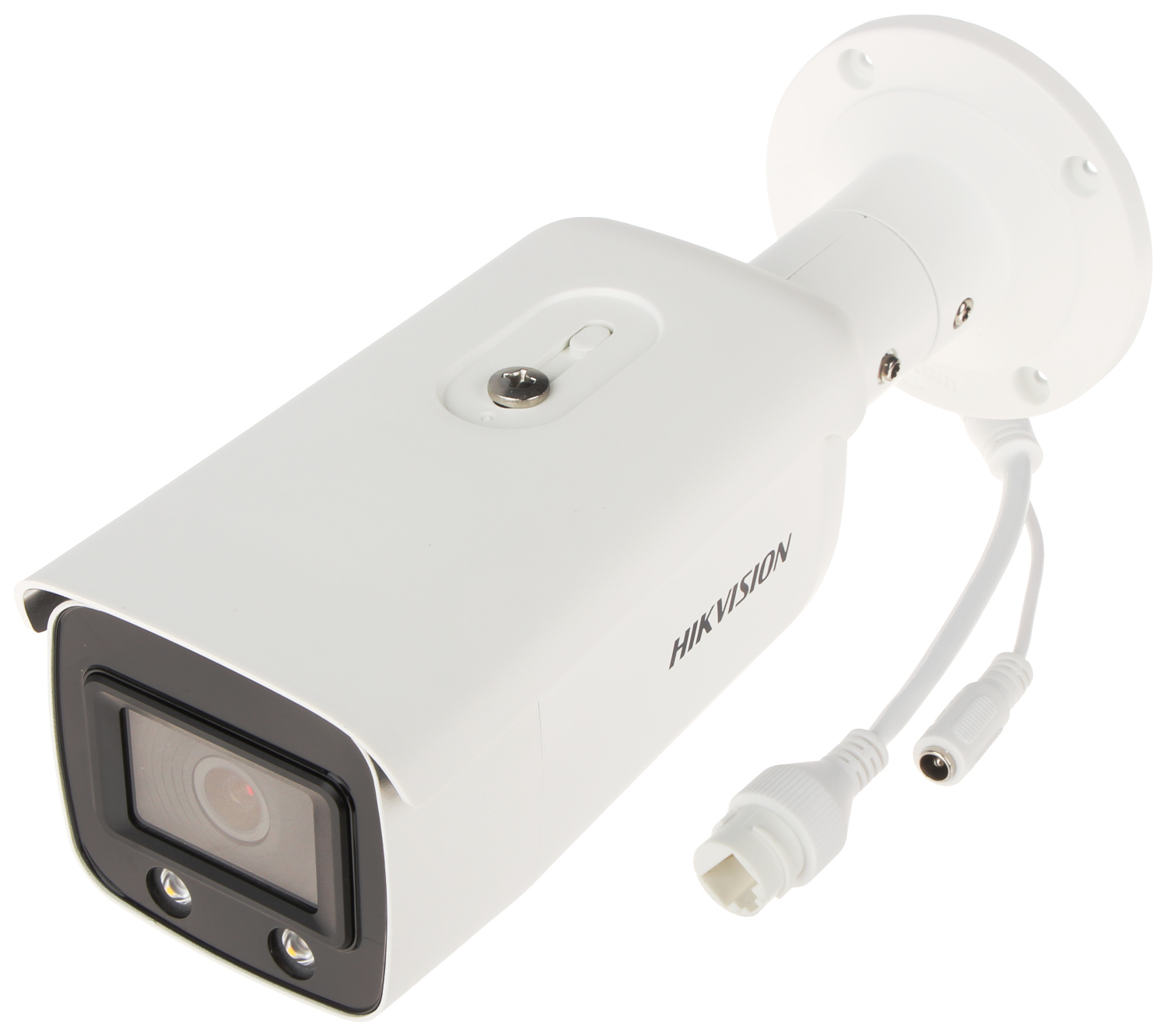

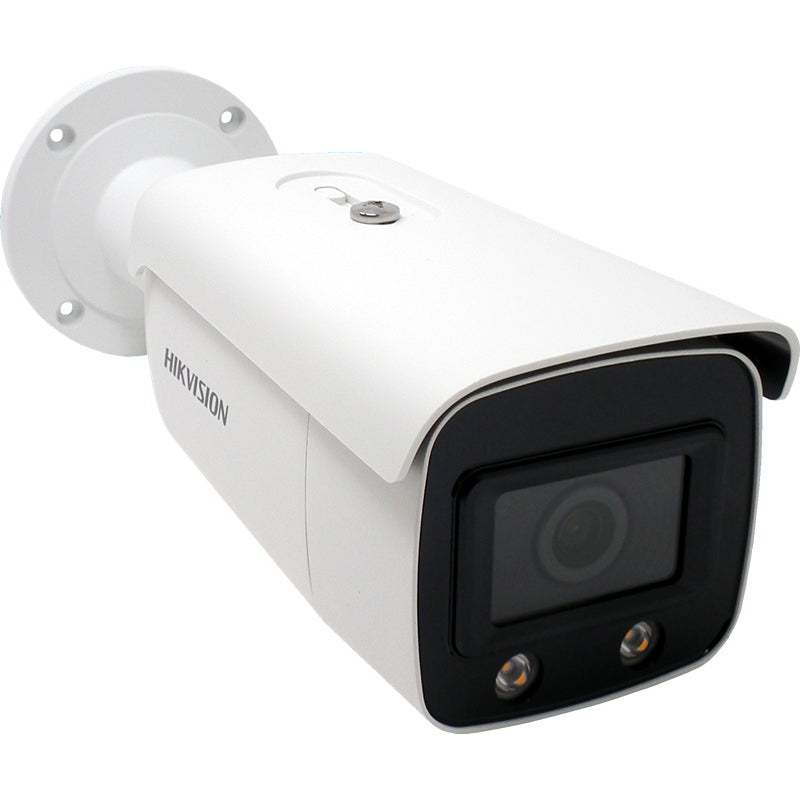

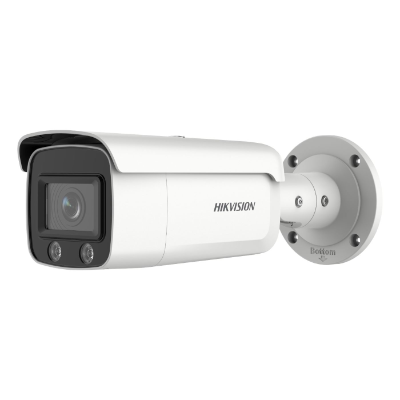

4MP ColorVu Fixed Bullet Outdoor Network Camera.
Product Overview
Features
- Max. 2688 x 1520 at 30fps
- 4 mm/6 mm fixed lens
- H.265+, H.264+
- 120dB WDR
- IP67
- 12 VDC and PoE (802.3af, class 3)
- Built-in micro SD/SDHC/SDXC slot, up to 128G
- BLC/3D DNR/HLC/ROI
- 0.0014 Lux at (F1.0, AGC ON), 0 Lux with Light
- Full time colour
Product Specifications
| CAMERA | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Min. Illumination | 0.0014 @ (F1.0, AGC ON), 0 Lux with Light |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| DNR | 3D DNR |
| Wide Dynamic Range | 120dB |
| Angle Adjustment | Pan:0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| LENS | |
| Focal length | 4/6 mm |
| Aperture | F1.0 |
| Focus | Fixed |
| FOV | |
| 4 mm | horizontal FOV: 94°, vertical FOV: 48°, diagonal FOV: 115° |
| 6 mm | horizontal FOV:57°, vertical FOV: 31°, diagonal FOV: 67° |
| Lens Mount | M16 |
| COMPRESSION STANDARD | |
| Video Compression | |
| Main stream: | H.265/H.264 |
| Sub-stream: | H.265/H.264/MJPEG |
| Third stream: | H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main stream supports |
| H.265 Type | Main Profile |
| H.265+ | Main stream supports |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| SMART FEATURE SET | |
| Behavior Analysis | Line crossing detection, intrusion detection, object removal detection, unattended baggage detection |
| Exception Detection | Scene change detection |
| Face Detection | Yes |
| IMAGE | |
| Max. Resolution | 2688 x 1520 |
| Main Stream | |
| 50Hz: | 25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) |
| 60Hz: | 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) |
| Sub Stream | |
| 50Hz: | 25fps (640 × 480, 640 × 360, 320 × 240) |
| 60Hz: | 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream | |
| 50Hz: | 25fps (1280 × 720, 640 × 360, 352 × 288) |
| 60Hz: | 30fp s(1280 × 720, 640 × 360, 352 × 240) |
| Image Enhancement | BLC/3D DNR/HLC |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| Day/Night | Switch Day/Night |
| ROI (Region of Interest) | Support 1 fixed region for main stream and sub-stream separately |
| GENERAL | |
| Operating Conditions | -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC +/- 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3) |
| Power Consumption | 12 VDC, 0.7 A, max. 9.5 W PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 11 W |
| Visible Light Range | Up to 30m |
| Protection Level | IP67 |
| Material Front cover: | metal, back cover: metal |
| DIMENSION | |
| Camera: | Φ 105 × 290.7 mm (Φ 4.1" × 11.4") |
| With package: | 385 x190 x 180 mm (15.2" x 7.5" x 7.1") |
| Weight Camera: | 31200 g (2.6 lb.) |
| With package: | 1800 g (4 lb.) |
