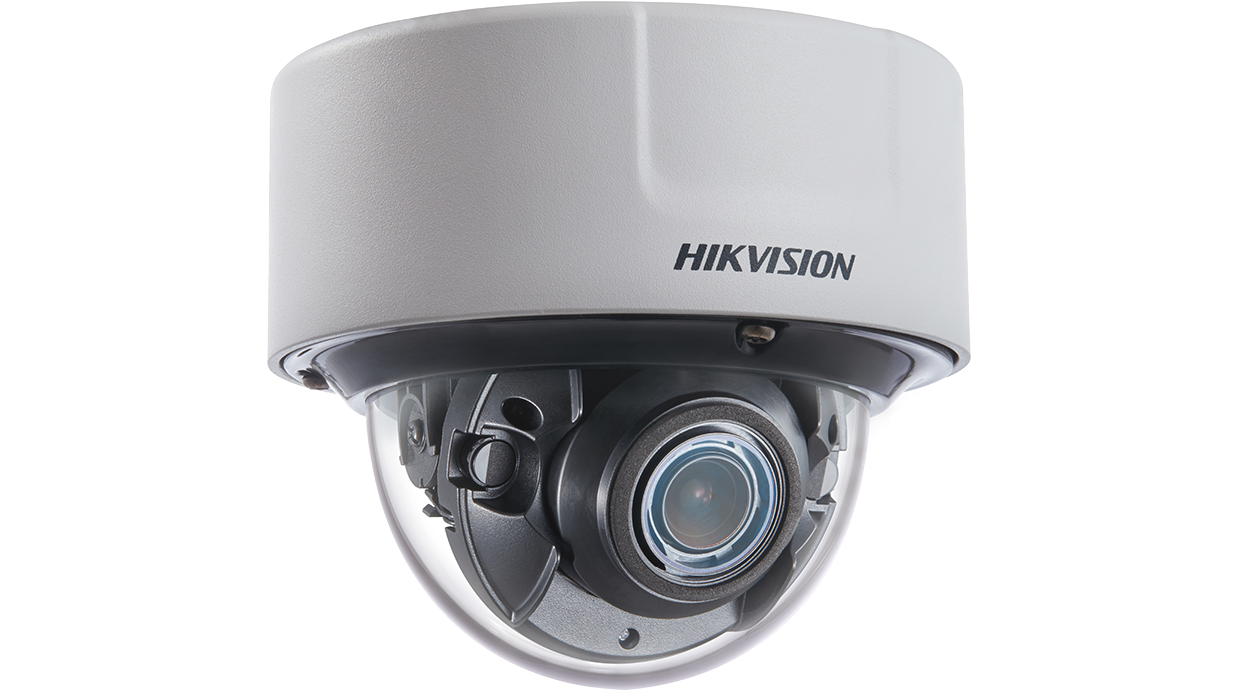

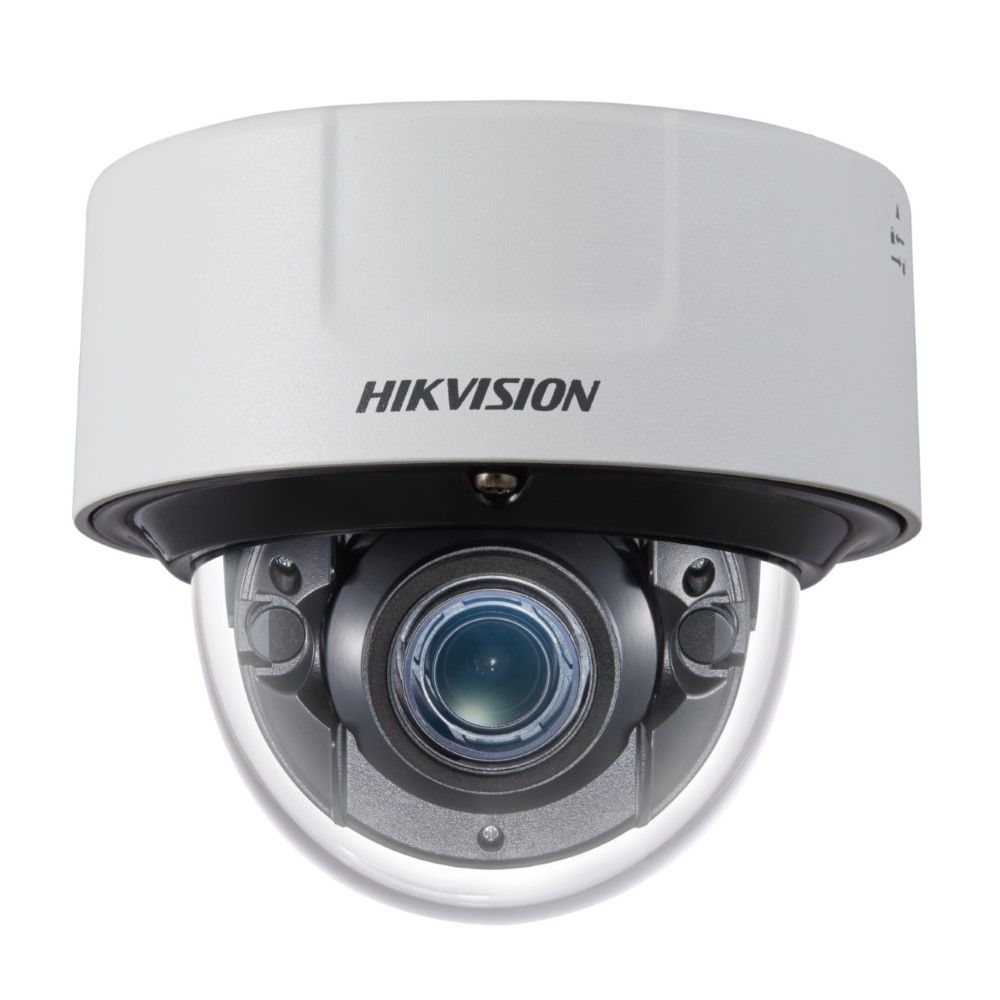

Hikvision DS-2CD5146G0-IZS
POSMarket SKU: Z14143
DS-2CD5146G0-IZS: 4MP Indoor Darkfighter Dome Camera, 140dB ,WDR, IR, VCA, 30fps, 2.8-12mm
4MP Indoor Darkfighter Dome Camera.
Product Overview
Features
- 1/1.8 inch progressive scan CMOS
- 2560 x 1440 at 30fps
- Colour: 0.002 lux at (F1.2, AGC ON)
- 2.8-12mm motorised varifocal lens
- H.265, H.265+, H.264+, H.264
- 140dB wide dynamic range (WDR)
- Up to 30m IR
- Video content analytics (VCA) including face detection and object counting
- 5 defined streams and up to 5 custom streams supported
- Supports on-board storage up to 256 GB
- IK10 rating
- 12VDC or PoE
Product Specifications
| CAMERA | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Min. Illumination Color: | 0.002 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Speed | 1 s to 1/100,000 s |
| Slow Shutter | Yes |
| Day & Night | IR Cut Filter |
| Digital Noise Reduction | 3D DNR |
| WDR | 140 dB |
| Angle Adjustment | Pan: 0°to 355°, tilt: 0°to 75°, rotate: 0°to 355° |
| LENS | |
| Focal length | 2.8 to 12 mm |
| Aperture | F1.2 |
| Focus | Auto, semi-auto, manual |
| FOV | 2.8 to 12 mm, horizontal FOV 102° to 38°, vertical FOV 53.0° to 21.2°, diagonal FOV 122.2° to 45° |
| Lens Mount | Integrated |
| IR | |
| IR Range | Up to 30 m |
| Wavelength | 850 nm |
| IMAGE | |
| Max. Resolution | 2560 x 1440 |
| Main Stream | |
| 50Hz: | 25fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| 60Hz: | 30fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub Stream | |
| 50Hz: | 25fps (704 × 576, 640 × 480) |
| 60Hz: | 30fps (704 × 576, 640 × 480) |
| Third Stream | |
| 50Hz: | 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) |
| 60Hz: | 30fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) |
| Fourth Stream | |
| 50Hz: | 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) |
| 60Hz: | 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Fifth Stream | |
| 50Hz: | 25fps (704 × 576, 640 × 480) |
| 60Hz: | 30fps (704 × 576, 640 × 480) |
| Custom Stream | |
| 50Hz: | 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) |
| 60Hz: | 30fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) |
| Image Enhancement | BLC, HLC, Defog, EIS |
| Image Setting | Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
| Target Cropping | Yes |
| SVC | H.264 and H.265 encoding |
| Day/Night | Switch Day/Night/Auto/Schedule/Triggered by Alarm In |
| Picture Overlay | LOGO picture can be overlaid on video with 128 x 128 24bit bmp format |
