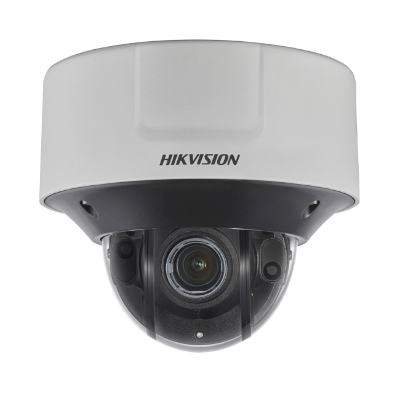

Hikvision DS-2CD5546G0-IZHS
from $1,056.83 (incl. GST)
POSMarket SKU: Z14100
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.
4MP Outdoor Darkfighter Dome Camera, 140dB WDR, IR, VCA.
Product Overview
Part of Hikvision's enterprise range of network cameras, the DS-2CD5546G0-IZS or HIK-2CD5546G0IZS is an outdoor motorised varifocal IR dome camera that produces an exceptional 4MP high-resolution video. Powered by Darkfighter and Lightfighter technology, this camera can produce clear and crisp images in environments with extreme background lighting or in ultra-low light situations. The HIK-2CD5546G0IZS includes an ideal combination of smart features for its affordable price such as 140dB true wide dynamic range (WDR), image sensor technology, a high definition image processing chipset, audio/alarm IO, smart video content analytics (VCA) and built-in EXIR 2.0 infrared technology providing up to 30m visibility at night. Additionally, this camera supports H.265 and H.265+ intelligent video compression, which reduces bandwidth/storage requirements by up to 50 percent and 80 percent, respectively. With a 2.8-12mm motorised varifocal lens, this camera offers great flexibility.
The DS-2CD5546G0-IZHS or HIK-2CD5546GIZHS includes an ideal combination of smart features for its affordable price and built-in heater.
Features
The DS-2CD5546G0-IZHS or HIK-2CD5546GIZHS includes an ideal combination of smart features for its affordable price and built-in heater.
Features
- 1/1.8 inch progressive scan CMOS
- 2560 x 1440 at 30fps
- Colour: 0.002 lux at (F1.2, AGC ON)
- 2.8-12mm motorised varifocal lens
- H.265, H.265+, H.264+, H.264
- 140dB wide dynamic range (WDR)
- Up to 30m IR
- Video content analytics (VCA) including face detection and object counting
- 5 defined streams and up to 5 custom streams supported
- Supports on-board storage up to 256 GB
- IK10 & IP67 rating
- 12VDC or PoE
Product Specifications
| CAMERA | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Min. Illumination Color: | 0.002 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Speed | 1 s to 1/100,000 s |
| Slow Shutter | Yes |
| Day & Night | IR Cut Filter |
| Digital Noise Reduction | 3D DNR |
| WDR | 140 dB |
| Angle Adjustment Pan: | 0°to 355°, tilt: 0°to 75°, rotate: 0°to 355° |
| LENS | |
| Focal length | 2.8 to 12 mm |
| Aperture | F1.2 |
| Focus | Auto, semi-auto, manual |
| FOV | 2.8 to 12 mm, horizontal FOV 102° to 38°, vertical FOV 53.0° to 21.2°, diagonal FOV 122.2° to 45° |
| Lens Mount | Integrated |
| IR | |
| IR Range | Up to 30 m |
| Wavelength | 850 nm |
| COMPRESSION STANDARD | |
| Video Compression | Main stream: H.265/H.264/H.265+/H.264+ |
| Sub stream/third stream/fourth stream/fifth stream/custom stream: | H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.264+ | Main stream support |
| H.265 Type | Main Profile |
| H.265+ | Main stream support |
| Video Bit Rate | 256 Kbps to 16 Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/128-768Kbps(PCM) |
| SMART FEATURE SET | |
| Behavior Analysis | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection |
| Exception Detection | Scene change detection, audio exception detection, defocus detection |
| Statistics | Counting |
| Face Detection | Yes |
| Region of Interest | Main stream/sub stream/third stream/fourth stream/fifth stream: 4 fixed regions for each stream, and dynamic face tracking |
| IMAGE | |
| Max. Resolution | 2560 x 1440 |
| MAIN STREAM | |
| 50Hz: | q25fps (2560 x 1440, 1920 × 1080, 1280 × 720) |
| 60Hz: | 30fps (2560 x 1440, 1920x 1080, 1280 x 720) |
| Sub Stream | 50Hz: 25fps (704 x 576, 640 x 80) |
| 60Hz: 30fps | (704 x 480, 640 x 480) |
| Power Supply | 12 VDC ± 20%, two-core terminal block PoE (802.3at, class 3): 42.5 V to 57 V |
| Power Consumption and Current | -IZS: 12 VDC ± 20%: 1.2 A, max. 12 W, PoE (802.3at, class 3): 42.5 V to 57 V, 0.3 A to 0.2 A -IZHS: 12 VDC ± 20%: 1.4 A, max. 17W, PoE (802.3at, class 3): 42.5 V to 57 V, 0. 4 A to 0.3 A |
| Protection Level | IP67, IK10 |
| Material | Aluminum Alloy |
| DIMENSION | |
| Camera: | Φ162 × 140.3 mm (Φ6.4″ × 5.5″) |
| With package: | 251 × 215 × 189 mm (9.9″ × 8.5″ × 7.4″) |
| Weight Camera: | 1450 g (3.20 lb.) |
| With package: | 1950 g (4.30 lb.) |
