Hikvision DS-2CD5AC5G0-IZS
POSMarket SKU: Z14151

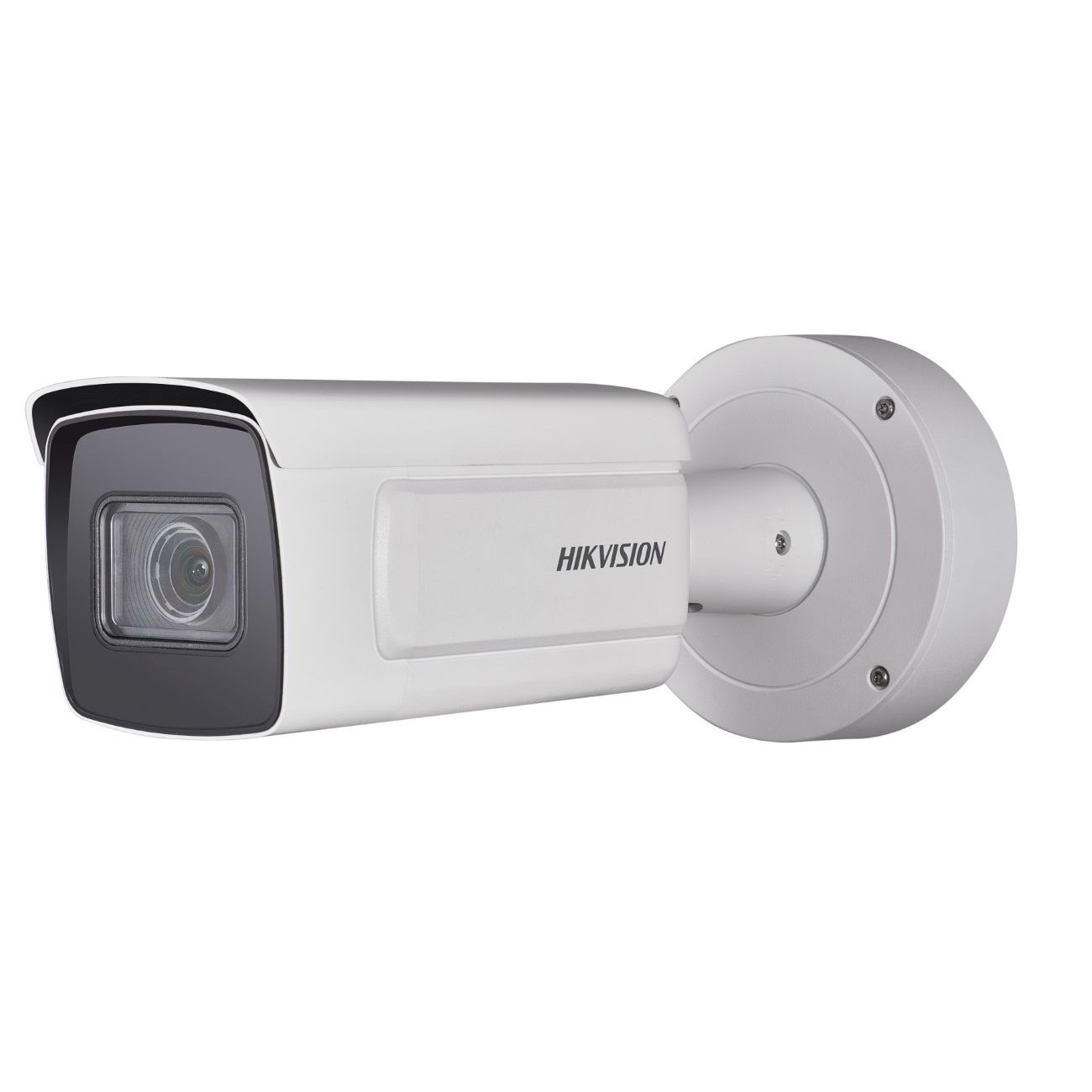

DS-2CD5AC5G0-IZS: 12MP Outdoor Bullet Camera, 50m IR, DWDR, H.265, IP67, IK10, 2.8-12mm
12MP Moto Varifocal Bullet Network Camera
Product Overview
Features
- 1/1.7" Progressive Scan CMOS
- 4000 x 3000 @ 20fps
- 2.8 to 12 mm motor-driven lens
- Color: 0.008 Lux @ (F1.2, AGC ON)
- H.265, H.265+, H.264, H.264+
- Digital WDR
- 3D DNR
- IR range up to 50 m
- Five defined streams and up to five custom
- streams
- 6 behavior analyses, 2 exception detection, and
- face detection
- Built-in microSD/SDHC/SDXC card slot, up to 256
- GB
- Alarm I/O
- IP67, IK10
Product Specifications
| CAMERA | |
| Image Sensor | 1/1.7" Progressive Scan CMOS |
| Min. Illumination Color: | 0.008 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Speed | 1 s to 1/100,000 s |
| Slow Shutter | Yes |
| Day & Night | IR Cut Filter |
| Digital Noise Reduction | 3D DNR |
| WDR Digital | WDR |
| Angle Adjustment | pan:0°to 355°, tilt: 0°to 90°, rotate: 0°to 360° |
| LENS | |
| Focal length | 2.8 to 12 mm |
| Aperture | F1.2 |
| Focus | Auto, semi-auto, manual |
| FOV | 2.8 to 12 mm, horizontal FOV 101°to 36.1°, vertical FOV 72°to 27.2°, diagonal FOV 130°to 45.2° |
| Lens Mount | Integrated |
| IR | |
| IR Range | up to 50 m |
| Wavelength | 850 nm |
| COMPRESSION STANDARD | |
| Video Compression Main stream: | H.265/H.264/H.265+/H.264+ |
| Sub stream/third stream/fourth stream/fifth stream/custom stream: | H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.264+ | Main stream supports |
| H.265 Type | Main Profile |
| H.265+ | Main stream supports |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| INTERFACE | |
| Audio | No |
| Communication Interface | 1 RJ45 10M/100M/1000M Ethernet port |
| Alarm | 2 inputs, 2 outputs (up to 12 VDC 1A or 10 VAC 500 mA) |
| Video Output | 1Vp-p composite output (75Ω/CVBS) |
| On-board storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
| Reset Button | Yes |
| AUDIO | |
| Environment Noise Filtering | No |
| Audio Sampling Rate | No |
| GENERAL | |
| Firmware Version | 5.5.60 |
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F), -H: -40 °C to 60 °C (-40 °F to 140 °F); Humidity 95% or less (non-condensing) |
