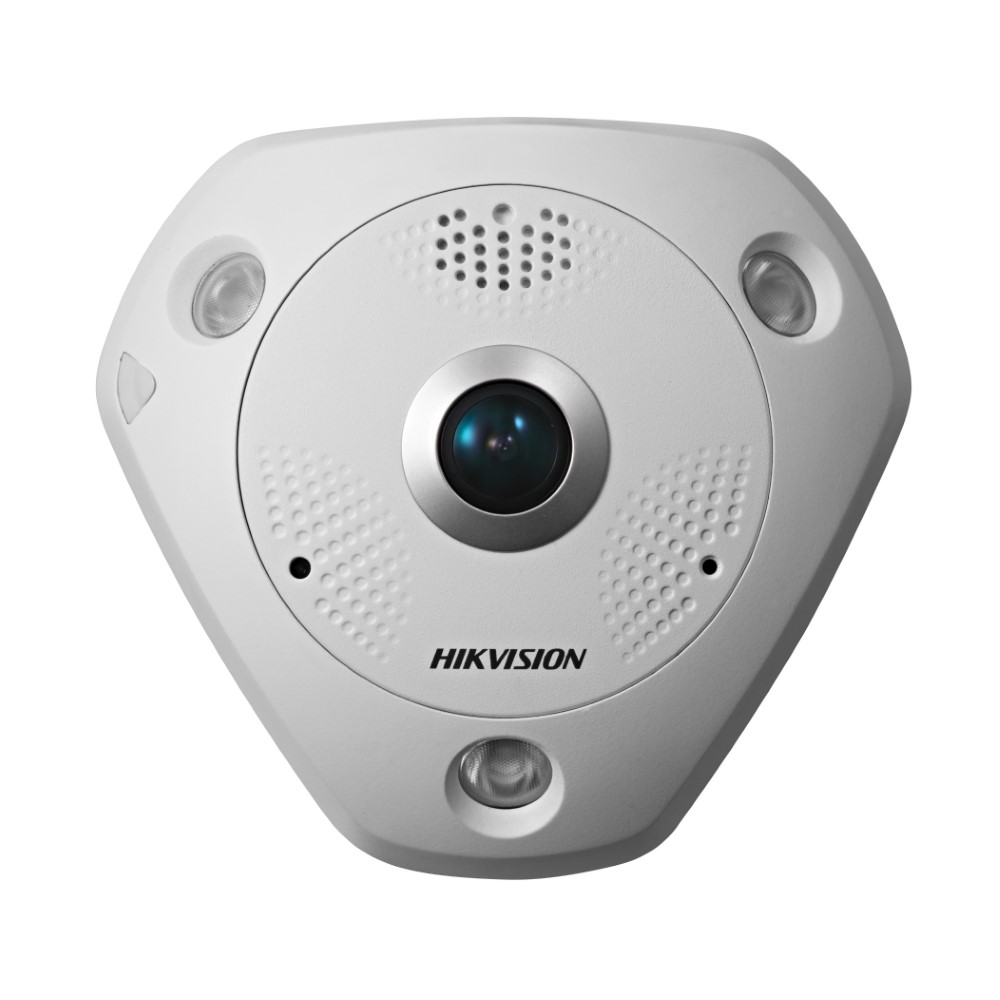

Hikvision DS-2CD63C2F-IS
$1,504.39 (incl. GST)
POSMarket SKU: Z14149
DS-2CD63C2F-IS: Hivision 12MP Indoor Fisheye Camera, DWDR, 15 IR, Virtual PTZ, Mic, 1.98mm
12MP Indoor Fisheye Camera, DWDR, 15 IR
Product Overview
The DS-2CD63C2F-IS is an indoor fisheye camera that is designed to single-handedly capture images from every corner of a particular location and eliminate blind sports. It features a progressive scan CMOS sensor to provide high-resolution images of up to 12 megapixels (4000x3072), and a fisheye lens for a 360 panoramic or multiple de-warped views. Additionally, IR functionality provides up to 15m IR distance of visibility under low or even zero-light conditions.
Rigorously tested by Hikvision, this camera is a great choice for applications that require detailed coverage of wide, open areas like airports, shopping malls, parking lots, retail stores, offices, restaurants, classrooms, and more.
Features
Rigorously tested by Hikvision, this camera is a great choice for applications that require detailed coverage of wide, open areas like airports, shopping malls, parking lots, retail stores, offices, restaurants, classrooms, and more.
Features
- 1/1.7" progressive scan CMOS
- 12 megapixel image sensor
- Up to 4000 x 3072 Resolution
- Multiple viewing modes
- Line crossing and intrusion detection
- Ceiling, wall or table mount modes
- Up to 15m IR range
- 360 view angle
- Built-in microphone and speaker
- Audio/alarm I/O
- 1.98mm fisheye lens
Product Specifications
| CAMERA | |
| Image Sensor | 1/1.7" Progressive Scan CMOS |
| Min. Illumination | 0.01 Lux @ (F1.2, AGC ON), 0.04 Lux @ (F2.4, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/25(1/30)s ~ 1/100,000s |
| Lens | 1.98mm @F2.4, angle of view: 360° |
| Lens Mount | M12 |
| Day & Night | ICR |
| COMPRESSION STANDARD | |
| Video Compression | H.264/MJPEG |
| H.264 Type | Baseline Profile / Main Profile / High Profile |
| Video Bit Rate | 32 Kbps - 16 Mbps |
| Audio Compression | (-S) G.711/G.726/MP2L2 |
| Audio Bit Rate | 64Kbps(G.711) / 16Kbps(G.726) /64Kbps(MP2L2) |
| IMAGE | |
| Max. Resolution | 4000 x 3072 |
| Live Mode | |
| Mode1 | 1×Fisheye(main stream) + 1×Fisheye(sub stream) + 3×PTZ |
| Mode2 | 1x Panorama(main stream) + 1xPanorama(sub stream) |
| Mode3 | 4PTZ |
| Mode4 | Fisheye |
| Mode1 | |
| 50Hz: | 1xFisheye(2560x2560, 2048x2048, 1280x1280, 10fps) + 1xFisheye(720x720, 10fps) +3xPTZ(1600x1200, 10fps) |
| 60Hz: | 1×Fisheye(2560×2560, 1280×1280, 10fps) + 1×Fisheye(720×720, 10fps) +3×PTZ(1600×1200,10fps) |
| Frame Rate | |
| Mode2 | |
| 50Hz: | 1×Panorama(3072×2304, 3072×1152, 12.5fps) + 1×Panorama(704×576, 12fps) |
| 60Hz: | 1×Panorama(3072×2304, 3072×1152, 15fps) + 1×Panorama(704×576, 15fps) |
| Mode3 | |
| 50Hz: | 4×PTZ(1600×1200,12.5fps) |
| 60Hz: | 4×PTZ(1600×1200,15fps) |
| Mode4 | |
| 50Hz: | 1x Fisheye(4000×3072, 20fps,3072×3072, 2560×2560, 25fps)+1×fisheye(720×720, 704×576, 12.5fps) |
| 60Hz: | 1x Fisheye(4000×3072, 20fps,3072×3072, 2560×2560, 25fps)+1×fisheye(720×720, 704×576, 15fps) |
| Digital Noise Reduction | 3D DNR |
| Image Setting | Saturation, Brightness, Contrast, Hue, Sharpness, AGC, White Balance |
| Wide Dynamic Range | Digital WDR |
| Day/Night | Switch Auto/Schedule/Alarm Trigger |
| ROI | Up to 4 fixed areas in each stream |
| INTELLIGENT | |
| Heat Map | Recording the motion of foot traffic over a period of time and displays temporal density and spatial statistics in different colors. |
| INTERFACE | |
| Communication Interface | 1 RJ45 10M/100M/1000M Ethernet interface; 1 RS485 interface(-S) |
| Audio Input 1 | 3.5mm audio interface, Mic in/Line in (-S); 1 built-in microphoneby default, 24db |
| Audio Output 1 | 3.5mm audio output interface (-S); 1 built-in speaker by default, supportecho cancellation |
| Alarm Input(-S) | 1 |
| Alarm Output(-S) | 1 |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
