Hikvision DS-2CD63C2F-IV

POSMarket SKU: Z14147

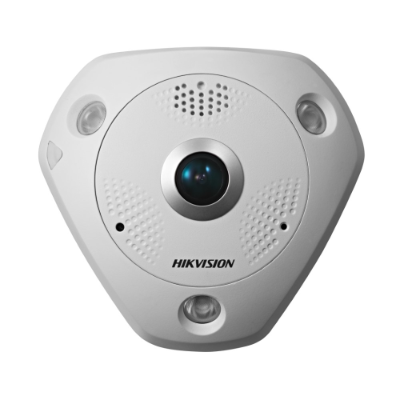

DS-2CD63C2F-IV: Hikvision 12MP Outdoor Fisheye Camera, DWDR, 15m IR, ePTZ, IP66, 1.98mm

This product has been replaced by the Hikvision DS-2CD63C5G0-IVS. If you need this particular model please contact our sales team on 1300 737 998.

12MP Outdoor Fisheye Camera.

Product Overview

The Hikvision HIK-2CD63C2F-IV or DS-2CD63C2F-I(V) is a vandal proof 360 degree panoramic camera that has been designed to single-handedly capture images from every corner of a particular location and eliminate blind spots. Featuring a progressive scan CMOS sensor, it provides high-resolution images at up to 12MP (4000x3072). Additionally, this camera is capable of streaming multiple de-warped streams allowing for virtual PTZ functions. With IR functionality that provides up to 15m IR distance or visibility under low or even zero-light conditions, this camera is a suitable as part of solution that requires you to provide detailed coverage of wide or open areas like airports, shopping malls, parking lots, offices, restaurants, classrooms, and more.

Features
  • 1/1.7" progressive scan CMOS
  • 12MP image sensor - up to 4000 x 3072 resolution
  • Multiple viewing modes
  • Line crossing and intrusion detection
  • Heat mapping
  • Ceiling, wall or table mount modes
  • Up to 15m IR range
  • 1.98mm fisheye lens
  • IP66
  • IK10 vandal resistance rating


Product Specifications

CAMERA
Image Sensor 1/1.7" Progressive Scan CMOS
Min. Illumination 0.01 Lux @ (F1.2, AGC ON), 0.04 Lux @ (F2.4, AGC ON), 0 Lux with IR
Shutter Speed 1/25(1/30)s ~ 1/100,000s
Lens 1.98mm @F2.4, angle of view: 360°
Lens Mount M12
Day & Night ICR
COMPRESSION STANDARD
Video Compression H.264/MJPEG
H.264 Type Baseline Profile / Main Profile / High Profile
Video Bit Rate 32 Kbps - 16 Mbps
Audio Compression (-S) G.711/G.726/MP2L2
Audio Bit Rate 64Kbps(G.711) / 16Kbps(G.726) /64Kbps(MP2L2)
Max. Resolution 4000 x 3072
Live Mode
Mode1 1×Fisheye(main stream) + 1×Fisheye(sub stream) + 3×PTZ
Mode2 1x Panorama(main stream) + 1xPanorama(sub stream)
Mode3 4PTZ
Mode4 Fisheye
Mode1
50Hz: 1xFisheye(2560x2560, 2048x2048, 1280x1280, 10fps) + 1xFisheye(720x720, 10fps) +3x PTZ(1600 x 1200, 10fps)
60Hz: 1×Fisheye(2560×2560, 1280×1280, 10fps) + 1×Fisheye(720×720, 10fps) +3×PTZ(1600×1200,10fps)
Frame Rate
Mode2
50Hz: 1×Panorama(3072×2304, 3072×1152, 12.5fps) + 1×Panorama(704×576, 12fps)
60Hz: 1×Panorama(3072×2304, 3072×1152, 15fps) + 1×Panorama(704×576, 15fps)
Mode3
50Hz: 4×PTZ(1600×1200,12.5fps)
60Hz: 4×PTZ(1600×1200,15fps)
Mode4
50Hz: 1x Fisheye(4000×3072, 20fps,3072×3072, 2560×2560, 25fps)+1×fisheye(720×720, 704×576, 12.5fps)
60Hz: 1x Fisheye(4000×3072, 20fps,3072×3072, 2560×2560, 25fps)+1×fisheye(720×720, 704×576, 15fps)
Digital Noise Reduction 3D DNR
Image Setting Saturation, Brightness, Contrast, Hue, Sharpness, AGC, White Balance
Wide Dynamic Range Digital WDR
Day/Night Switch Auto/Schedule/Alarm Trigger
ROI Up to 4 fixed areas in each stream
INTELLIGENT
Heat Map Recording the motion of foot traffic over a period of time and displays temporal density and spatial statistics in different colors.
INTERFACE
Communication Interface 1 RJ45 10M/100M/1000M Ethernet interface; 1 RS485 interface(-S)
Audio Input 1 3.5mm audio interface, Mic in/Line in (-S); 1 built-in microphoneby default, 24db
Audio Output 1 3.5mm audio output interface (-S); 1 built-in speaker by default, supportecho cancellation
Alarm Input(-S) 1
Alarm Output(-S) 1
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
