Hikvision DS-2CD6825G0 C-IV
$1,854.74 (incl. GST)
POSMarket SKU: Z14160

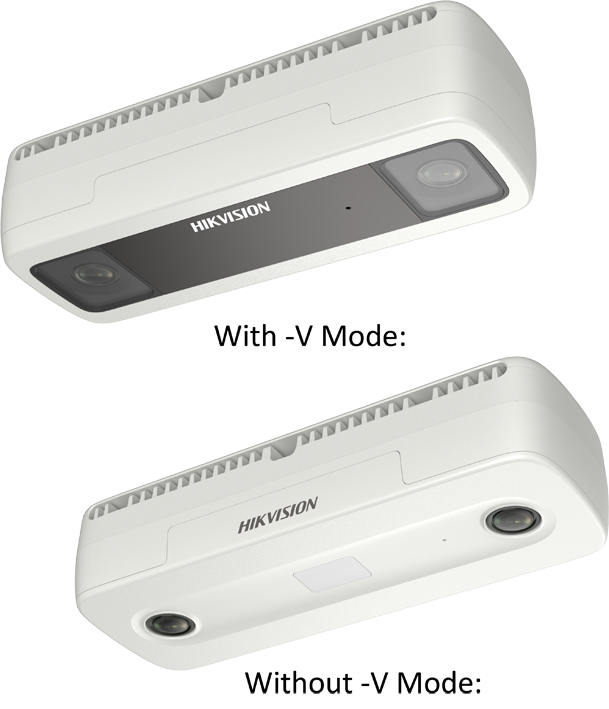

DS-2CD6825G0/C-IVS: 2MP Outdoor People Counting Camera, Dual Lens, IR, PoE, IP67, 2mm
Dual-Lens People Counting Network Camera
Product Overview
Hikvision's DS-2CD6825G0/C-IVS outdoor camera can accurately count people, keep track of occupancy or measure the distance between people by using dual-lens 3D vision with deep learning analytics.
Features
Features
- People Counting for Business Intelligence
- Social Distance Measurement for Safety (Requires loading Social Distance firmware)
- Social Density Tracking for Safety Social Density Tracking for Safety (Requires loading Social Distance firmware)
- Minimum Illumination Color: 0.0176 lux @ ƒ/2.25, B/W: 0 lux with IR
- Main Stream: 30 fps (1920 x 1080, 1280 x 720)
- 12 VDC, PoE (802.3af), 8.3 W Max.
Product Specifications
| CAMERA | |
| Image Sensor | 1/1.2.7" Progressive Scan CMOS |
| Min. Illumination | |
| Color: | 0.005 Lux @ (F1.2, AGC ON), 0.0176 Lux @ (F2.25, AGC ON) |
| B/W: | 0.001 Lux @ (F1.2, AGC ON), 0.0035 Lux @ (F2.2.5, AGC ON) |
| Shutter Speed | 1/25 s to 1/100,000 s |
| Day & Night | IR Cut Filter |
| WDR Digital | WDR |
| LENS | |
| Focal Length | 2 mm fixed lens |
| Aperture | F2.25 |
| FOV Horizontal | FOV 104.5°, vertical FOV 70.5°, diagonal FOV 112° |
| Lens Mount | M12 |
| IR | |
| IR Range | Up to 6 m IR range |
| Wavelength | 850 nm |
| VIDEO | |
| Max. Resolution | 1920 x 1080 |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (704 × 576, 640 × 480) ; 60Hz: 30fps (704 × 480, 640 × 480) |
| COMPRESSION STANDARD | |
| Main stream: | H.265+/H.265/H.264+/H.264 |
| Sub stream: | H.265/H.264/MJPEG |
| H.264 Type | BaseLine Profile/Main Profile/High Profile |
| H.264+ | Main stream supports |
| H.265 Type | Main Profile |
| H.265+ | Main stream supports |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| SVC | H.265 and H.264 support |
| AUDIO | |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8kHz/16kHz/32kHz/44.1kHz/48kHz |
| SMART FEATURE SET | |
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| People Counting | Counts people entering and exiting separately; Supports real-time uploading and uploading by statistic cycle; Sends email reports on daily, weekly, monthly or annually basis; Supports target filtering by height |
| Linkage Method | Upload to FTP/NAS, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture |
| Region of Interest | 4 fixed regions for main stream and sub-stream |
| APPROVAL | |
| EMC | 47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015 |
| Safety | UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015 |
| Environment | 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006 |
| Protection | With -V model: IP67 (IEC 60529-2013)5 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015 Environment 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006 Protection With -V model: IP67 (IEC 60529-2013) |
