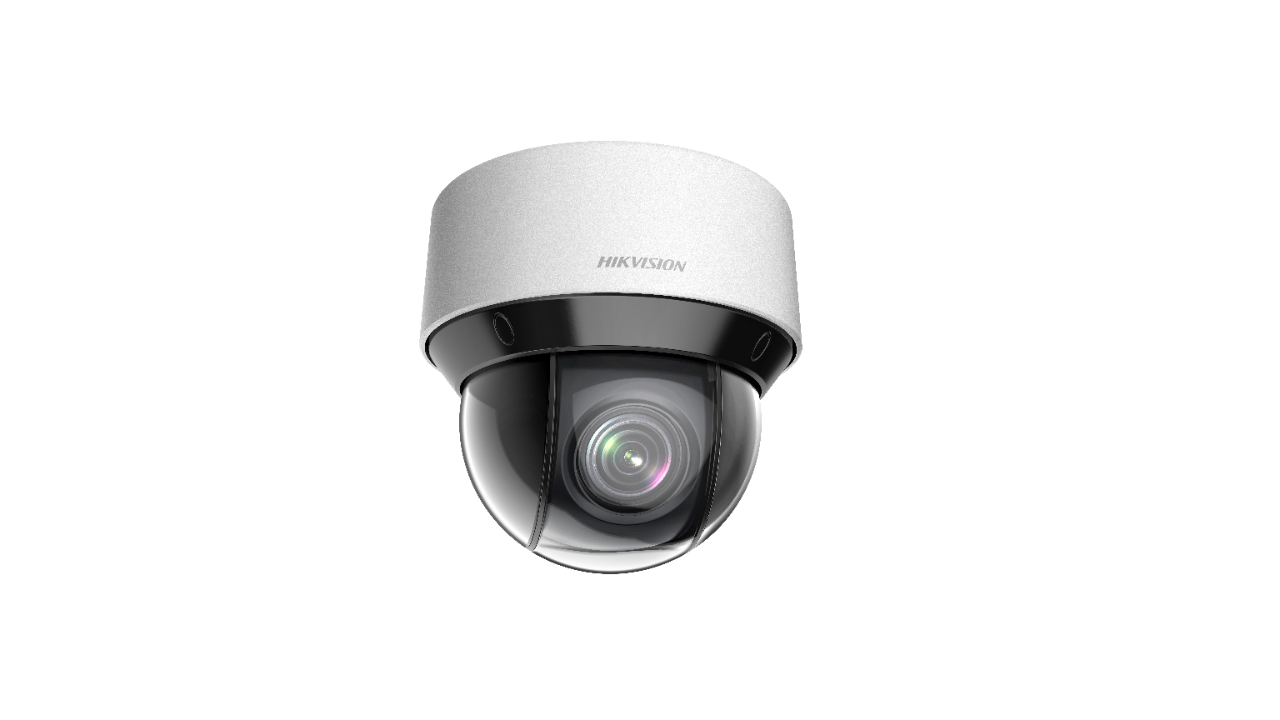

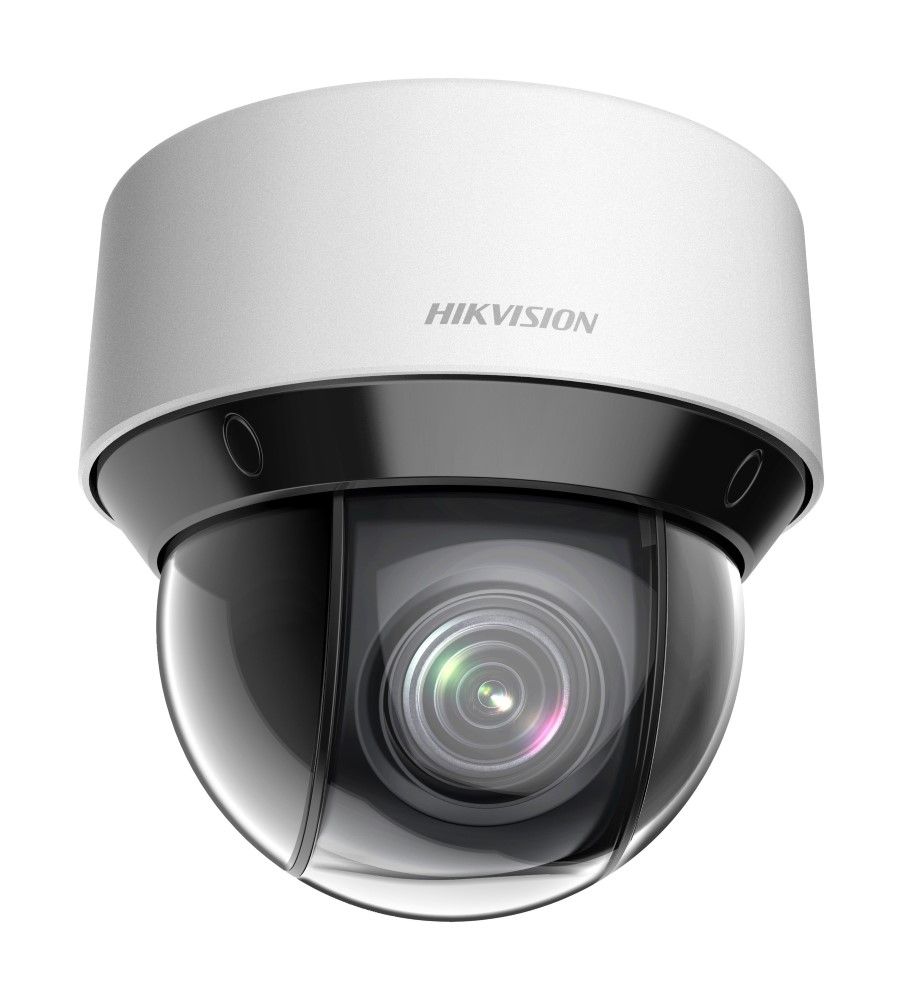

Hikvision DS-2DE4A404IW-DE
POSMarket SKU: Z14144
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.
4MP Darkfighter PTZ Camera, 4x Optical Zoom
Product Overview
Features
- 1/1.9" progressive scan CMOS
- Up to 2560 x 1440 at 30fps resolution
- Min. illumination: Colour: 0.002 lux, B/W: 0.0002 lux
- 4x Optical zoom, 16x digital zoom
- Pan - 360 degrees endless
- Tilt - From -5 degrees to 90 degrees (auto-flip)
- Preset, pattern scan, patrol scan
- Supports H.265+/H.265 video compression
- DWDR, 3D DNR, HLC, distance
- 12VDC & PoE+ (802.3 at, class4)
- Up to 50m IR
- Surface mount
- IP66 rated
Product Specifications
| CAMERA MODULE | |
| Image Sensor | 1/1.9" progressive scan CMOS |
| Min. Illumination | |
| Color: | 0.002 Lux @(F1.6, AGC ON) |
| B/W: | 0.0002Lux @(F1.6, AGC ON) 0 Lux with IR |
| White Balance | Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent |
| Lamp/Sodium | Lamp |
| Gain | Auto/Manual |
| Shutter Time | |
| 50Hz: | 1/1 s to 1/30,000 s |
| 60Hz: | 1/1 s to 1/30,000 s |
| Day & Night | IR Cut Filter |
| Digital Zoom | 16x |
| Privacy Mask | 24 programmable privacy masks |
| Focus Mode | Auto/Semi-automatic/Manual |
| WDR Digital | WDR |
| LENS | |
| Focal Length | 2.8 mm to 12 mm, 4x optical zoom |
| Zoom Speed | Approx. 2.2 s (optical lens, wide-tele) |
| Field of View | |
| Horizontal field of view: | 69.5° to 26.48°(Wide-Tele) |
| Vertical field of view: | 38° to 14.94° (Wide-Tele) |
| Diagonal field of view: | 81.2° to 20.38° (Wide-Tele) |
| Working Distance | 10 mm to 1500 mm (wide-tele) |
| Aperture Range | F1.5 to F2.8 |
| IR | |
| IR Distance | 50 m |
| Smart | IR Support |
| PTZ | |
| Movement Range | (Pan) 360° endless |
| Pan Speed | Configurable, from 0.1°/s to 300°/s. Preset speed: 350°s |
| Movement Range | (Tilt) From -5° to 90°(auto-flip) |
| Tilt Speed | Configurable, from 0.1°/s to 160°/s. Preset Speed: 200°/s |
| Proportional Zoom | Support |
| Presets | 300 |
| Patrol | Scan 8 patrols, up to 32 presets for each patrol |
| Pattern | Scan 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory | Support |
| Park Action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| 3D Positioning | Support |
| PTZ Position Display | Support |
| Preset Freezing | Support |
| Scheduled Task | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output |
| GENERAL | |
| Power | 12 VDC and PoE+ (802.3at, class4) |
| Max.: | 18 W (5.5 W for IR) |
| Working Temperature Outdoor: | -30°C to 65°C (-22°F to 149°F) |
| Working Humidity | ≤ 90% |
| Protection Leve | l IP66 Standard; TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Material A | luminum Alloy |
| Dimensions | Φ 169 mm × 161 mm (Φ 6.65" × 6.34") |
| Weight Approx. | 2.45 kg (5.40 lb) |
