Hikvision DS-2DE4A425IW-DE

POSMarket SKU: Z14110

This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.

4MP Outdoor PTZ Camera, 25x Zoom, H.265.

Product Overview

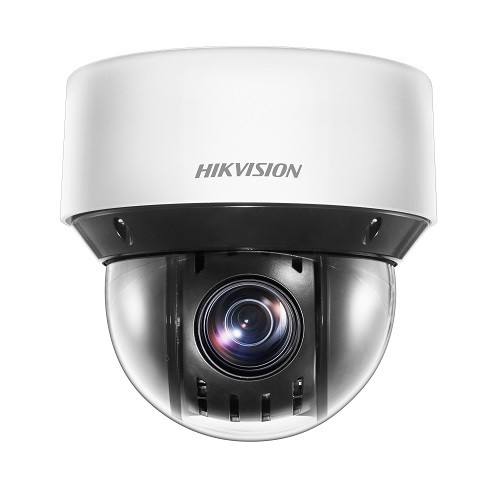

Part of Hikvision's E PTZ series, the DS-2DE4A425IW-DE or HIK-2DE4A425IWDE is an outdoor surface mounted PTZ with 25x optical zoom. The Hikvision E series combines a host of features in a relatively compact size PTZ. It can capture high quality 4MP images efficiently with H.265 or H.265+ compression technology and with a 360 degree endless pan range and a -15 to 90 degree tilt range, this versatile and affordable PTZ dome camera is ideal for monitoring expansive areas whilst also allowing the user to focus in on specific details for further forensic needs.

Hikvision DS-2DE4A425IW-DE Network IR PTZ Cameras produce images with a resolution of up to 2,560 x 1,440 pixels. The embedded 1/2.5" progressive scan CMOS chip supports Digital WDR, and the 25x optical zoom allows for greater detail to be collected over more expansive areas.

Features
  • Minimum Illumination: Color: 0.005 Lux @ (F1.6, AGC ON) B/W: 0.001 Lux @ (F1.6, AGC ON) 0 Lux with IR
  • Up to 2,560 x 1,440 Resolution
  • Main stream: H.265+ / H.265 / H.264+ / H.264; sub-stream: H.265 / H.264 / MJPEG; third stream: H.265 / H.264 / MJPEG
  • Main Stream: 50 Hz: 25 fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720), 50 fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • IR Distance: 165 ft (50 m)
  • 12 VDC/PoE+, 18 W

Product Specifications

CAMERA MODULE
Image Sensor 1/2.5" progressive scan CMOS
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 Lux with IR
White Balance Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent
Lamp/Sodium Lamp
AGC Auto/Manual
Shutter Time 1/1 s to 1/30,000 s
Day & Night IR Cut Filter
Digital Zoom 16x
Privacy Mask 24 programmable privacy masks
Focus Mode Auto/Semi-automatic/Manual
WDR 120 dB WDR
LENS
Focal Length 4.8 mm to 120 mm, 25x optical
Zoom Speed Approx. 3.2 s (optical lens, wide-tele)
FOV
Horizontal field of view: 57.6°to 2.5°(wide-tele)
Vertical field of view: 34.4°to 1.4°(wide-tele)
Diagonal field of view: 64.5°to 2.9°(wide-tele)
Working Distance 10 mm to 1500 mm (wide-tele)
Aperture Range F1.6 to F3.5
IR
IR Distance 50 m
Smart IR Support
PTZ
Movement Range (Pan) 360° endless
Pan Speed Configurable, from 0.1°/s to 300°/s
Preset Speed: 350°/s
Movement Range (Tilt) From -5° to 90°(auto-flip)
Tilt Speed Configurable, from 0.1°/s to 160°/s
Preset Speed: 200°/s
Proportional Zoom Support
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory Support
Park Action Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame, Scan/Panorama Scan
PTZ Position Display Support
Preset Freezing Support
Scheduled Task Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame, Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
GENERAL
Power 12 VDC & PoE+ (802.3 at, class4), Max.:18 W (IR Max.5 W)
Working Temperature -30°C to 65°C (-22°F to 149°F)
Working Humidity ≤ 90%
Protection Level IP66 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material ADC12, PC, PC+ABS, SUS304, POM
Dimensions Φ 169 mm × 161 mm (Φ 6.65" x 6.34")
Weight Approx. 2.45 kg (5.40 lb)
