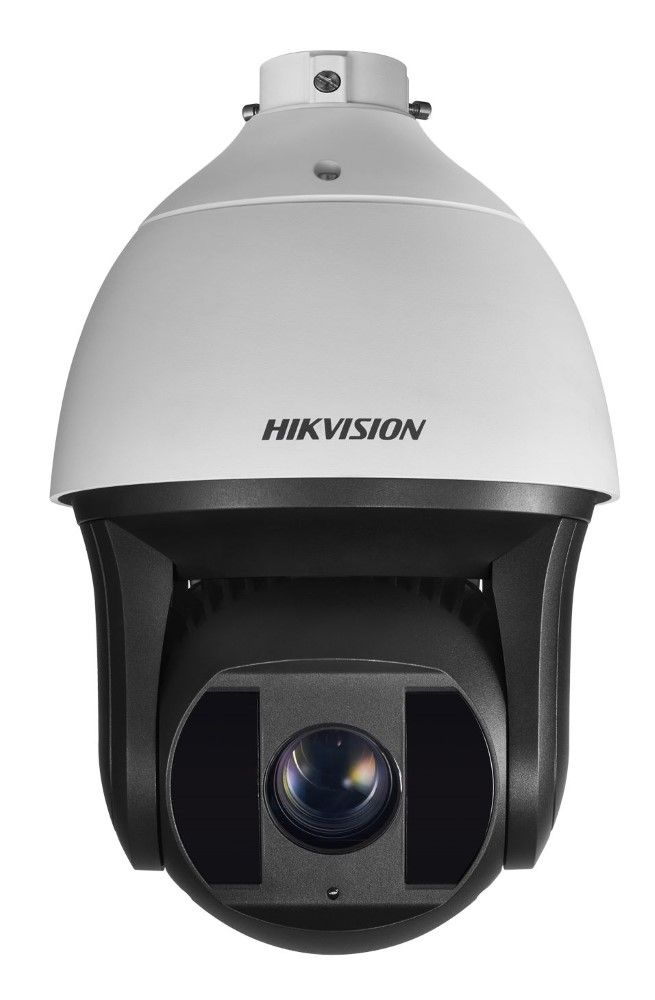

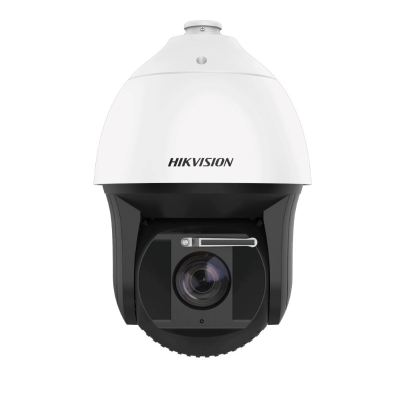

Hikvision DS-2DF8225IX-AELW
from $3,330.25 (incl. GST)
POSMarket SKU: Z14142
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.
2MP Outdoor Darkfighter PTZ Camera, 25x Zoom
Product Overview
Part of Hikvision Pro PTZ Series, the DS-2DF8225IX-AEL(W) or HIK-2DF8225IXELW is an outdoor Darkfighter PTZ with 25x optical zoom, a built-in wiper and infrared for visibility at night (up to 200m). The Hikvision Pro series features cutting edge technologies such as Deep-learning-based target classification algorithms, Rapid Focus and Auto-tracking 2.0 and can capture high quality 2MP images efficiently with H.265 or H.265+ compression technology. Powered by Hikvision's Darkfighter technology which can capture crystal clear colour image in ultra-low light conditions and with a 360 degree endless pan range and a -20 to 90 degree tilt range, this versatile and full-featured PTZ dome camera is ideal for monitoring expansive areas whilst also allowing the user to focus in on specific details for further forensic needs.
Features
Features
- 1/1.9" progressive scan CMOS
- Up to 1920x1080 at 60fps resolution
- Min. illumination: Colour: 0.002 Lux, B/W: 0.0002 Lux
- 25x optical zoom, 16x digital zoom
- Pan: 360 deg, Tilt: -20 deg to 90 deg (auto-flip)
- Preset, pattern scan, patrol scan
- Supports H.265+ and H.265 video compression
- 120dB WDR, 3D DNR, HLC, BLC, defog, EIS
- Deep-learning-based target classification algorithm
- Rapid focus, Auto-tracking 2.0
- Up to 200m IR
- 24VAC & Hi-PoE
- IP67 & IK10 rated
- Built-in wiper
Product Specifications
| CAMERA MODULE | |
| Image Sensor | 1/1.8" progressive scan CMOS |
| Min. Illumination | |
| Color: | 0.002 Lux @(F1.5, AGC ON) |
| B/W: | 0.0002 Lux @(F1.5, AGC ON) 0 Lux with IR |
| Shutter Time | 1/1 s to 1/30,000 s |
| White Balance | Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent |
| Lamp/Sodium | Lamp |
| AGC | Auto/Manual |
| Day & Night | IR cut filter |
| Digital Zoom | 16x |
| Privacy Mask | 24 programmable polygon privacy masks, mask color or mosaic configurable |
| Focus Mode | Auto/Semi-automatic/Manual |
| 3D DNR | Yes |
| BLC | Yes |
| HLC | Yes |
| WDR | 120dB |
| Optical Defog | Yes |
| EIS | Yes |
| Regional Exposure | Yes |
| Regional Focus | Yes |
| Rapid Focus | Yes |
| LENS | |
| Focal Length | 5.7 mm to 142.5 mm, 25x Optical |
| Zoom Speed | Approx. 3.7 s (optical lens, wide-tele) |
| Field of View | |
| Horizontal field of view: | 59.8° to 2.8° (wide-tele) |
| Vertical field of view: | 33.6° to 1.6° (wide-tele) |
| Diagonal field of view: | 68.6° to 3.2° (wide-tele) |
| Working Distance | 10 mm to 1500 mm (wide-tele) |
| Aperture Range | F1.5 to F3.4 |
| PTZ | |
| Movement Range | (Pan) 36° endless |
| Pan Speed | Configurable, from 0.°/s to 210°/s, Preset Speed: 280°/s |
| Movement Range | (Tilt) From -20° to 90° |
| Tilt Speed | Configurable, from 0.1°/s to 150°/s, Preset Speed: 250°/s |
| Proportional Zoom | Yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory: | Yes |
| Park Action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| PTZ Status Display | Yes |
| Preset Freezing | Yes |
| Scheduled Task | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output |
| Alarm Interface | 7-ch alarm input/2-ch alarm output |
| Audio Interface | 1-ch audio input, 2 to 2.4 V[p-p], 1 KΩ +/-10% 1-ch audio output, line level, impedance: 600 Ω |
| Alarm Linkage | Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc. |
| Network Interface | 1 RJ45 10 M/100 M Ethernet Interface; Hi-PoE |
| CVBS | Yes |
| RS-485 | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/CIFS), ANR |
| API ONVIF | (Profile S, Profile G, Profile T), ISAPI, SDK |
| Client | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect |
| Web Browser | IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+, Safari 11+ |
