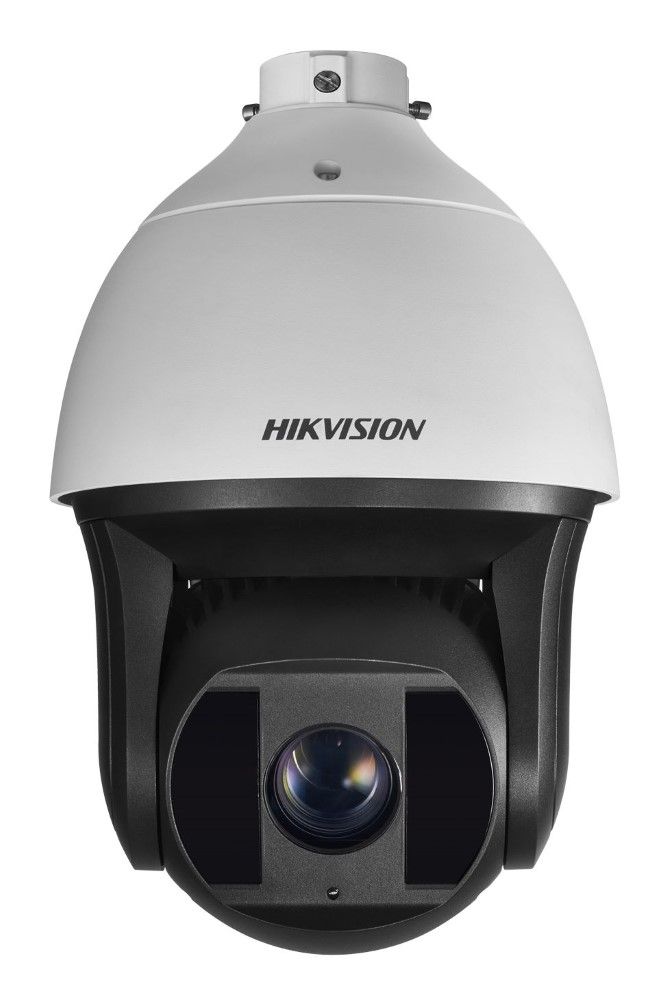

Hikvision DS-2DF8425IX-AELW
POSMarket SKU: Z14156
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.
4MP Outdoor Darkfighter PTZ Camera.
Product Overview
Features
- 1/1.8" progressive scan CMOS
- Up to 2592x1520 at 30fps resolution
- Min. illumination: Colour: 0.002 Lux, B/W: 0.0002 Lux,
- 25x optical zoom, 16x digital zoom
- Pan: 360 deg, Tilt: -20 deg to 90 deg (auto-flip)
- Preset, pattern scan, patrol scan
- Supports H.265+ and H.265 video compression
- 120dB WDR, 3D DNR, HLC, BLC, Defog, EIS
- Rapid focus, smart tracking
- Up to 200m IR
- 24VAC & Hi-PoE
- IP67 & IK10 rated
- DS-2DF8425IX-AELW - with Wiper
- DS-2DF8425IX-AEL - without Wiper
Product Specifications
| CAMERA MODULE | |
| Image Sensor | 1/1.8" progressive scan CMOS |
| Min. Illumination | |
| Color: | 0.002 Lux @(F1.5, AGC ON) |
| B/W: | 0.0002 Lux @(F1.5, AGC ON) 0 Lux with IR |
| Shutter Time | 1/1 s to 1/30,000 s |
| White Balance | Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent |
| Lamp/Sodium | Lamp |
| AGC | Auto/Manual |
| Day & Night | IR cut filter |
| Digital Zoom | 16x |
| Privacy Mask | 24 programmable polygon privacy masks |
| Focus Mode | Auto/Semi-automatic/Manual |
| 3D DNR | Support |
| BLC | Support |
| HLC | Support |
| WDR | 120 dB |
| Optical Defog | Support |
| EIS | Support |
| Regional Exposure | Support |
| Regional Focus | Support |
| Rapid Focus | Support |
| LENS | |
| Focal Length | 5.7 mm to 142.5 mm, 25x Optical |
| Zoom Speed A | pprox. 3.7s (optical lens, wide-tele) |
| Field of View | |
| Horizontal field of view: | 51.1° to 2.5° (wide-tele) |
| Vertical field of view: | 31.3° to 1.4° (wide-tele) |
| Diagonal field of view: | 58.0° to 2.8° (wide-tele) |
| Working Distance | 10 mm to 1500 mm (wide-tele) |
| Aperture Range | F1.5 to F3.5 |
| PTZ | |
| Movement Range | (Pan) 360° endless |
| Pan Speed | Configurable,from 0.1°/s to 210°/s, Preset Speed: 280°/s |
| Movement Range | (Tilt) From -20° to 90° |
| Tilt Speed | Configurable, from 0.1°/s to 150°/s, Preset Speed: 250°/s |
| Proportional Zoom | Support |
| Presets | 300 |
| Patrol | Scan 8 patrols, up to 32 presets for each patrol |
| Pattern | Scan 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory: | Support |
| Park Action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| PTZ Status Display | Support |
| Preset Freezing | Support |
| Scheduled Task | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama; Scan/Dome Reboot/Dome Adjust/Aux Output General |
| Power | 24 VAC (Max. 60 W) Hi-PoE (Max. 50 W) |
| Working Temperature Outdoor: | -40°C to 70°C (-40°F to 158°F) |
| Working Humidity | ≤ 90% |
| Protection Level | IP67 Standard, IK10 (only supported by camera without wiper), TVS 6,000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Dimensions | Φ 266.6 mm × 410 mm (Φ 10.50" × 16.14") |
